I need to know if anyone knows of a company who can do a short run of special Model T dust pan to frame bolts. These were used on the early cars in the teens. The part number is 3088, and is 1/4-28 X 9/16. The head and nut are 3/8 square, and there is a cotterpin hole at the bottom. I don't believe anyone is reproducing this part.
Re: Bolts
Posted: Mon Nov 04, 2024 2:56 pm
by Jerry VanOoteghem
Original Smith wrote: ↑Mon Nov 04, 2024 2:32 pm
I need to know if anyone knows of a company who can do a short run of special Model T dust pan to frame bolts. These were used on the early cars in the teens. The part number is 3088, and is 1/4-28 X 9/16. The head and nut are 3/8 square, and there is a cotterpin hole at the bottom. I don't believe anyone is reproducing this part.
Larry,
What quantity is a "short run"?
Re: Bolts
Posted: Tue Nov 05, 2024 11:01 am
by Jerry VanOoteghem
Are you interested in having these made or not? How many do you want?
Re: Bolts
Posted: Tue Nov 05, 2024 11:34 am
by Original Smith
I'm not really sure what a short run is, but I am guessing 100-200. The other thing is I'm also not sure how late they used these bolts. They have a 3/8 square head and nut, and the bolt has a hole for a cotter pin.
Re: Bolts
Posted: Tue Nov 05, 2024 12:11 pm
by Jerry VanOoteghem
Yes, that probably constitutes a short run. But it's more than I would consider making myself, which is what I was considering doing.
(I'm still looking into a couple of possibilities though.)
Re: Bolts
Posted: Wed Nov 06, 2024 10:52 am
by Jerry VanOoteghem
Original Smith wrote: ↑Tue Nov 05, 2024 11:34 am
I'm not really sure what a short run is, but I am guessing 100-200. The other thing is I'm also not sure how late they used these bolts. They have a 3/8 square head and nut, and the bolt has a hole for a cotter pin.
Larry,

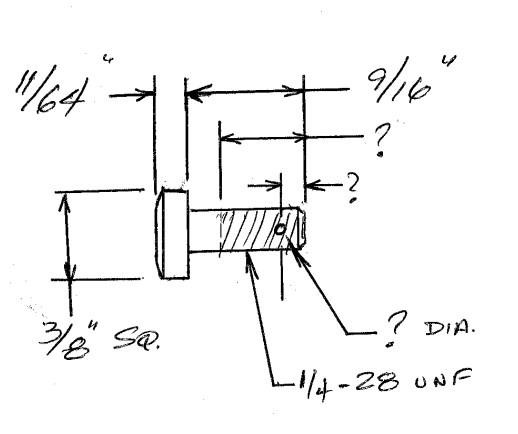

Please fill in the missing dimensions and have a look at the dimensions I've shown. The heads will be a nominal 3/8", meaning they will be slightly undersized, per industry standards.
- 1.png (40.8 KiB) Viewed 9034 times
Re: Bolts
Posted: Wed Nov 06, 2024 12:43 pm
by Original Smith
I am getting an original today, and will be able to supply the needed dimensions. I have some on my cars, but don't feel like removing them. Thanks for all the help!
Re: Bolts
Posted: Wed Nov 06, 2024 5:44 pm
by Original Smith
Thread length 7/16" , Cotter pin hole 5/64"
Re: Bolts
Posted: Wed Nov 06, 2024 5:46 pm
by Original Smith
Bottom of bolt to center of cotter pin hole 3/32"
Re: Bolts
Posted: Wed Nov 06, 2024 5:49 pm
by Original Smith
Does anyone have information as to when they stopped offering this part?
Let me know how much $ for 100, and how much for 200?
Re: Bolts
Posted: Thu Nov 07, 2024 10:47 am
by Original Smith
Here is the nut details. 3/8 across the flats, a slight chamfer on one side like most square nuts. The thickness is .187".
Re: Bolts
Posted: Thu Nov 07, 2024 10:49 am
by Original Smith
I was hoping to be able to insert the details you need on your sketch, but don't know how to do that. So, I hope you now have what you need.
Re: Bolts
Posted: Thu Nov 07, 2024 11:45 am
by Jerry VanOoteghem
Original Smith wrote: ↑Thu Nov 07, 2024 10:49 am
I was hoping to be able to insert the details you need on your sketch, but don't know how to do that. So, I hope you now have what you need.
Larry,
Yes, those are the dimensions I needed. Thanks. I'll let you know how it goes.
