Good Afternoon1
I am working on a '16 touring car. Frame off. I cannot find info on the reassembly. When I lifted the body off of the frame I found 1/4 inch rubber pads at the bolt sites. My main question is do the splash shields mount between the body and frame without the rubber pads?
Are the rubber pads on top of the frame or between the body and the splash shields?
Thanks,
Campbell Tellman II
Beaufort, NC
Splash Shields
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Campbell Tellman
Topic author - Posts: 62
- Joined: Mon Oct 11, 2021 9:28 am
- First Name: Campbell
- Last Name: Tellman
- * REQUIRED* Type and Year of Model Ts owned: 1916 Ford Touring
- Location: Beaufort, NC
-
Mark Gregush
- Posts: 5456
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Splash Shields
Neater above or below. There were no pads used on T's. Someone may have added to level the body out so you might want to check the frame rails for sag. If you did want to add them, I would suggest on top of the running board aprons, so the body sits on them.
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
Original Smith
- Posts: 3843
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: Splash Shields
It's really good to see someone calling splash shields by the proper name!
-
TRDxB2
- Posts: 6468
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: Splash Shields

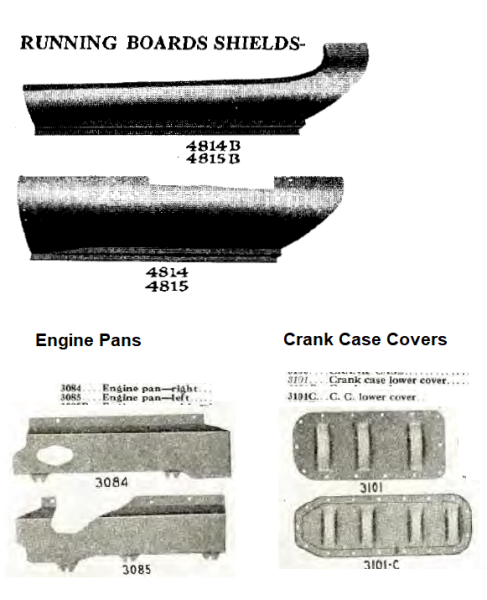

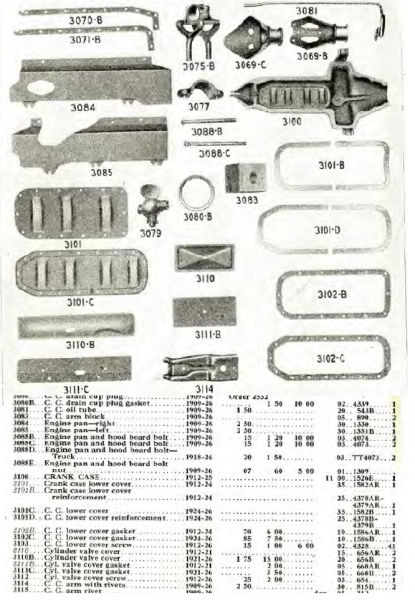

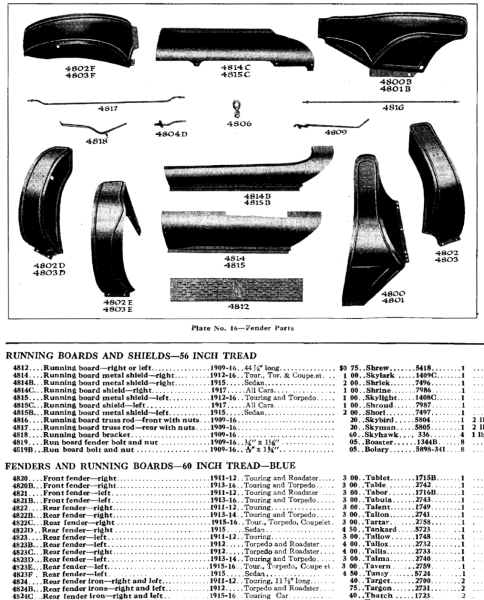

From Ford Parts Manuals - no reference to "splash shields" or 3 or 4 dip pans
--
--
--
--
Last edited by TRDxB2 on Sun Nov 16, 2025 2:27 pm, edited 1 time in total.
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Mick Jagger
-
jiminbartow
- Posts: 2460
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: Splash Shields
While rubber washers at these points were not original, someone in the past probably installed rubber washers at each bolt hole to try and silence vibration noise wherever metal to metal contact occurs. The theory is sound but rubber washers would have a tendency to keep the fasteners from being tightened as much as necessary and eventually start to come loose. Not good.
