Unknown Part - 1924
Posted: Wed Feb 10, 2021 4:35 pm
by SurveyKing
In going through labeled bolts/nuts from the disassembly of my 1924 Touring, I cannot seem to recall where this part came from. It was in a bag of bolts marked Cowl/Dash. The piece is steel and measures 1 1/2" by 1/2" by 1/4" thick and is threaded to accept the threads on the screw shown. Can someone identify this for me? Thanks
Re: Unknown Part - 1924
Posted: Wed Feb 10, 2021 5:31 pm
by Rich Eagle
How about a windshield stanchion screw (to dash) and a bar to hold it? The lower screw would use a nut but the upper is difficult to put a nut on.
Re: Unknown Part - 1924
Posted: Wed Feb 10, 2021 5:37 pm
by CudaMan
Richard is correct. On my '24, both screws had a nut plate like that and the plates were a different length (I put the long one on top).
Re: Unknown Part - 1924
Posted: Wed Feb 10, 2021 8:57 pm
by SurveyKing
So are there supposed to be two, one for each stanchion?
Re: Unknown Part - 1924
Posted: Wed Feb 10, 2021 9:54 pm
by DanTreace
Yes, one for each side of the stanchion to dash panel, on the lower machine screw. The gap at the dash is very tight and a wrench cannot be used, so that long length nut is a 'jam' and 'spacer' nut, (Part # 1307RX. {23-25}), fits into the gap and resists moving as you tighten the oval head screw.
The upper screw can use a normal nut as a wrench can fit there with ease.

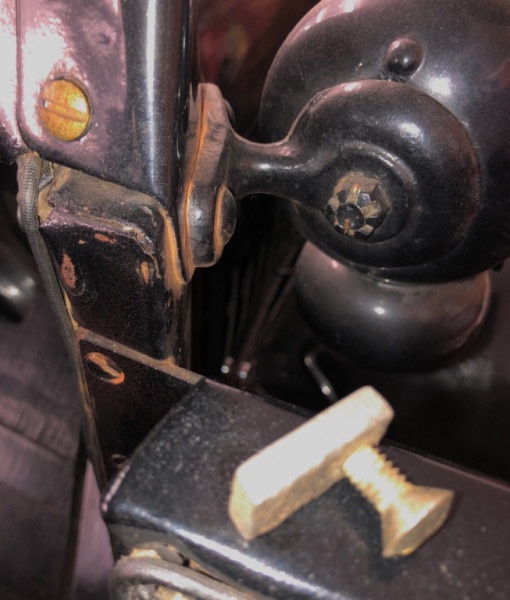

- long bar nut.jpg (84.36 KiB) Viewed 3303 times

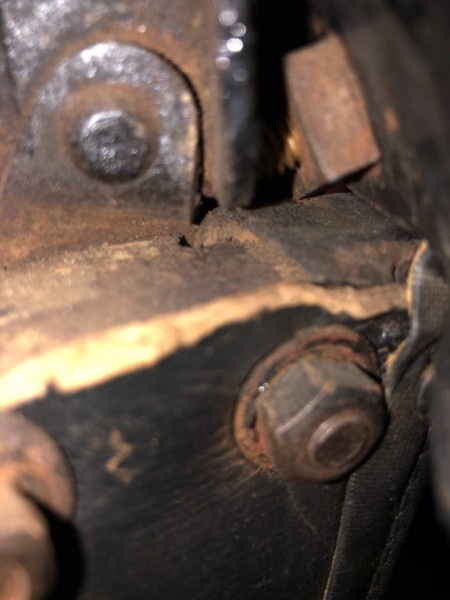

- special lower nut in place.jpg (62.5 KiB) Viewed 3303 times

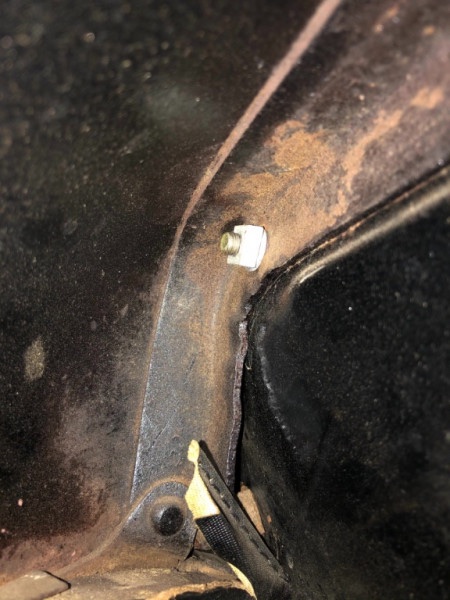

- upper nut on stanchion.jpg (94.76 KiB) Viewed 3303 times
Re: Unknown Part - 1924
Posted: Thu Feb 11, 2021 3:18 pm
by Original Smith
As I recall, those are for the dash. The short one on the bottom, and the long one on top. They are not for the windshield posts.
Re: Unknown Part - 1924
Posted: Thu Feb 11, 2021 3:31 pm
by Original Smith
I'll eat my words. They are more the the dash, however they do attach to to the windshield posts. I should have thought about this more before I posted. The short one on the bottom, the long one on top.
Re: Unknown Part - 1924
Posted: Thu Feb 11, 2021 5:41 pm
by SurveyKing
Original, are there two for each windshield stanchion? One short and one long?
Re: Unknown Part - 1924
Posted: Fri Feb 12, 2021 10:30 am
by Original Smith
yup. Here is a pair of NOS nuts that I have.
Re: Unknown Part - 1924
Posted: Fri Feb 12, 2021 4:49 pm
by SurveyKing
Would you care to sell them to me Original Smith?
Re: Unknown Part - 1924
Posted: Sat Feb 13, 2021 10:10 am
by Original Smith
I don't have time to go through all the boxes of NOS parts I have! All you need is a sample of each. They would be quite easy to make.
Re: Unknown Part - 1924
Posted: Sat Feb 13, 2021 10:30 am
by SurveyKing
Ten Four, thanks
Re: Unknown Part - 1924
Posted: Mon Feb 15, 2021 3:57 pm
by Original Smith
Here are the dimensions of the last two NOS nuts I have. They can be easily made.
Long: 1 1/2" X 7/16" X 1/4". Short 1" X 7/16" X 1/4". Both are threaded 1/4-20. Oval head slotted screws are used.
