26/27 wiring
Posted: Mon Mar 01, 2021 1:35 pm
by dmdeaton

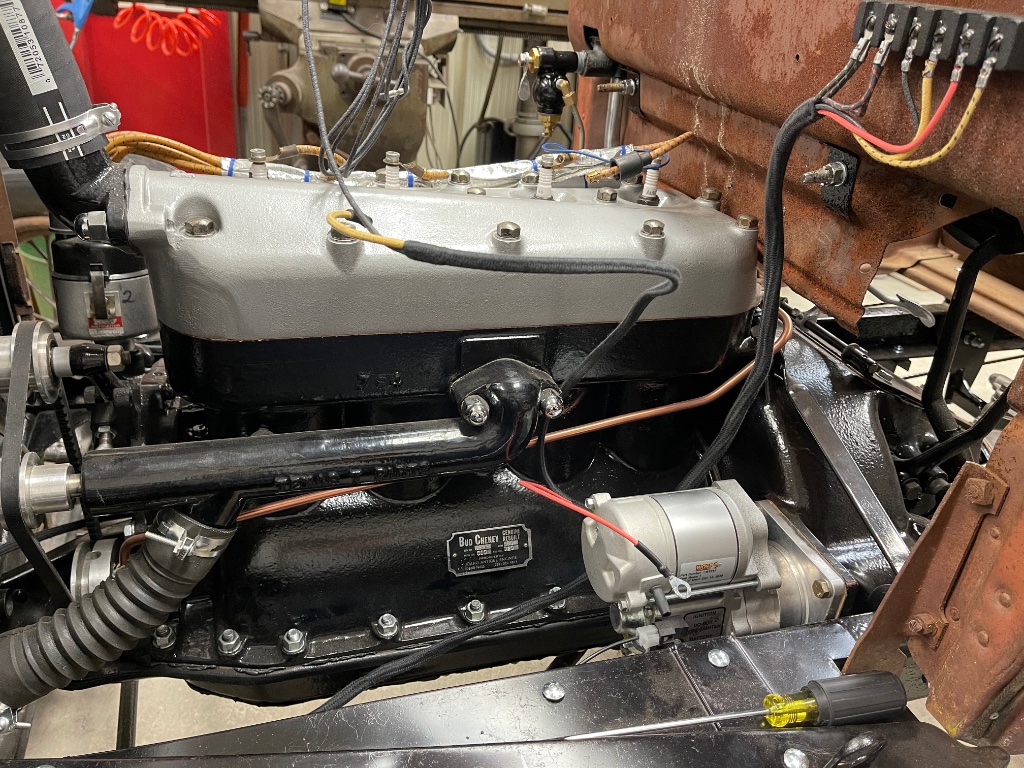

Starting to pull wires on this beast and have a few questions. I have no problem landing all the wires as I have 40 years as a control electrical engineer. I am trying to find pictures of how the wires are run. This is no where near original so I am not being anal. But want to stay somewhere between the lines.
Headlight harness run down the side of block or tuck into the frame channel?
Re: 26/27 wiring
Posted: Mon Mar 01, 2021 2:08 pm
by Dallas Landers
If memory serves, along the hoodshelf. Havnt looked in a while.
Re: 26/27 wiring
Posted: Mon Mar 01, 2021 2:28 pm
by dmdeaton
A little research and I found I landed the harness backwards. Headlights go on the last 2 terms on the right. That routes them right according to harness length and what Dallas said. Just need some pics of clamps. Or should I use wire ties?
Re: 26/27 wiring
Posted: Mon Mar 01, 2021 2:40 pm
by TRDxB2
Re: 26/27 wiring
Posted: Mon Mar 01, 2021 3:25 pm
by DanTreace
Factory used clips on the upper frame rail, two-part clip. Bolts and nuts hold them to holes in the frame rail, they jut out from the hood aprons.
Clips too on the fire wall.
- 100_7944.jpg (161.43 KiB) Viewed 1407 times
Re: 26/27 wiring
Posted: Mon Mar 01, 2021 3:48 pm
by dmdeaton
thanks guys, perfect. Another vendor order for some clips and clamps
