Another question re: removing a 27 engine

Post by rgould1910 » Wed Mar 13, 2019 1:18 pm

One more thing. My 27 has the headlight bar. I really don't want to remove it because to do so will break the paint on the bolt heads and possibly the fenders. I can't see how I can remove the engine trans assembly without removing the bar. Am I correct on this??


Chris Barker
Posts: 100
Joined: Sun Jan 06, 2019 5:08 pm
First Name: Chris
Last Name: Barker
Location: Somerset, Eng;and

Re: Another question re: removing a 27 engine

Post by Chris Barker » Wed Mar 13, 2019 1:26 pm

I have a '27. I can't see how you can leave the headlamp bar in place - unless you lift off the whole body!
However, I don't see why the paint should suffer. The heads have square shafts beneath, so they should not turn. The nuts can be removed under the fenders, and then the bolts lift out.
I suggest you cut thick gaskets to fit beneath the bar ends above the fenders when you reassemble it. Other wise the bar could crack off the fender paint.

User avatar

George N Lake Ozark
Posts: 224
Joined: Sun Jan 06, 2019 2:15 pm
First Name: George P
Last Name: Clipner
Location: LakeOzark,Missourah
MTFCI Number: 18665

Re: Another question re: removing a 27 engine

Post by George N Lake Ozark » Wed Mar 13, 2019 1:58 pm

Just do it . I was concerned to but most fenders are prepainted before assembly . A little chipping on the bolt heads are normal and can be re painted.


Scottio
Posts: 109
Joined: Sun Jan 06, 2019 1:02 pm
First Name: Scott
Last Name: Lay
Location: California

Re: Another question re: removing a 27 engine

Post by Scottio » Wed Mar 13, 2019 2:35 pm

George N Lake Ozark wrote:
Wed Mar 13, 2019 1:58 pm
Just do it . I was concerned to but most fenders are prepainted before assembly . A little chipping on the bolt heads are normal and can be re painted.
X 2


Autie
Posts: 51
Joined: Mon Jan 07, 2019 12:27 am
First Name: Keith
Last Name: Keller
Location: Fowlerville, MI

Re: Another question re: removing a 27 engine

Post by Autie » Wed Mar 13, 2019 3:03 pm

Any time I don't want paint chipping, I take an X-Acto knife/razor and go around the edge of the part being removed.

User avatar

infotfordnl
Posts: 79
Joined: Tue Jan 15, 2019 2:11 am
First Name: Bert
Last Name: van Amstel
Location: Netherlands
Board Member Since: 2018
Contact:

Re: Another question re: removing a 27 engine

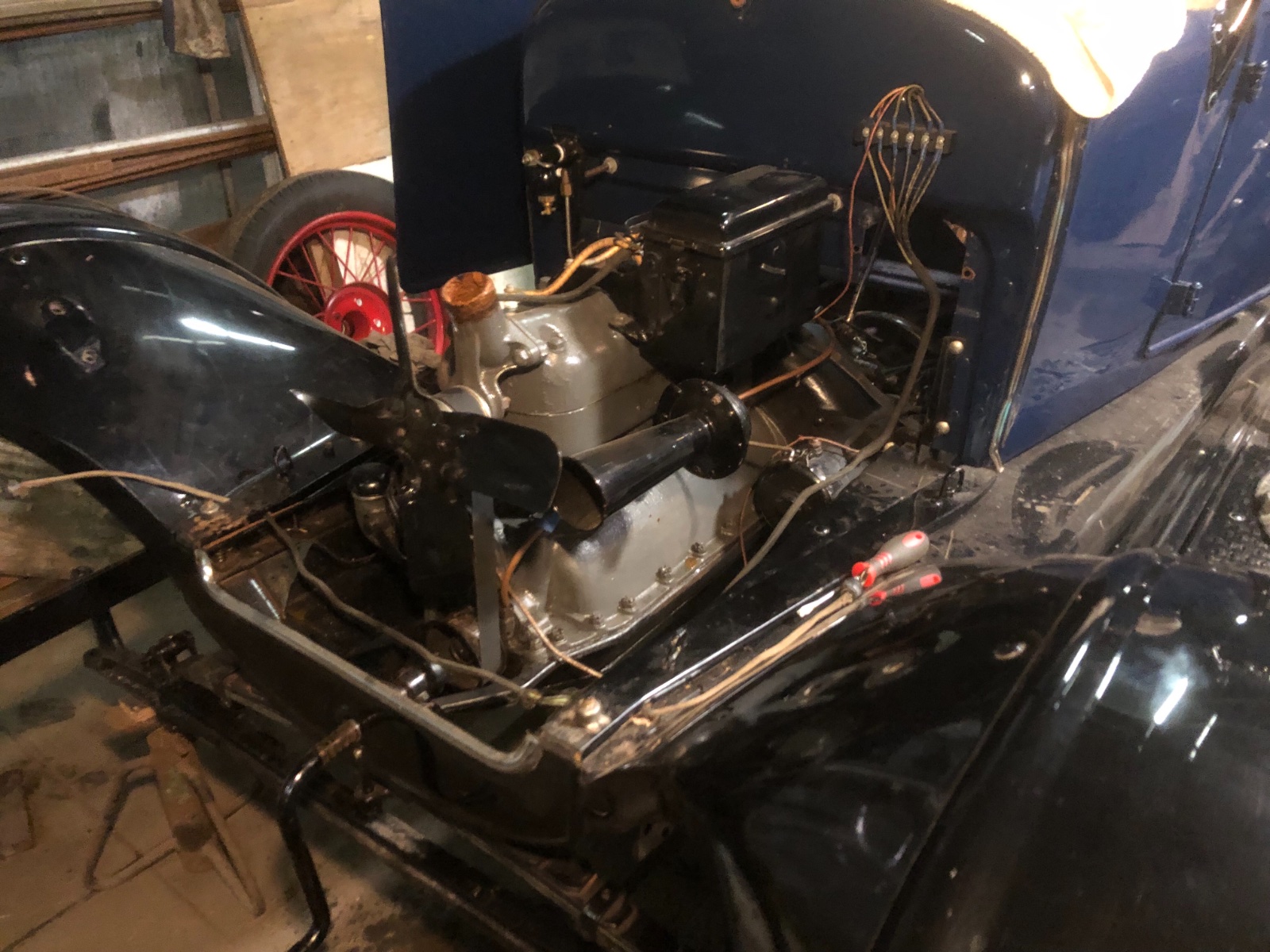

Post by infotfordnl » Thu Mar 14, 2019 6:40 pm

Its not possible without removing the lightbar
Because of the starter handle (in dutch “de slinger”)
After taking out the bar it is not a hard job to take out the engine
If you have an engine lifter..
Nice movie of this Model T: https://youtu.be/jD1QJBZasdY


Topic author
rgould1910
Posts: 311
Joined: Tue Jan 22, 2019 8:16 am
First Name: Richard
Last Name: Gould
Location: Folsom, CA

Re: Another question re: removing a 27 engine

Post by rgould1910 » Thu Mar 14, 2019 11:06 pm

Thanks for the help. The engine is out in the stand. I used an eye bolt in the second cylinder and a straight bar in place of the crank handle to tilt
the engine some to clear the pedals. It wasn't exactly an easy job but it is doable. Part of the difficulty was separating the Warford from the transmission. The light bar came out pretty easy and, as stated above, with only a little chipping of the bolt heads. Easy to repaint. Glad that part is over!
Never worked with a T with a starter/generator so I may have more questions.
