What is this?

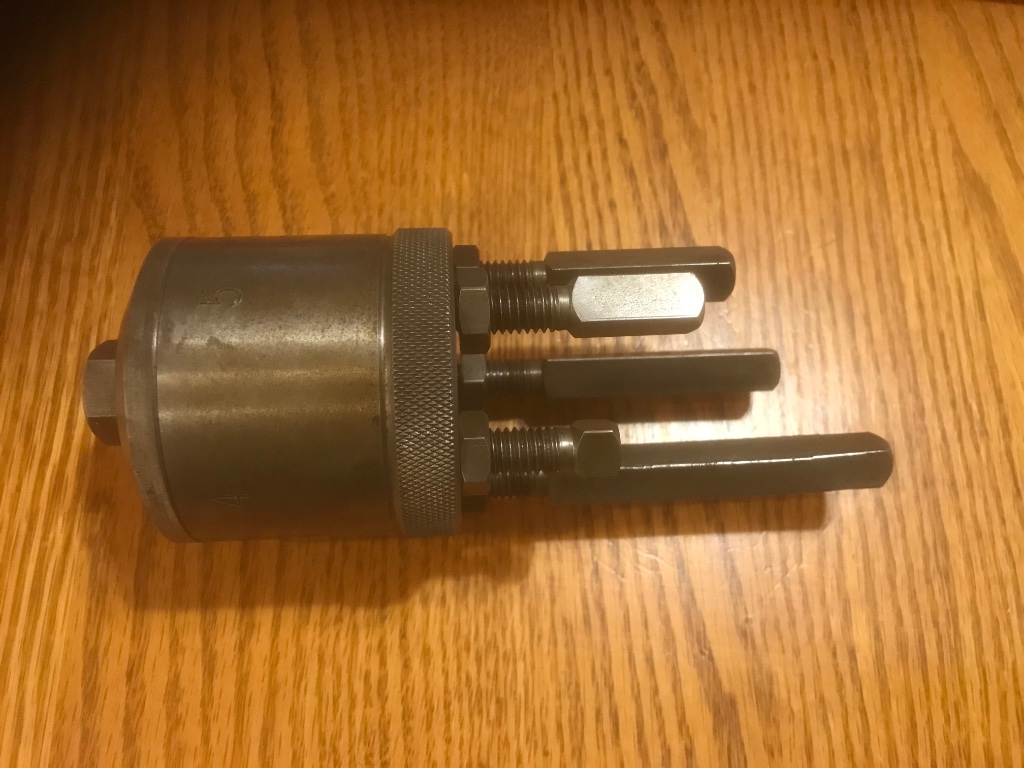

I inherited a 13" Clausing lathe from an uncle who was a machinist along with a lot of tooling but one thing in the pile has me stumped. I'm sure someone here can tell me what it is.
-
speedytinc
- Posts: 4727
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: What is this?
Looks like a lathe carriage stop, multi position by rotating.
-
Jerry VanOoteghem
- Posts: 4082
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
Re: What is this?
What he said...speedytinc wrote: ↑Tue Mar 14, 2023 5:11 pmLooks like a lathe carriage stop, multi position by rotating.
Used on turret lathes to set the stops for successive machining operations.
-
Russ T Fender
Topic author - Posts: 457
- Joined: Sun Jan 06, 2019 5:39 pm
- First Name: Val
- Last Name: Soupios
- * REQUIRED* Type and Year of Model Ts owned: '10 touring, '12 touring, '13 hack, '14 runabout, '14 touring, '14 speedster, '22 centerdoor, '27 touring
- Location: Jupiter Florida
Re: What is this?
Thanks, anyone need it? I don't have a turret lathe and probably wouldn't know how to use it if I did!
-
Scott_Conger
- Posts: 6523
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- * REQUIRED* Type and Year of Model Ts owned: 1919
- Location: not near anywhere, WY
- Board Member Since: 2005
Re: What is this?
Val
you absolutely DO need it. It is for a standard, manual lathe. It is a Turret Carriage stop and is used if you're going to turn different diameters on material, at different distances (lengths)...i.e. cut first diameter on the end as far in as you want...set first depth stop and then rotate out of the way...proceed to cut next diameter to the next depth and then set that depth stop, etc.
now you can make multiple parts all with the exact same length of cut for each diameter, without measuring the distance
figure out how it attaches to the front edge of your lathe, to the left of the carriage and keep it!
you absolutely DO need it. It is for a standard, manual lathe. It is a Turret Carriage stop and is used if you're going to turn different diameters on material, at different distances (lengths)...i.e. cut first diameter on the end as far in as you want...set first depth stop and then rotate out of the way...proceed to cut next diameter to the next depth and then set that depth stop, etc.
now you can make multiple parts all with the exact same length of cut for each diameter, without measuring the distance
figure out how it attaches to the front edge of your lathe, to the left of the carriage and keep it!
Scott Conger
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves™
Obsolete carburetor parts manufactured
-
Russ T Fender
Topic author - Posts: 457
- Joined: Sun Jan 06, 2019 5:39 pm
- First Name: Val
- Last Name: Soupios
- * REQUIRED* Type and Year of Model Ts owned: '10 touring, '12 touring, '13 hack, '14 runabout, '14 touring, '14 speedster, '22 centerdoor, '27 touring
- Location: Jupiter Florida
Re: What is this?
Thanks Scott. Now that you described it's use I can see how it works. I just need to figure out how to mount it.
-
Scott_Conger
- Posts: 6523
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- * REQUIRED* Type and Year of Model Ts owned: 1919
- Location: not near anywhere, WY
- Board Member Since: 2005
Re: What is this?
Normally, there is some sort of a "Vee" groove in the bottom and then a clamping plate dangling from the underside...that thing grabs the "Vee Way" on the top of the lathe and then clamps tightly. That way it can be slid to some relative (useful for that job) and clamped tightly.
show a picture of the underside of the thing and then a shot of the top of the lathe bed and someone will provide the answer (maybe even me!)
show a picture of the underside of the thing and then a shot of the top of the lathe bed and someone will provide the answer (maybe even me!)
