Windshield hardware
Getting ready to put the windshield together on my 26 Touring. Looking at a catalog there is no nut but when I got the bolts they came with a nut. Is this toe correct order minus the nut?

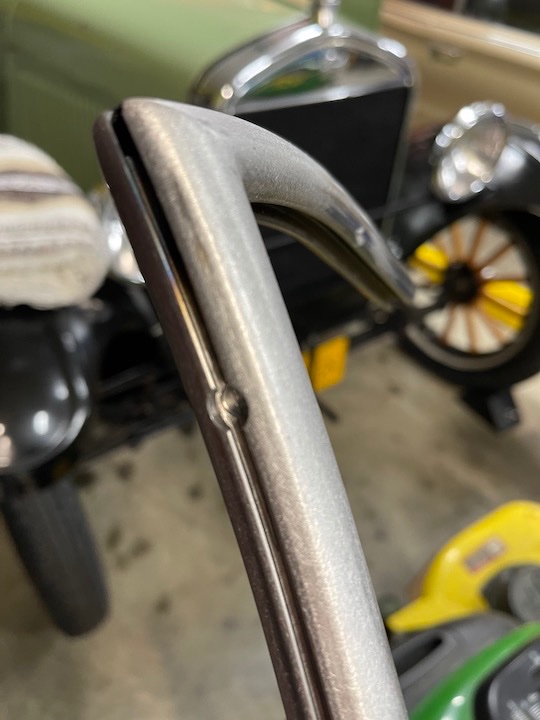

Also I thought this drilled area on the bottom of the frame (where the rubber goes) was just a manufacturing mark but now I've seen it on older (original?) frames.
Also I thought this drilled area on the bottom of the frame (where the rubber goes) was just a manufacturing mark but now I've seen it on older (original?) frames.
-
micshotrodgarage
- Posts: 73
- Joined: Mon Oct 31, 2022 10:41 am
- First Name: michael
- Last Name: miller
- * REQUIRED* Type and Year of Model Ts owned: 1926 & 27 Roadsters 1927 Roadster pickup
- Location: Paonia Colorado
Re: Windshield hardware
From an old Macs parts catalog illustration; the order you have excluding the nut is correct.
-
Mopar_man
Topic author - Posts: 1152
- Joined: Sat Jan 12, 2019 9:24 pm
- First Name: Robert
- Last Name: Govoni
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring
- Location: Fredericksburg, VA
- Board Member Since: 2016
Re: Windshield hardware
That's what I saw as well. I'm thinking the nut is for another application.
-
RajoRacer
- Posts: 5172
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Windshield hardware
That nut holds the cone to the stud, I believe.
-
RajoRacer
- Posts: 5172
- Joined: Sun Jan 06, 2019 12:18 pm
- First Name: Steve
- Last Name: Tomaso
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
- Location: Longbranch, WA
- Board Member Since: 2001
Re: Windshield hardware
I believe the stud screws into the frame followed by the cone, the nut & then the w.s. frame then the wingnut.
-
Jack Putnam, in Ohio
- Posts: 457
- Joined: Sun Jan 06, 2019 7:19 pm
- First Name: Jack
- Last Name: Putnam
- Location: Bluffton, Ohio
Re: Windshield hardware
That drilled area at the bottom of the frame is the starting point for inserting the windshield rubber.
-
NY John T
- Posts: 436
- Joined: Wed Nov 25, 2020 12:45 pm
- First Name: John
- Last Name: Killelea
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring, 1927 Tudor, 1925 Touring
- Location: Northport NY
- Board Member Since: 2020
Re: Windshield hardware
agree with Jack Putnam
-
Mopar_man
Topic author - Posts: 1152
- Joined: Sat Jan 12, 2019 9:24 pm
- First Name: Robert
- Last Name: Govoni
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring
- Location: Fredericksburg, VA
- Board Member Since: 2016
Re: Windshield hardware
Jack Putnam, in Ohio wrote: ↑Fri Jul 07, 2023 9:51 pmThat drilled area at the bottom of the frame is the starting point for inserting the windshield rubber.
Wow! I never would have thought that. Thanks!!!
