Spindle Bushing Tool
What do you guys use to face off the brass spindle bushings? I bought one from a guy who used it one time to do his car, he bought from one of the Vendors. It wont cut anything!! It doesn’t look damaged, just very dull. No sure it can be sharpened? I don’t really need one at the moment but will someday.
-
JTT3
- Posts: 1855
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: John
- Last Name: Tannehill
- Location: Hot Coffee, MS
Re: Spindle Bushing Tool

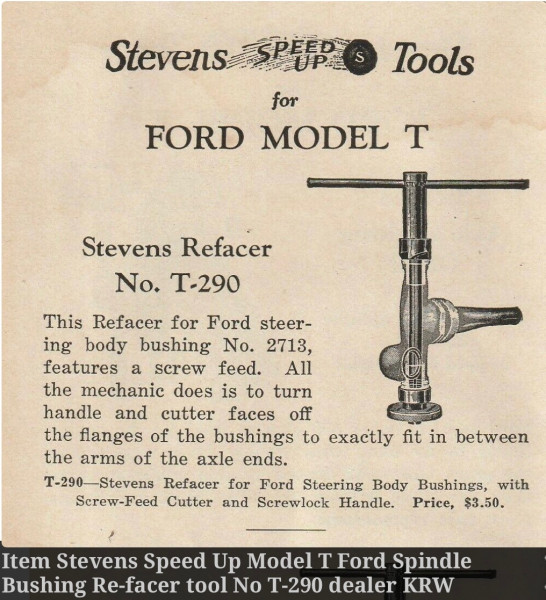

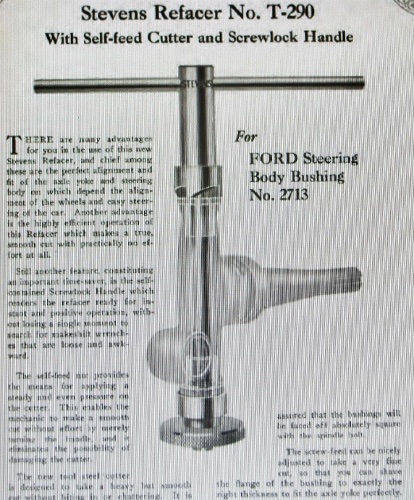

GG, take a picture of the facing tool you’re talking about. If it’s the sort of a copy of the Stevens T290 tool. It should be effective if used correctly. Best John
- Attachments
-
-
-
-
Last edited by JTT3 on Sun Sep 10, 2023 1:13 pm, edited 1 time in total.
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Spindle Bushing Tool

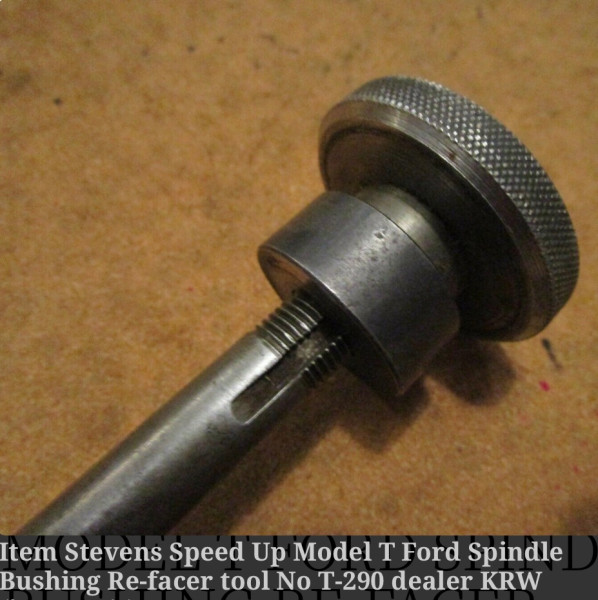

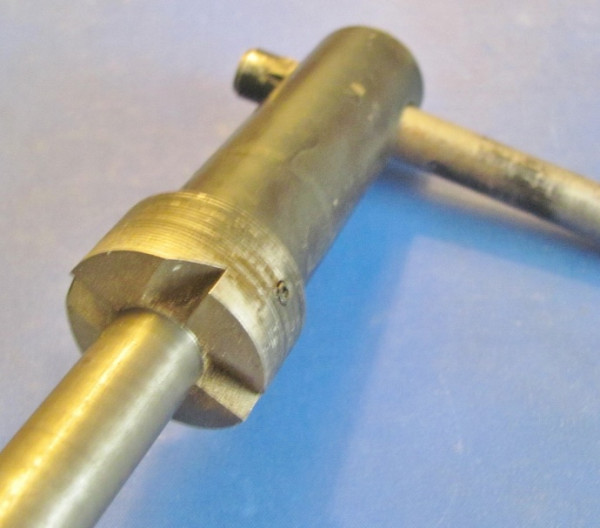

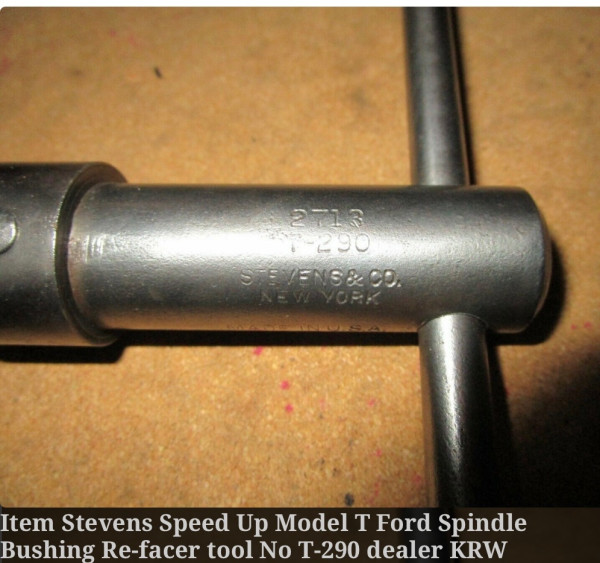

Mine is an older copy version from a out of business concern, of the Stevens unit. Works well. Has a knob at the bottom, fit to a small key and keyway to lock the bottom fulcrum disc, you then turn to tighten the reaming pressure, checking as you go for the amount of material to remove.
Original
Original
- IMG_0131 (572x690) (414x500).jpg (138.97 KiB) Viewed 1067 times
- Attachments
-
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Arbs
- Posts: 216
- Joined: Thu Oct 06, 2022 8:42 pm
- First Name: Dan
- Last Name: A
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring
- Location: Pennsylvania
- Board Member Since: 2022
Re: Spindle Bushing Tool
Where is the OBD2 port on this thing?
-
GG Gregory
Topic author - Posts: 326
- Joined: Sat Jul 20, 2019 3:05 pm
- First Name: GG
- Last Name: Gregory
- * REQUIRED* Type and Year of Model Ts owned: 27 Roadster
- Location: Maryville Tn
Re: Spindle Bushing Tool

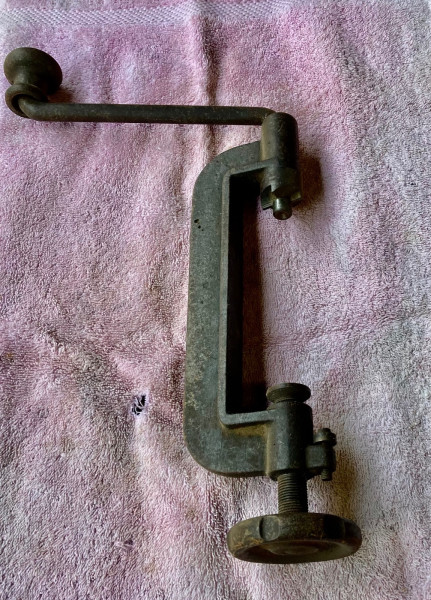

I have the tool like Arbs has as above. I wish someone would reproduce the Stevens tool like Dan has.
-
George House
- Posts: 2814
- Joined: Sun Jan 06, 2019 5:25 pm
- First Name: George
- Last Name: House
- * REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
- Location: Northern Caldwell County TX
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Spindle Bushing Tool

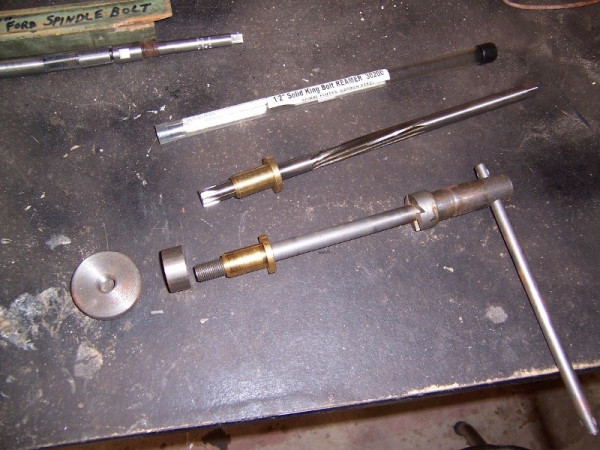

I use an original dealership tool. It works nicely. BTW, I only “face” the flange of the lower bushing so the spindle fits in the axle yoke. Why ??.. Because the entire weight of the front of the T rests on the top bushing flanges and I want the most ‘meat’ there.
- Attachments
-
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT
