Hi All,
I have a 27 Tudor and I want to put the original little dash light back in. What do I connect the central wire to? It would be a positive point, as the negative/ground would be through the attachment on the dash itself. Thanks.
John
Dash light wiring question
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Moxie26
- Posts: 1863
- Joined: Sun Jan 06, 2019 8:20 pm
- First Name: Robert
- Last Name: Jablonski
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: New Jersey
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Dash light wiring question

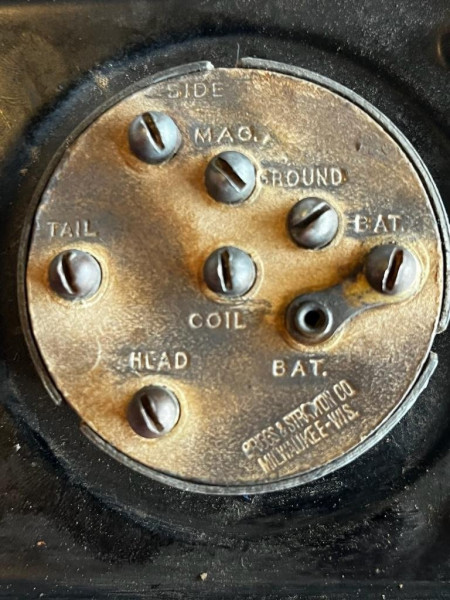

Tap that dash light wire to the BAT terminal on the back of the switch.
- Attachments
-
-
NY John T
Topic author - Posts: 436
- Joined: Wed Nov 25, 2020 12:45 pm
- First Name: John
- Last Name: Killelea
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring, 1927 Tudor, 1925 Touring
- Location: Northport NY
- Board Member Since: 2020
Re: Dash light wiring question
Thank you Robert. That helps. I can now actually see which pedal my feet are on at night.
John
John
-
DanTreace
- Posts: 3812
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Dash light wiring question
Place the dash lamp terminal to one of the ammeter terminals.
Check which one so that when the dash lamp is lit, the ammeter will show discharge.
Good reminder that the dim 3 watt dash lamp is on, when you shut off the ignition, makes you turn it off to keep from draining the battery.
Check which one so that when the dash lamp is lit, the ammeter will show discharge.
Good reminder that the dim 3 watt dash lamp is on, when you shut off the ignition, makes you turn it off to keep from draining the battery.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Moxie26
- Posts: 1863
- Joined: Sun Jan 06, 2019 8:20 pm
- First Name: Robert
- Last Name: Jablonski
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: New Jersey
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Dash light wiring question
Better yet !!!! .... Thanks Dan !
-
nicklm
- Posts: 65
- Joined: Mon Jan 21, 2019 6:22 pm
- First Name: Nick
- Last Name: Miller
- * REQUIRED* Type and Year of Model Ts owned: 1926 touring
- Location: NRedington Bch, FL
Re: Dash light wiring question
Since you only need the light when it is dark, why not attach it to the light system and have it go on only when the lights are on. Our dash light does not have a separate switch to turn it on or off, so it goes off when the lights go off.
That may be an easier connection method.
Nick,,
That may be an easier connection method.
Nick,,
-
Moxie26
- Posts: 1863
- Joined: Sun Jan 06, 2019 8:20 pm
- First Name: Robert
- Last Name: Jablonski
- * REQUIRED* Type and Year of Model Ts owned: 1926 Runabout
- Location: New Jersey
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Dash light wiring question
Nick ... The dash light would have to be wired to the tail light terminal in back of the switch. Tail light is active whether you're using dim or bright headlights .
-
NY John T
Topic author - Posts: 436
- Joined: Wed Nov 25, 2020 12:45 pm
- First Name: John
- Last Name: Killelea
- * REQUIRED* Type and Year of Model Ts owned: 1926 Touring, 1927 Tudor, 1925 Touring
- Location: Northport NY
- Board Member Since: 2020
Re: Dash light wiring question
Steve at Lang's suggested connect to either side of ammeter, so I did that. Works fine, and can go on anytime, regardless of headlights
