A type of removable band ear I've never seen

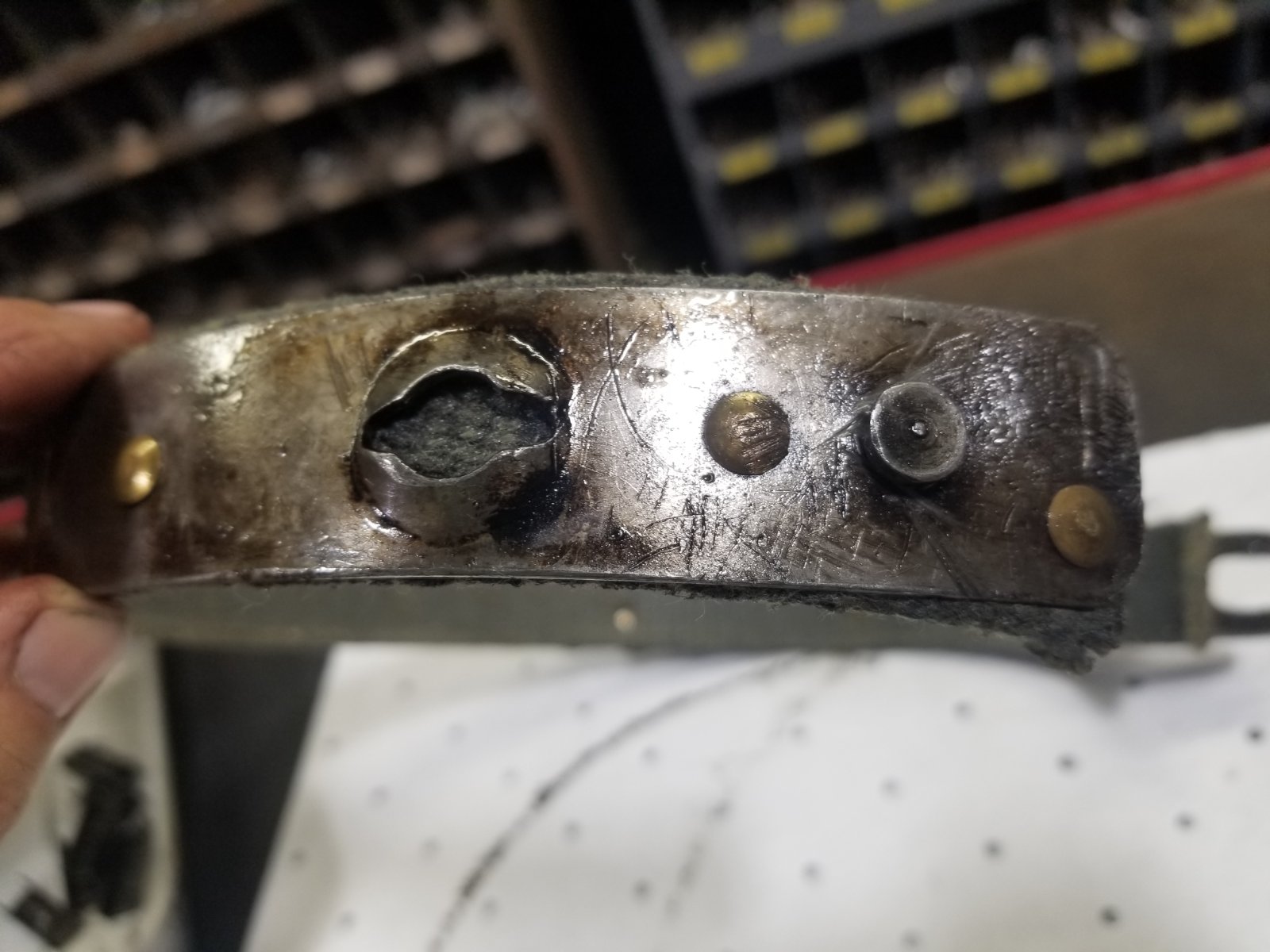

I pulled these bands out of a buddies car while doing a clutch repair. I've never seen these and don't really like the way they seem to fit. Reluctant to re-use them... thoughts?
-
speedytinc
- Posts: 5006
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: A type of removable band ear I've never seen
They are a neat modification on non demount-able OEM bands.
Rather ingenious. in fact they are easier to re-install than the oem slotted type.
The ear gets placed on the T post @ an angle & gets rotated into position.
You may need to do some bending to the end for the ear to snap in over the post in tension,
just as is done on later demount-able band ear tabs onto the band.
The ear should not wiggle when installed.
Rather ingenious. in fact they are easier to re-install than the oem slotted type.
The ear gets placed on the T post @ an angle & gets rotated into position.
You may need to do some bending to the end for the ear to snap in over the post in tension,
just as is done on later demount-able band ear tabs onto the band.
The ear should not wiggle when installed.
-
big2bird
- Posts: 667
- Joined: Mon Sep 14, 2020 10:57 pm
- First Name: Jeffrey
- Last Name: Hausey
- * REQUIRED* Type and Year of Model Ts owned: Early 23 Touring
- Location: Anaheim, Ca.
- Board Member Since: 2020
Re: A type of removable band ear I've never seen
That's your first post here?plonkarchivist wrote: ↑Wed Jan 31, 2024 11:41 pmYou might have to bend the end slightly for the ear to snap over the post under tension, similar to what is done with later demountable band ear tabs onto the band.
-
T4Tom
- Posts: 68
- Joined: Sun Jan 06, 2019 11:26 am
- First Name: Tom
- Last Name: Magee
- * REQUIRED* Type and Year of Model Ts owned: 1924 Speedster
- Location: San Jose CA
Re: A type of removable band ear I've never seen
Careful! Those two posts are spam or some kind of scam. Note the inclusion of websites and email.
I hope admin hops on this.
I hope admin hops on this.
-
Shannon_in_Texas
- Posts: 220
- Joined: Tue Nov 05, 2019 10:40 pm
- First Name: Shannon
- Last Name: Helm
- Location: Arlington TX
Re: A type of removable band ear I've never seen
I sent a PM to AdminJeff about them a while ago.
-
Jerry VanOoteghem
- Posts: 4290
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
Re: A type of removable band ear I've never seen
Those bands are good wall hangers and conversation pieces. Use the real thing.
-
