FORD service aligment tool - DYI

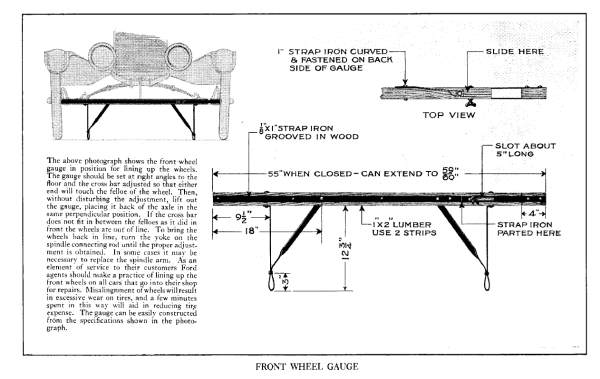

Thought this would be of interest. Says it can be construction from the diagram. Safe to assume assume that the 1"x 2" lumber is exactly 1"x2" back in the day
- Attachments
-
-
