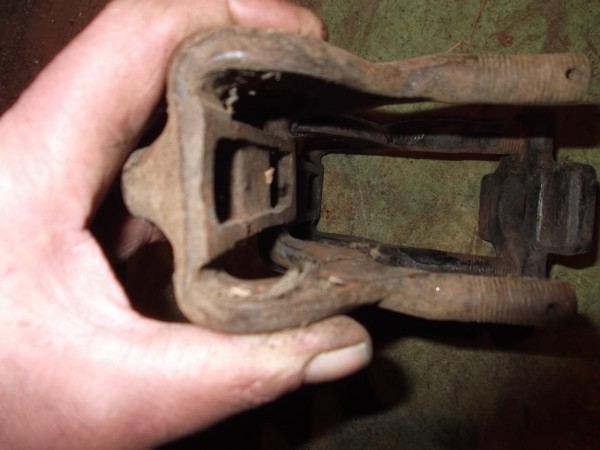

TT motor mount. I did not look real close for makers mark but there is a size difference. I found this at the customers place after we brought the truck back. Not sure what years it was used but am thinking would be latter in production.

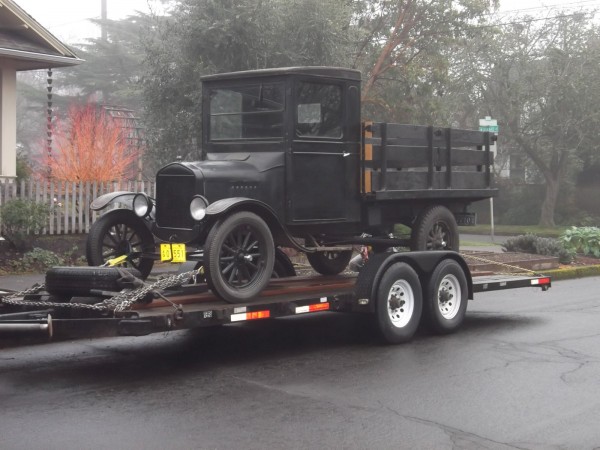

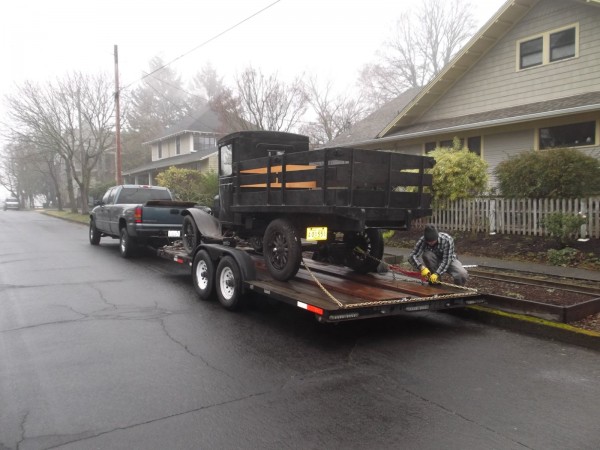

Truck was in the shop to do some routine maintenance to get ready to sell. Ended up having to go through the front end and replace seals, inner bearings and a axle in the rear. It was also missing the shoes on the passenger side when it came in.
TT front motor/spring bracket
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Mark Gregush
Topic author - Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
TT front motor/spring bracket
- Attachments
-
-
-
-
-
I know the voices aren't real but damn they have some good ideas!
1925 Cut down pickup
1948 Ford F2 pickup
1925 Cut down pickup
1948 Ford F2 pickup
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: TT front motor/spring bracket

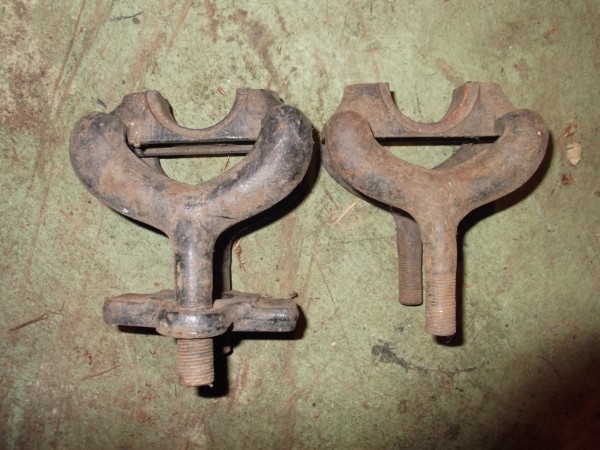

Parts book.... For 9-Leaf front spring, TT front spring clip #1164-B (fac. no. 2921, with cap) is for '26-'27 TT, uses rear axle shaft nut for fasteners.
Someone put one on my '26 runabout and cut the studs short, wondered why the dia. of the threaded studs were so large
Someone put one on my '26 runabout and cut the studs short, wondered why the dia. of the threaded studs were so large
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Mark Gregush
Topic author - Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: TT front motor/spring bracket

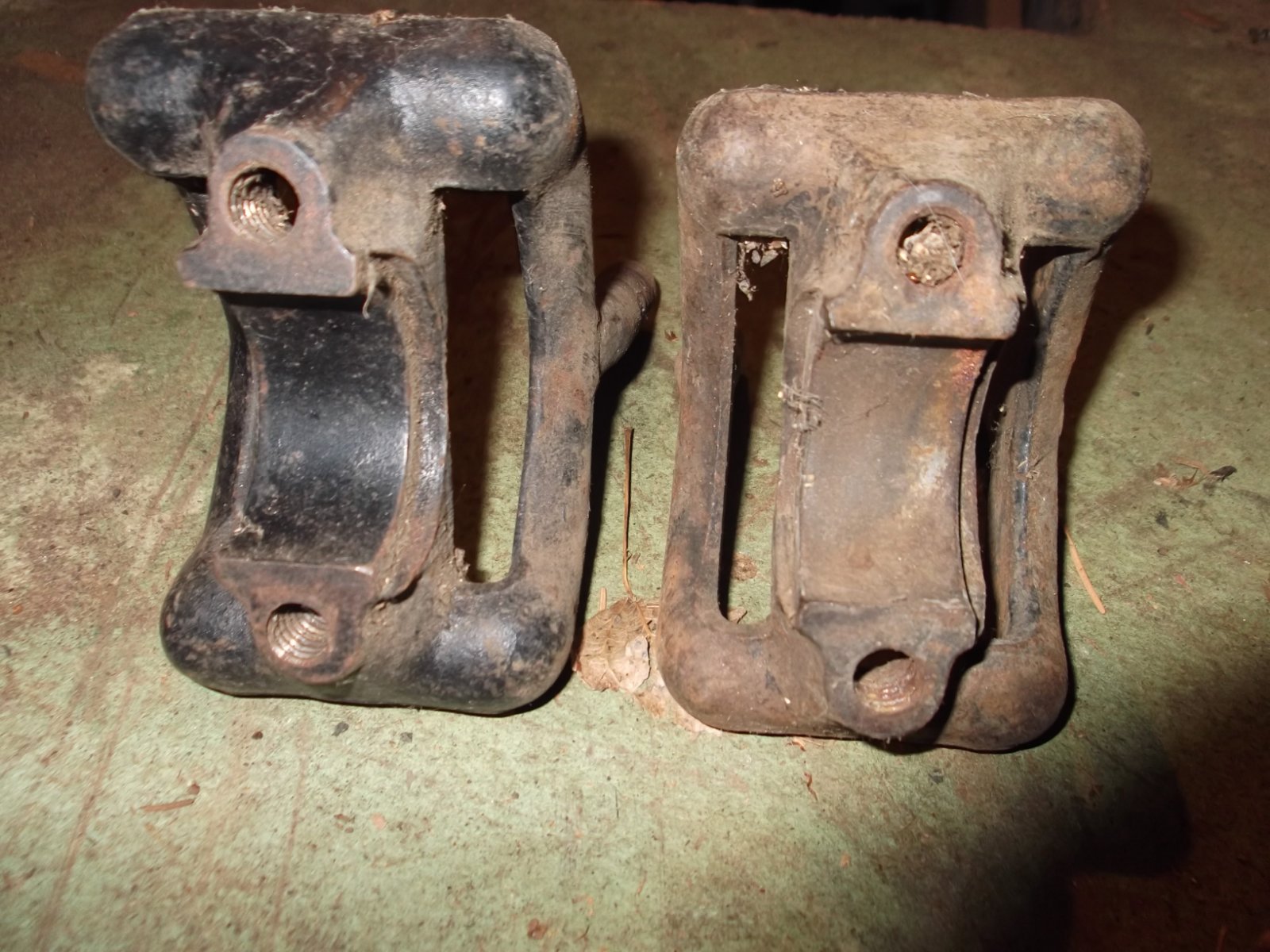

The two were in the same box, so it was easy to see the difference.
