Removable turtle decks through the years 13-27

Post by JTT3 » Sat Feb 22, 2020 12:24 am

I was wondering about the removable turtle decks that Ford produced for the model T. Am I missing any?
Attachments

User avatar

Topic author
JTT3
Posts: 189
Joined: Sun Jan 06, 2019 11:57 am
First Name: John T
Last Name: Tannehill III
Location: Hot Coffee, MS
MTFCA Number: 49460

Re: Removable turtle decks through the years 13-27

Post by JTT3 » Sat Feb 22, 2020 12:25 am

Oh 1923-24 roadster
Attachments

User avatar

Topic author
JTT3
Posts: 189
Joined: Sun Jan 06, 2019 11:57 am
First Name: John T
Last Name: Tannehill III
Location: Hot Coffee, MS
MTFCA Number: 49460

Re: Removable turtle decks through the years 13-27

Post by JTT3 » Sat Feb 22, 2020 12:30 am

What about these? If not Ford then whom?
Attachments

User avatar

Mark Gregush
Posts: 2952
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Removable turtle decks through the years 13-27

Post by Mark Gregush » Sat Feb 22, 2020 12:35 am

The trunk on the coupe shown is not readily removable, it is inset into the body and there would be a big hole in the back of the body with it removed.
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1920 Dodge touring
1948 Ford F2 pickup

User avatar

Topic author
JTT3
Posts: 189
Joined: Sun Jan 06, 2019 11:57 am
First Name: John T
Last Name: Tannehill III
Location: Hot Coffee, MS
MTFCA Number: 49460

Re: Removable turtle decks through the years 13-27

Post by JTT3 » Sat Feb 22, 2020 1:22 am

Mark I believe you may be right though I’ve seen this picture of one that was removed. I know you have a lot of T experience, do you have an idea about the unknown 2 posted. The rusty one looks 26/7 but the curved panel in the back bottom looks, at least to me, larger and the other one pictured it looks 23-25ish but the lid and latches are different but look factory.
Attachments
Last edited by JTT3 on Sat Feb 22, 2020 1:32 am, edited 3 times in total.

User avatar

Mark Gregush
Posts: 2952
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Removable turtle decks through the years 13-27

Post by Mark Gregush » Sat Feb 22, 2020 1:26 am

Yes but if you will look close the wood sills are cut just in front of it. The sheet metal along the front curved edge is nailed to the inside of the pillars on ether side. Yes it can be removed but not in the same way as the normal T-deck.
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1920 Dodge touring
1948 Ford F2 pickup

User avatar

Topic author
JTT3
Posts: 189
Joined: Sun Jan 06, 2019 11:57 am
First Name: John T
Last Name: Tannehill III
Location: Hot Coffee, MS
MTFCA Number: 49460

Re: Removable turtle decks through the years 13-27

Post by JTT3 » Sat Feb 22, 2020 1:34 am

Agree on closer inspection. Any thoughts on the other 2?

User avatar

doodlebugt
Posts: 36
Joined: Sun Jan 06, 2019 3:46 pm
First Name: Bruce
Last Name: Csorba
Location: Melbourne, Australia

Re: Removable turtle decks through the years 13-27

Post by doodlebugt » Sat Feb 22, 2020 6:25 am

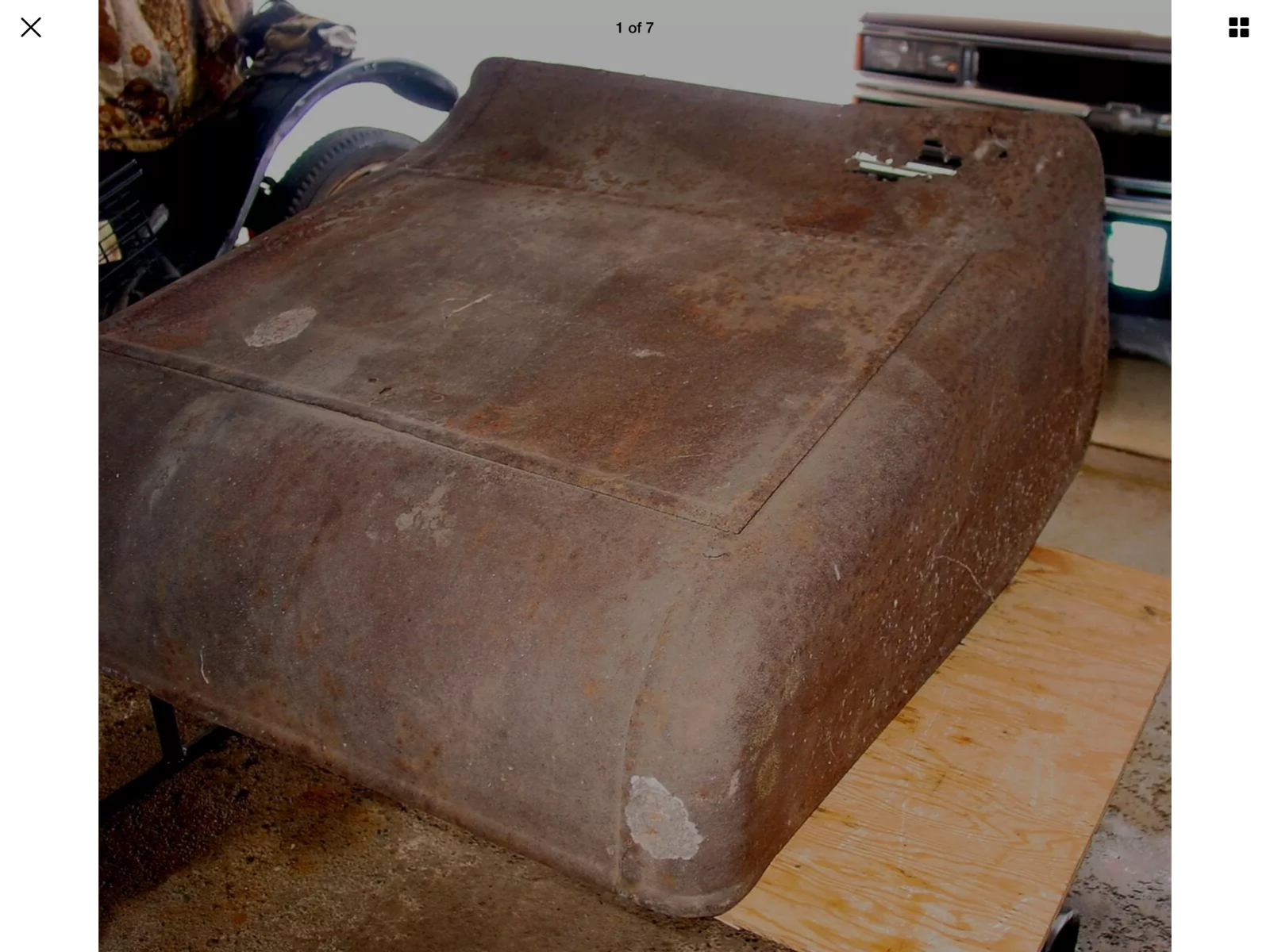

The rusty one can't be 26-7 as there are no mudguard attachment points.
Bruce Csorba
Melbourne, Australia

15 4-spring Rajo racer
17 C-cab van
25 "Dalgety" Tourer


John L
Posts: 61
Joined: Sun Jan 06, 2019 2:39 pm
First Name: John
Last Name: Leffler
Location: Lebanon PA 17046
MTFCA Number: 22526

Re: Removable turtle decks through the years 13-27

Post by John L » Sat Feb 22, 2020 8:26 am

I would like to find one like number 4. Somebody took the one off on my 23 along time ago, and made a wood box for it. It nice , but I would like the turtle deck instead.

User avatar

Mark Gregush
Posts: 2952
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Removable turtle decks through the years 13-27

Post by Mark Gregush » Sat Feb 22, 2020 1:57 pm

Just to be clear; the sides and rear panel on the pre 24 style coups are nailed to the underside of the sills like the rest of the body panels. If the sills have been shorten or changed, you would need to need to start at the firewall and work back to renew them. The coupes had a trunk that was part of the body not a T deck that was removable.
http://fordwood.com/images/cpe20new.jpg
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1920 Dodge touring
1948 Ford F2 pickup


Original Smith
Posts: 1872
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Removable turtle decks through the years 13-27

Post by Original Smith » Sat Feb 22, 2020 2:30 pm

My '13 is held on by four long 1/4" carriage bolts.


Wayne Sheldon
Posts: 1862
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Removable turtle decks through the years 13-27

Post by Wayne Sheldon » Sun Feb 23, 2020 3:42 am

Quarter inch bolts? I don't have anything surviving to give definitive information on my '15, but I was planning on 5/16 carriage bolts. Always willing to change my plans if better information is available.


Wayne Sheldon
Posts: 1862
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Removable turtle decks through the years 13-27

Post by Wayne Sheldon » Sun Feb 23, 2020 3:45 am

That gray primered turtle deck is interesting. I did see an original speedster kit that used a similar trunk on the back. Don't know if that is it or not?
Saxon had a small turtle deck on their runabouts. But I am fairly certain that it was a slightly different shape than that.


Original Smith
Posts: 1872
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Removable turtle decks through the years 13-27

Post by Original Smith » Mon Feb 24, 2020 10:52 am

The four carriage bolts in my '13 roadster are not original. They needed replacing. However, the length is correct and size too. All the wood in this car, including the turtle deck is original to the car.


Wayne Sheldon
Posts: 1862
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
Location: Grass Valley Califunny, USA
Board Member Since: 2005

Re: Removable turtle decks through the years 13-27

Post by Wayne Sheldon » Mon Feb 24, 2020 2:31 pm

Thank you Larry S
