Speedster engine rear main sealing (Non T trans)

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules

Topic author
Chad_Marcheese
Posts: 141
Joined: Tue Jan 15, 2019 6:06 am
First Name: Chad
Last Name: Marcheese
Location: Upstate, NY
MTFCA Number: 26904
Board Member Since: 2005

Speedster engine rear main sealing (Non T trans)

Post by Chad_Marcheese » Thu Feb 27, 2020 5:11 pm

I know this has been done, so hopefully someone here can tell me.

I'm trying to run a T engine with T crank with a dry clutch setup (basically like a modern type engine/clutch /trans setup). That means I need to somehow seal the rear main. How can it be done? I have one idea, but you certainly wont be able to plumb alot of pressure to the rear main from the oil pump.

The rear cam bearing area I already have figured out, that was the easy part.

User avatar

Henry K. Lee
Posts: 2823
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: Speedster engine rear main sealing (Non T trans)

Post by Henry K. Lee » Thu Feb 27, 2020 5:33 pm

From 6061 billet aluminum 3/4” to start with, attaching to the coil ring bolt pattern and going straight down to form into the oil pan to be made or adapted. You leave a larger than normal hole to go around the crankshaft and supporting material. Next, adapt the T crank to the dry clutch flywheel you are planning to use, (don’t forget pilot shaft bearing) the outside of this is your new sealing surface. Using billet build to the dimensions required for your bell housing bolt pattern. You will have about $475.00 just in the material.

I have a casting pattern if wish to purchase it.

Hope this Helps,

Hank


Topic author
Chad_Marcheese
Posts: 141
Joined: Tue Jan 15, 2019 6:06 am
First Name: Chad
Last Name: Marcheese
Location: Upstate, NY
MTFCA Number: 26904
Board Member Since: 2005

Re: Speedster engine rear main sealing (Non T trans)

Post by Chad_Marcheese » Thu Feb 27, 2020 6:49 pm

Hank,

It would be great if you had any pics of the parts and pieces with them on a engine so I could see better what your trying to convey in your message.

User avatar

Henry K. Lee
Posts: 2823
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: Speedster engine rear main sealing (Non T trans)

Post by Henry K. Lee » Thu Feb 27, 2020 7:39 pm

At the current moment, my new system is under development so no pictures will be posted until completed but should be very unique. Sorry if I teased you.

Hank


Topic author
Chad_Marcheese
Posts: 141
Joined: Tue Jan 15, 2019 6:06 am
First Name: Chad
Last Name: Marcheese
Location: Upstate, NY
MTFCA Number: 26904
Board Member Since: 2005

Re: Speedster engine rear main sealing (Non T trans)

Post by Chad_Marcheese » Thu Feb 27, 2020 10:10 pm

Well, ok then. Anyone else have some real information they are willing to share?


Shane Lach
Posts: 193
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: Speedster engine rear main sealing (Non T trans)

Post by Shane Lach » Thu Feb 27, 2020 10:40 pm

Mike Penserini may be able to shed some light on the subject as well.

User avatar

Mark Gregush
Posts: 2107
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Speedster engine rear main sealing (Non T trans)

Post by Mark Gregush » Thu Feb 27, 2020 10:40 pm

I know the voices aren't real but damn they have some good ideas! :shock:

1921 Huckster
1925 Cut down pickup


Dan McEachern
Posts: 332
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
Location: ALAMEDA,CA,USA

Re: Speedster engine rear main sealing (Non T trans)

Post by Dan McEachern » Sat Feb 29, 2020 11:30 am

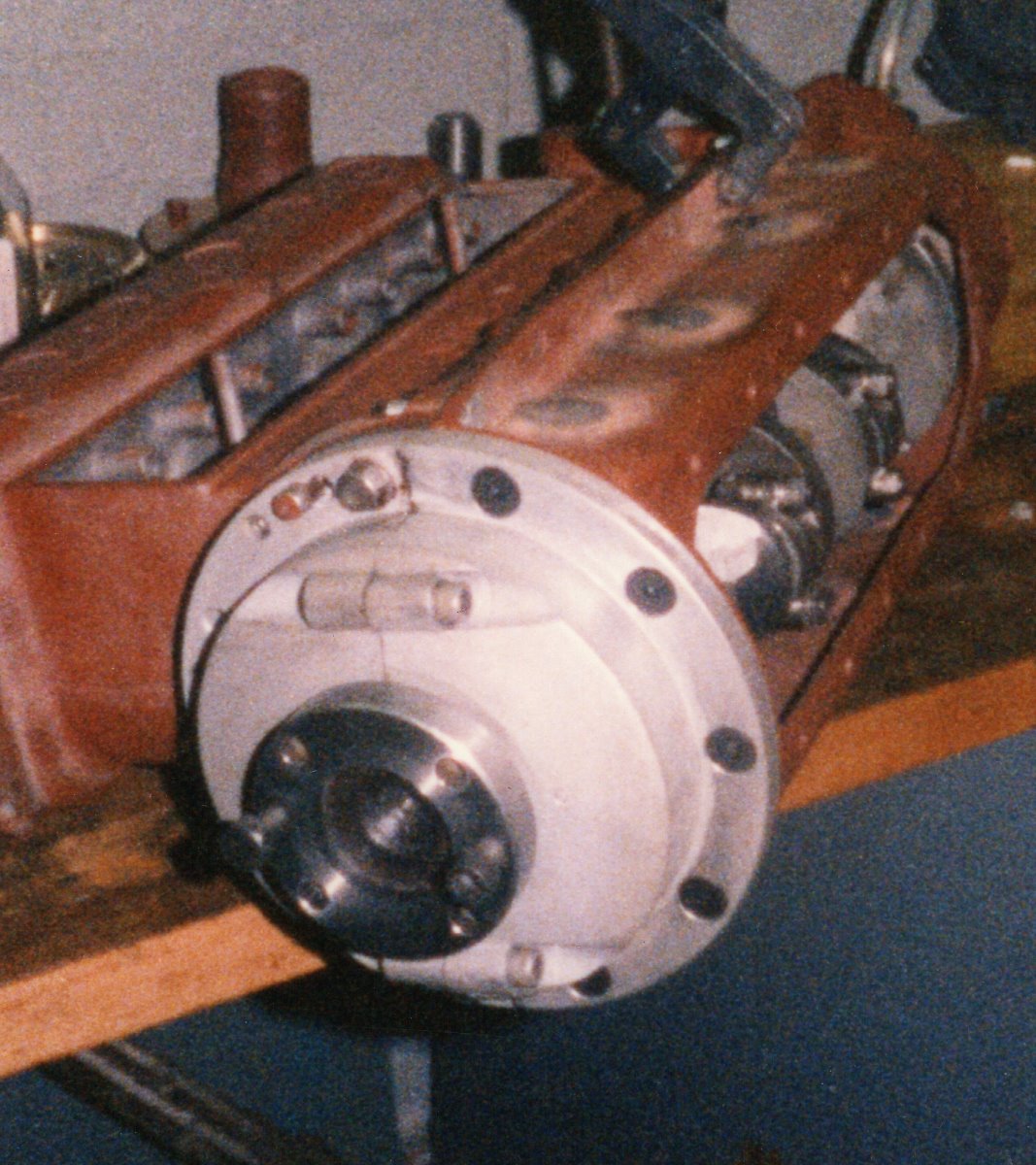

Ok- here are a few pictures of my seal setup- pretty much self explanatory. The last picture shows the extended crank flange necessary to position the flywheel properly. The flywheel in this engine is a lightened model A with a V-8 pressure plate. Crank is model A with a full length rear main. I'll post a few more later.
Attachments
Dougs Engine_0010.jpg
Dougs Engine_0007.jpg
Dougs Engine_0006.jpg
Dougs Engine_0005.jpg
Dougs Engine_0001.jpg


Dan McEachern
Posts: 332
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
Location: ALAMEDA,CA,USA

Re: Speedster engine rear main sealing (Non T trans)

Post by Dan McEachern » Sat Feb 29, 2020 11:33 am

Here are a few more pictures.
Attachments
Dougs Engine_0012.jpg
Dougs Engine_0004.jpg
Dougs Engine_0003.jpg

User avatar

CamMan
Posts: 26
Joined: Sat Feb 29, 2020 1:26 pm
First Name: Larry
Last Name: Young
Location: Tulsa

Re: Speedster engine rear main sealing (Non T trans)

Post by CamMan » Sat Feb 29, 2020 4:01 pm

I posted some photos of an engine with this type of conversion over in the other discussion - https://www.mtfca.com/phpBB3/viewtopic.php?f=5&t=10117


Topic author
Chad_Marcheese
Posts: 141
Joined: Tue Jan 15, 2019 6:06 am
First Name: Chad
Last Name: Marcheese
Location: Upstate, NY
MTFCA Number: 26904
Board Member Since: 2005

Re: Speedster engine rear main sealing (Non T trans)

Post by Chad_Marcheese » Sat Feb 29, 2020 9:37 pm

Dan McEachern wrote:
Sat Feb 29, 2020 11:30 am
Ok- here are a few pictures of my seal setup- pretty much self explanatory. The last picture shows the extended crank flange necessary to position the flywheel properly. The flywheel in this engine is a lightened model A with a V-8 pressure plate. Crank is model A with a full length rear main. I'll post a few more later.
Dan, Per our phone conversation a few days ago, you were absolutely right, the pictures are worth a thousand words. THANK YOU!!! I am Definitely still interested in one of these for my "A" crank build.

While thinking about this earlier today for the "T" crank usage, I actually had a similar thought of something that is sort of like yours for the "A" crank. The problem with a "T" crank is there is no real seal surface for a seal to ride on other than the rear flange. But with some calculations I have done that may be perfectly viable.

Thank You Very much again Dan for sharing, I hope you can get a few cast up soon.

Regards


Topic author
Chad_Marcheese
Posts: 141
Joined: Tue Jan 15, 2019 6:06 am
First Name: Chad
Last Name: Marcheese
Location: Upstate, NY
MTFCA Number: 26904
Board Member Since: 2005

Re: Speedster engine rear main sealing (Non T trans)

Post by Chad_Marcheese » Sat Feb 29, 2020 9:49 pm

CamMan wrote:
Sat Feb 29, 2020 4:01 pm
I posted some photos of an engine with this type of conversion over in the other discussion - https://www.mtfca.com/phpBB3/viewtopic.php?f=5&t=10117
WOW, Those too are great reference. THANK YOU for posting those. All of this is great info to have.

The flywheel housing is Model B, I cant say for sure on the crank not seeing pictures of it, but it could be also a "B" if they whet through the trouble of doing the flywheel housing swap.


katjack78
Posts: 7
Joined: Tue Jan 08, 2019 11:34 pm
First Name: John
Last Name: Jackson
Location: Mechanicsburg, PA
MTFCA Number: 15186

Re: Speedster engine rear main sealing (Non T trans)

Post by katjack78 » Sun Mar 01, 2020 12:47 am

Dan.....I thank you very much for posting your photos on dry clutch conversion. There are of great help......John
