Headlight assembly question
I looked around and couldn’t find the answer - which direction does the chrome socket go ? The adjuster screw tab is not centered in the length, so does it go short side in the bucket, or long side in the bucket ?
-
- Posts: 6435
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- * REQUIRED* Type and Year of Model Ts owned: '13, '15, '19, '23
- Location: Clark, WY
- Board Member Since: 2005
Re: Headlight assembly question
Longer slots toward bulb (and tab offset toward bulb)
You appear to have it correctly aligned with your 3 parts.
Be sure to check the screw for a cotterpin hole. Some don't come that way or at least didn't, so if necessary, drill the screw first, and cotterpin it after focusing...the repro screws unfortunately do not always come with the proper hole.
You appear to have it correctly aligned with your 3 parts.
Be sure to check the screw for a cotterpin hole. Some don't come that way or at least didn't, so if necessary, drill the screw first, and cotterpin it after focusing...the repro screws unfortunately do not always come with the proper hole.
Last edited by Scott_Conger on Fri Mar 20, 2020 6:23 pm, edited 1 time in total.
Scott Conger
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves
Obsolete carburetor parts manufactured
Tyranny under the guise of law is still Tyranny
NH Full Flow Float Valves
Obsolete carburetor parts manufactured
-
Topic author - Posts: 97
- Joined: Fri Jan 03, 2020 10:04 pm
- First Name: Cory
- Last Name: Woerth
- * REQUIRED* Type and Year of Model Ts owned: 26 engine on a stand, Canadian '23 center door
- Location: Colorado Springs CO
- Board Member Since: 2020
Re: Headlight assembly question
you're right. no holes.
this could be fun...

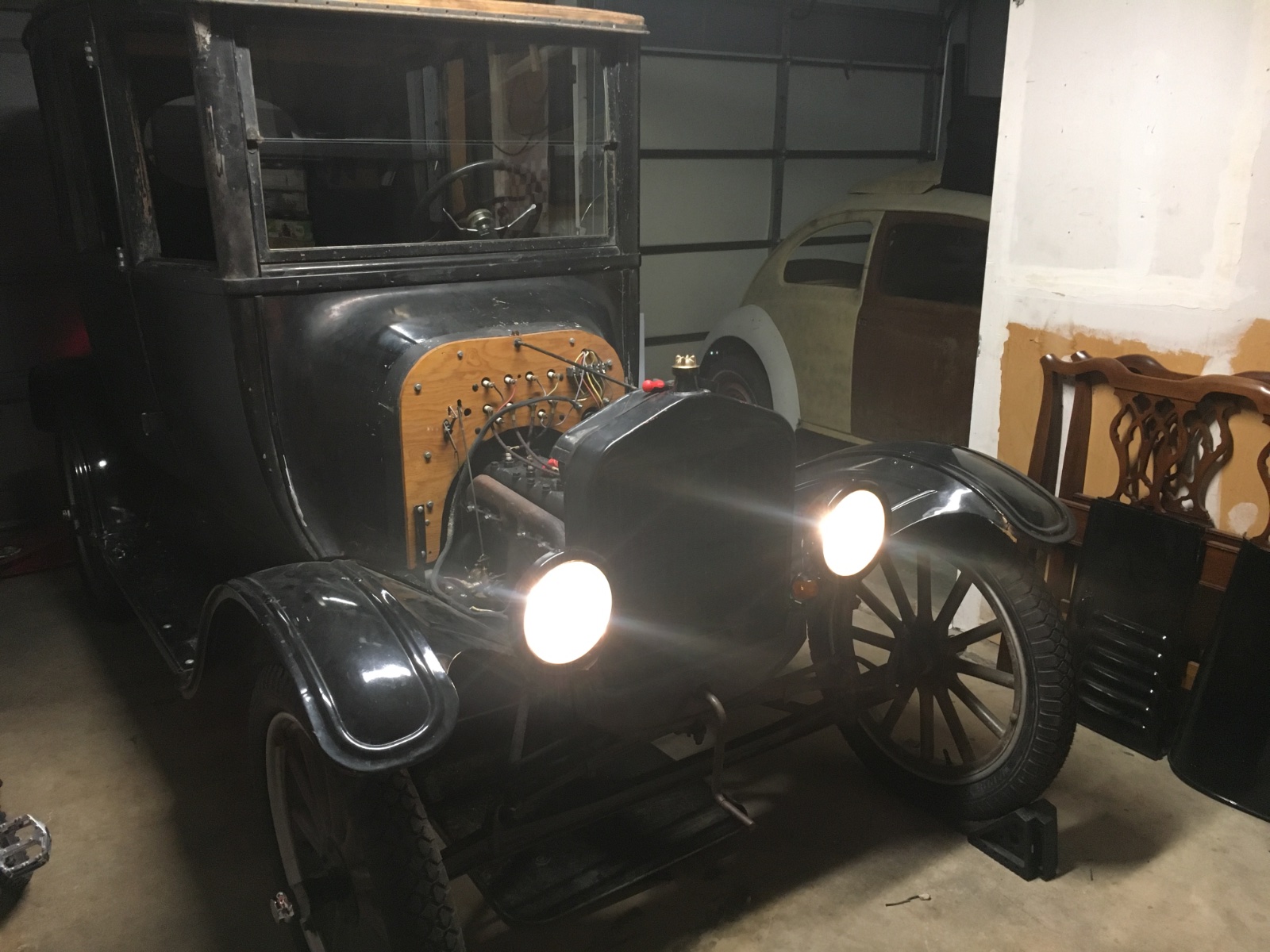

EDIT: that was MUCH easier than expected ! I didn't even break a drill bit in the process !
this could be fun...
EDIT: that was MUCH easier than expected ! I didn't even break a drill bit in the process !
-
- Posts: 6435
- Joined: Sun Jan 06, 2019 11:18 am
- First Name: Scott
- Last Name: Conger
- * REQUIRED* Type and Year of Model Ts owned: '13, '15, '19, '23
- Location: Clark, WY
- Board Member Since: 2005
Re: Headlight assembly question
Excellent news!
