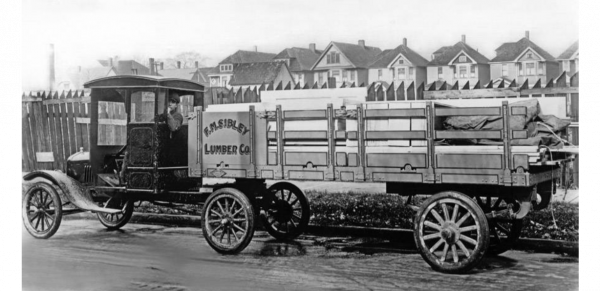

All Rigged Up (photo)

Discuss all things Model T related.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
User avatar

Topic author
Tim Rogers
Posts: 145
Joined: Sun Jan 06, 2019 11:04 am
First Name: Tim
Last Name: Rogers
Location: South of the Adirondacks
Board Member Since: 2013

All Rigged Up (photo)

Post by Tim Rogers » Sun Mar 29, 2020 7:51 am

All credit to Fruehauf Historical Society
<o><o><o><o> Tim Rogers - South of the Adirondacks - Forum member since 2013 <o><o><o><o>

User avatar

Charlie B in N.J.
Posts: 291
Joined: Mon Jan 07, 2019 7:40 am
First Name: CHARLIE
Last Name: BRANCA
Location: Brick N.J.
MTFCA Number: 28967
Board Member Since: 2010

Re: All Rigged Up (photo)

Post by Charlie B in N.J. » Sun Mar 29, 2020 7:56 am

Bundles of shingles?
Forget everything you thought you knew.


Dallas Landers
Posts: 1533
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: All Rigged Up (photo)

Post by Dallas Landers » Sun Mar 29, 2020 8:08 am

Thats a great one Tim. Yup, looks like shingles. Not too heavy but pretty high stack.

User avatar

Rich Eagle
Posts: 2394
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: All Rigged Up (photo)

Post by Rich Eagle » Sun Mar 29, 2020 9:06 am

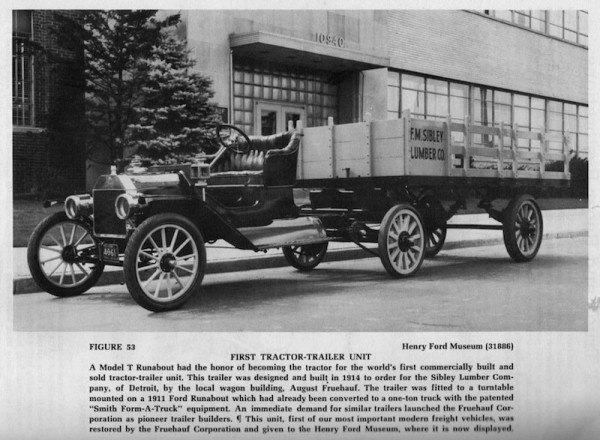

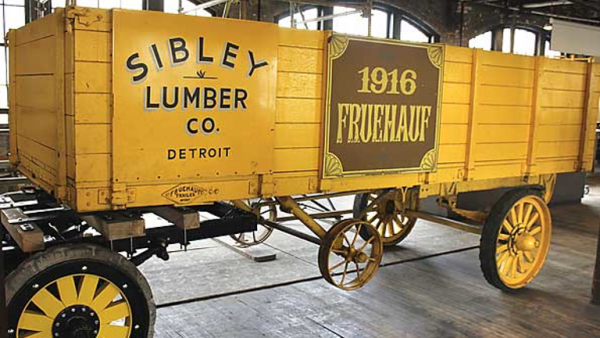

That is not only a great photo but a significant conversion. The Henry Ford Museum displays the outfit.
https://www.thehenryford.org/collection ... act/26690/
Thanks Tim.
Rich
When did I do that?


Herb Iffrig
Posts: 534
Joined: Sun Jan 06, 2019 11:47 am
First Name: Herb
Last Name: Iffrig
Location: St. Peters, MO

Re: All Rigged Up (photo)

Post by Herb Iffrig » Sun Mar 29, 2020 9:18 am

I found one of those trailers years ago, still have it. I knew of one other not too far away from here. Mine needs a lot of work. Pretty neat and heavy duty.

User avatar

George House
Posts: 702
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
Location: Northern Caldwell County TX
MTFCA Number: 115
MTFCA Life Member: YES

Re: All Rigged Up (photo)

Post by George House » Sun Mar 29, 2020 9:41 am

Good grief ! Consider that low band constricting on the low drum gets that heavy trailer with a not insignificant heavy load under way and another band constricting on a brake drum (presumably narrow) to slow/stop it. And all that’s done with only 20-22 HP ! Totally interesting photo ! Thanks for sharing !
“Fear is a Reaction...
Courage is a Decision”...Sir Winston Churchill


John kuehn
Posts: 912
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: All Rigged Up (photo)

Post by John kuehn » Sun Mar 29, 2020 9:44 am

The body that’s used in the TT trailer pic looks like a 16 body. It’s newer than the one that’s shown in the Henry Ford museum pic or it looks that way to me.

User avatar

TWrenn
Posts: 513
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
Location: Ohio
MTFCA Number: 30701
MTFCI Number: 24033

Re: All Rigged Up (photo)

Post by TWrenn » Sun Mar 29, 2020 10:08 am

John kuehn wrote:
Sun Mar 29, 2020 9:44 am
The body that’s used in the TT trailer pic looks like a 16 body. It’s newer than the one that’s shown in the Henry Ford museum pic or it looks that way to me.
Yeh, the one in the HF pic looks like a '12.


HPetrino
Posts: 345
Joined: Sun Jan 06, 2019 11:14 am
First Name: Henry
Last Name: Petrino
Location: Modesto, CA

Re: All Rigged Up (photo)

Post by HPetrino » Sun Mar 29, 2020 10:41 am

I believe that neither of the rigs shown, the photo above or the one on the HF website, are TT's. They are regular T's with a Form-A-Truck (or equivalent) kit installed.

George,
Observe the drive chain. The forward drive sprocket is much smaller than the rear wheel sprocket, thus gearing it down quite a bit. Of course, as you said, it's still a lot for 20-22 HP and the T planetary bands.

User avatar

HornsRus
Posts: 400
Joined: Sun Jan 06, 2019 1:07 pm
First Name: Charley
Last Name: Shaver
Location: MO

Re: All Rigged Up (photo)

Post by HornsRus » Sun Mar 29, 2020 11:12 am

herb!! is that other trailer is still there ??? i have a formatruck that needs something to pull.ha,ha.charley


Rich Bingham
Posts: 1015
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: All Rigged Up (photo)

Post by Rich Bingham » Sun Mar 29, 2020 3:43 pm

Estimating the load at 122 bundles, figure 30-40 pounds per bundle, that’s at least a ton and a half to two tons. Plenty to have behind a stock Model T service brake ! I hope there were no steep hills on the route.
"Get a horse !"


John kuehn
Posts: 912
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: All Rigged Up (photo)

Post by John kuehn » Sun Mar 29, 2020 3:59 pm

I also have to say that it looks like a LOT of weight for a T to pull with 20-22 hp! He would have burned out the low band pretty fast driving in hilly country. And not real brakes as we think of today. OSHA approved ???? Makes you wonder.


Scott_Conger
Posts: 2479
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: All Rigged Up (photo)

Post by Scott_Conger » Sun Mar 29, 2020 6:51 pm

Per below, the HF lists it as an '11 already fitted with the Form-a-Truck kit before being married to the trailer, and that due to demand, this eventually became the Freuhauf Brand. As linked by Rich, the Museum lists an entirely different year, likely being the year of the truck's addition of the trailer...so it's an '11 runabout, converted in 1914. The below vehicle was restored by Freuhauf and donated to HF.

Looking at the picture, if the driven gear is twice the diameter of the drive gear, you're looking at a 50% increase in power and braking while halving top speed.

Freuhauf started in 1918,

Perfecto first listed in Ford Owner Dec 1920 and in combination with Form-a-Truck would be a formidable little hauler and would have no trouble starting that sort of rig. Since the Lumber company's truck was the precursor to Freuhauf in 1918, it would presumably NOT have a two speed rear axle as originally configured. Neat vehicle(s) though the original posting is of an entirely different truck than that on display at the HF which is a copy of the original Freuhauf rig, restored by Freuhauf. Both are neat vehicles.


Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!

User avatar

Topic author
Tim Rogers
Posts: 145
Joined: Sun Jan 06, 2019 11:04 am
First Name: Tim
Last Name: Rogers
Location: South of the Adirondacks
Board Member Since: 2013

Re: All Rigged Up (photo)

Post by Tim Rogers » Sun Mar 29, 2020 7:58 pm

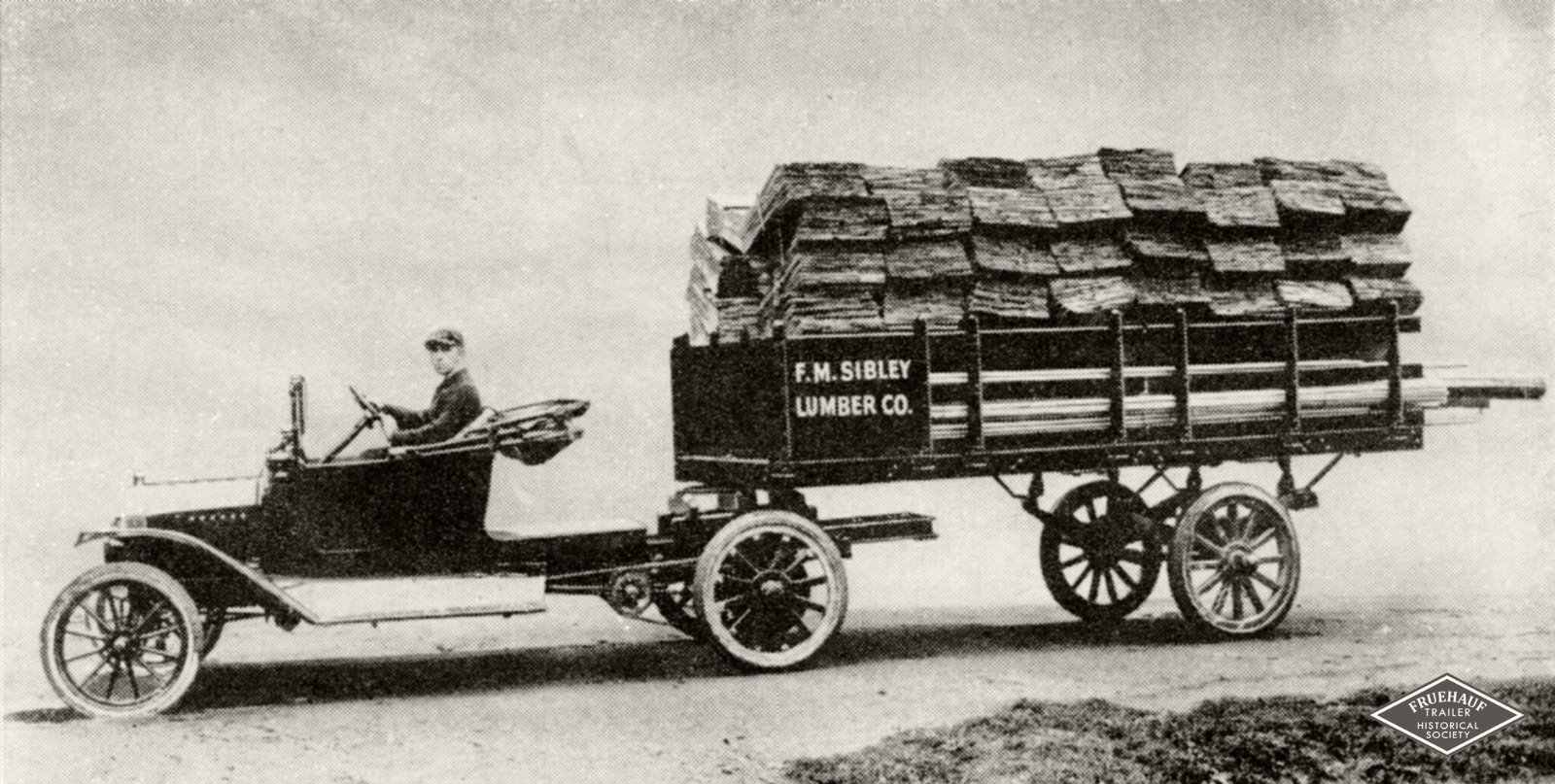

The original post is a photo of the "first Fruehauf "semi-trailer" created in 1914 for a Detroit lumber merchant"- Fruehauf Trailer Historical Society.
<o><o><o><o> Tim Rogers - South of the Adirondacks - Forum member since 2013 <o><o><o><o>


Scott_Conger
Posts: 2479
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: All Rigged Up (photo)

Post by Scott_Conger » Sun Mar 29, 2020 11:32 pm

That little '15-16 Form-a-truck got around! Originally published in Motor Age, July 8, 1917 and reprinted in the Old Motor April 30, 2015:
Attachments
Freuhauf in 1917.jpg
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!

User avatar

George House
Posts: 702
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
Location: Northern Caldwell County TX
MTFCA Number: 115
MTFCA Life Member: YES

Re: All Rigged Up (photo)

Post by George House » Mon Mar 30, 2020 6:50 am

Oh, I knew right off it isn’t a TT...
“Fear is a Reaction...
Courage is a Decision”...Sir Winston Churchill

User avatar

Rich Eagle
Posts: 2394
Joined: Fri Jan 04, 2019 10:51 am
First Name: Richard
Last Name: Eagle
Location: Idaho Falls, ID
MTFCA Number: 1219
Contact:

Re: All Rigged Up (photo)

Post by Rich Eagle » Mon Mar 30, 2020 11:03 am

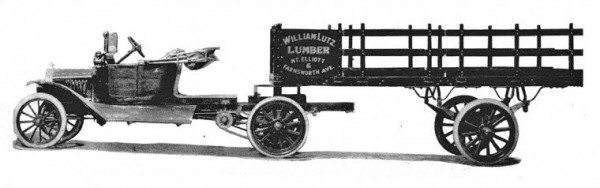

Now William Lutz Lumber. Exactly the same as the first truck and trailer in this thread if not THE same truck.
Interesting.
Rich
When did I do that?


Scott_Conger
Posts: 2479
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: All Rigged Up (photo)

Post by Scott_Conger » Mon Mar 30, 2020 1:44 pm

There may be more Sibley/Freuhauf's now than originally...or not...who knows?


Sibley Lumber Freuhauf Trailer.png
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


Jim, Sr.
Posts: 125
Joined: Sun Jan 06, 2019 11:13 pm
First Name: Jim, Sr.
Last Name: Rodell
Location: Wisconsin
MTFCA Number: 2406
MTFCI Number: 22213

Re: All Rigged Up (photo)

Post by Jim, Sr. » Mon Mar 30, 2020 9:59 pm

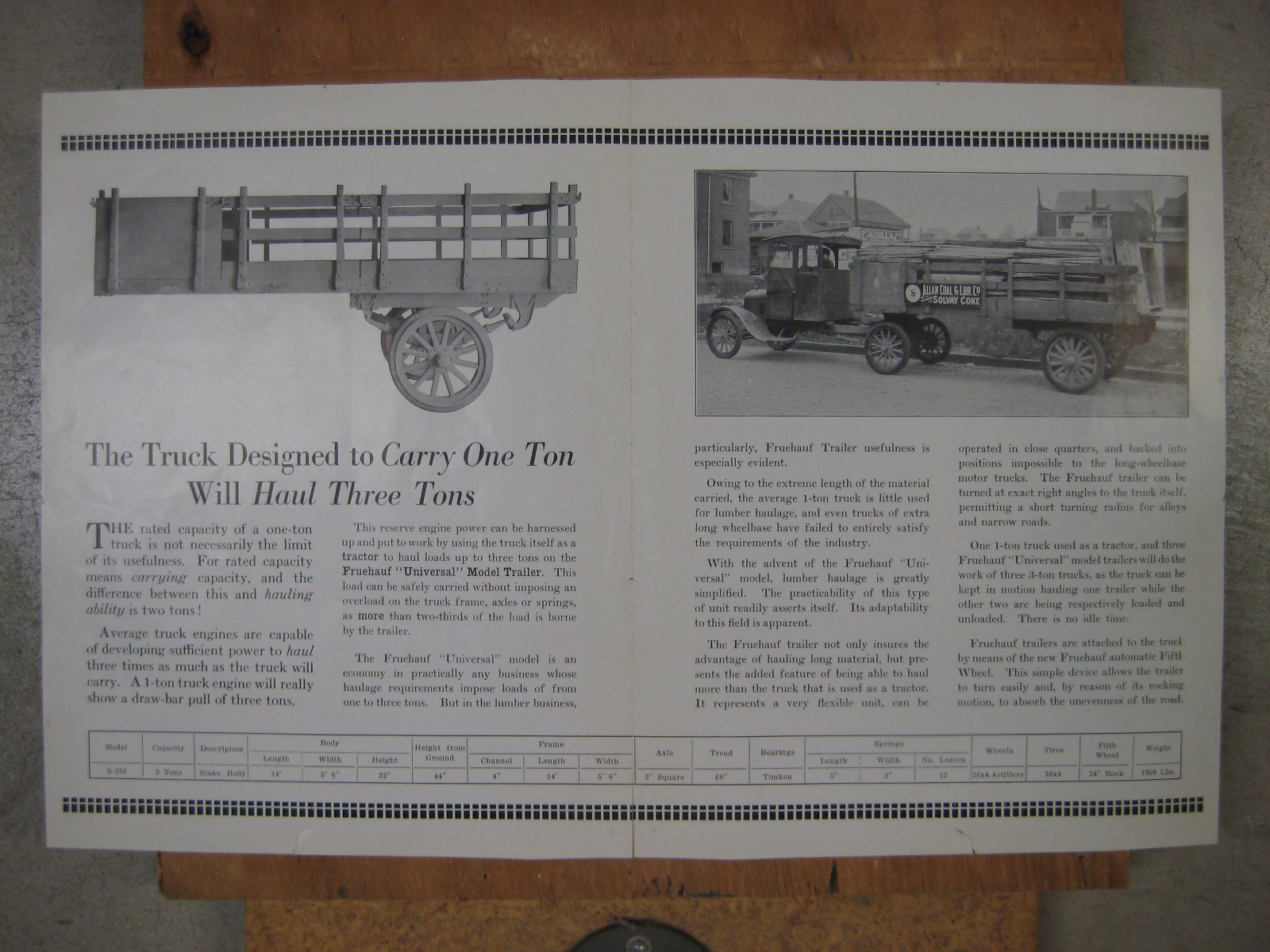

This is the centerspread in an original Freuhauf brochure.
Click on it to enlarge it. Click again to read it.
Attachments
