My approach to pressure oil lines

Post by Les Schubert » Sun Apr 05, 2020 2:35 pm

Connecting to outside
Connecting to outside

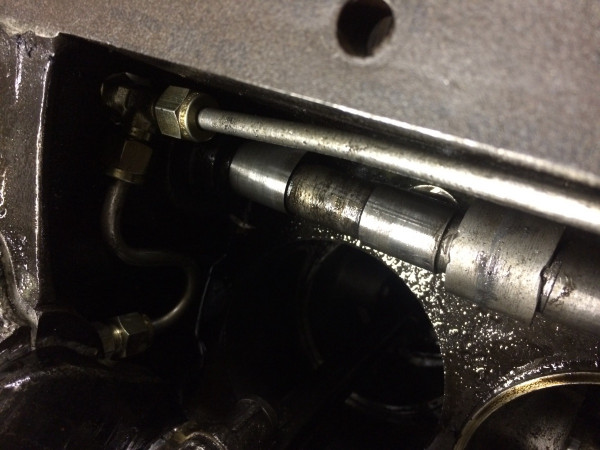

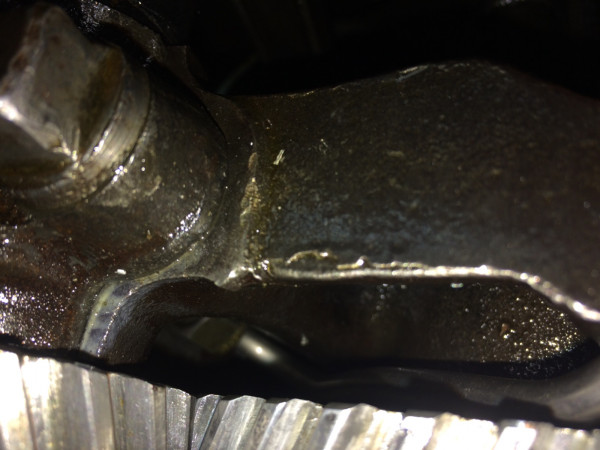

Front  main bearing (not really easy to see
Front main bearing (not really easy to see

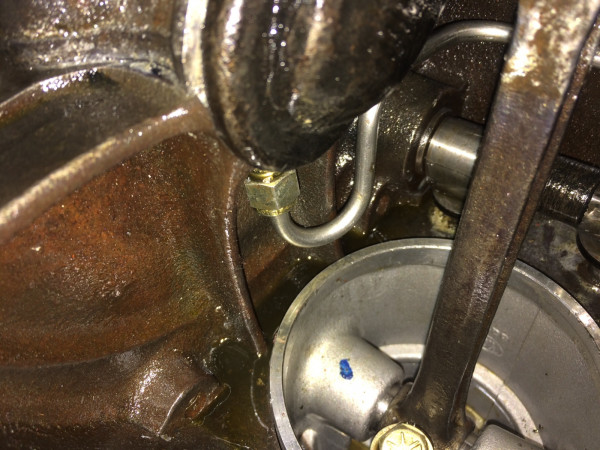

Rear  main bearing
Rear main bearing

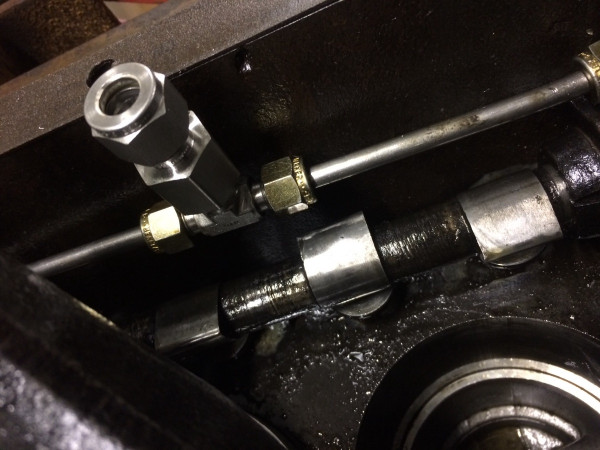

Line connection
Line connection
Attachments

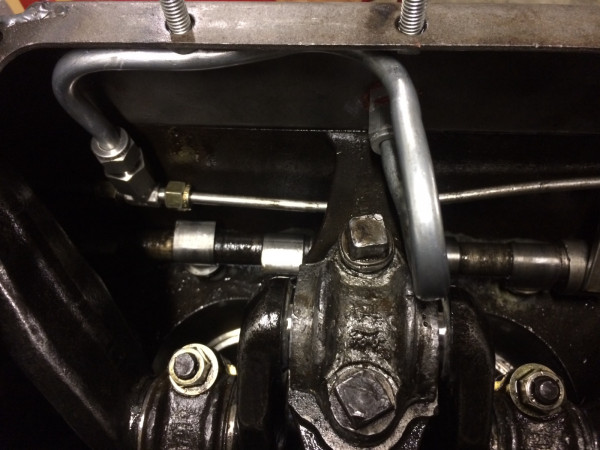

Centre main bearing
Centre main bearing


Joe Bell
Posts: 380
Joined: Thu Feb 21, 2019 1:20 pm
First Name: Joe
Last Name: Bell
Location: Tiffin Ohio
MTFCI Number: 24066

Re: My approach to pressure oil lines

Post by Joe Bell » Sun Apr 05, 2020 3:02 pm

Those are the good fittings!!


SurfCityGene
Posts: 264
Joined: Wed Jan 23, 2019 3:00 pm
First Name: Gene
Last Name: Carrothers
Location: Huntington Beach, Ca
MTFCA Number: 22905
MTFCI Number: 23068
Board Member Since: 1999

Re: My approach to pressure oil lines

Post by SurfCityGene » Sun Apr 05, 2020 3:48 pm

Those are the BEST Fittings and a Nice job forming the lines!!
1912 Torpedo Roadster


Scott_Conger
Posts: 2687
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: My approach to pressure oil lines

Post by Scott_Conger » Sun Apr 05, 2020 4:11 pm

Yes, they are the best fittings. Now, how many have seen the proprietary wrench(s) and gap gauge available for them and when should it be used and when should it NOT be used? Just a little trivia from someone who spent much of their career using them...

Les

nice work and no small task working with tha SS tubing...
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


Shane Lach
Posts: 193
Joined: Sun Jan 06, 2019 2:36 pm
First Name: Shane
Last Name: Lach
Location: Milford, NH

Re: My approach to pressure oil lines

Post by Shane Lach » Sun Apr 05, 2020 4:25 pm

What kind of fittings are they?


Topic author
Les Schubert
Posts: 526
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: My approach to pressure oil lines

Post by Les Schubert » Sun Apr 05, 2020 4:33 pm

Swagelok. Not cheap but ultimately easy to use. Actually the tubing is just galvanized steel. The fittings are SS. Fortunately available off the shelf locally. Over the years we used a LOT of them at the shop I had.

User avatar

kelly mt
Posts: 115
Joined: Sun Jan 06, 2019 2:55 pm
First Name: Pat
Last Name: Kelly
Location: Noxon MT

Re: My approach to pressure oil lines

Post by kelly mt » Sun Apr 05, 2020 4:42 pm

Nice looking work.


Kerry
Posts: 392
Joined: Mon Jan 07, 2019 2:42 pm
First Name: Frank
Last Name: van Ekeren
Location: Rosedale Vic Australia

Re: My approach to pressure oil lines

Post by Kerry » Sun Apr 05, 2020 5:07 pm

Les.
I don't like being picky but I hate seeing things that can give a heap of grief down the track, your rods are around the wrong way and no oil holes in the pistons for the wrist pins. :(


Topic author
Les Schubert
Posts: 526
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: My approach to pressure oil lines

Post by Les Schubert » Sun Apr 05, 2020 6:38 pm

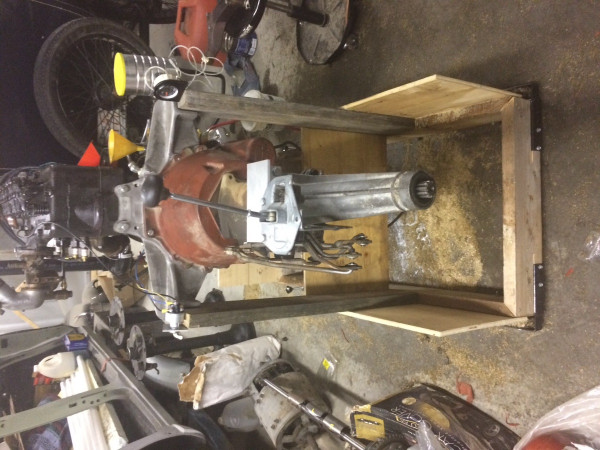

Just about ready to light it up!!


Dan McEachern
Posts: 334
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
Location: ALAMEDA,CA,USA

Re: My approach to pressure oil lines

Post by Dan McEachern » Sun Apr 05, 2020 11:22 pm

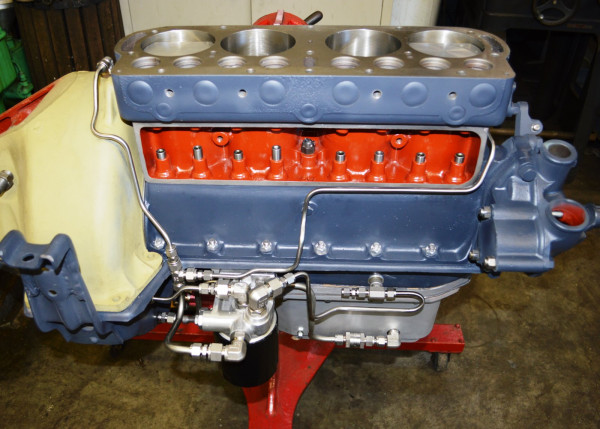

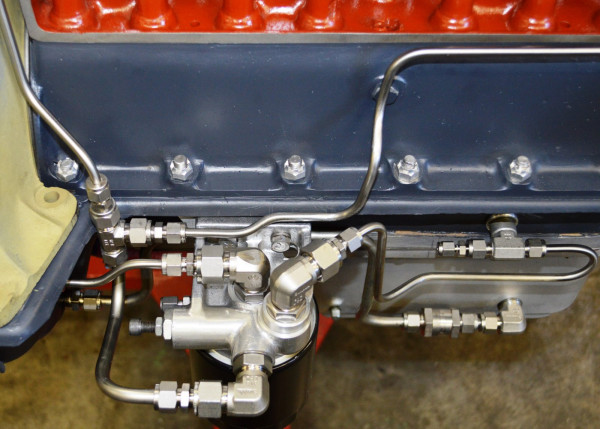

A different outside view. Did this one a few years ago. All stainless- the Swageloc guy loved me!
OIL Filter Plumbing.JPG
OIL Filter Plumbing 2.JPG


Scott_Conger
Posts: 2687
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: My approach to pressure oil lines

Post by Scott_Conger » Mon Apr 06, 2020 10:08 am

Wow Les, indeed he did!

That's a lot of pricey bling on display. The engine's not so bad, either!
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!

User avatar

Susanne
Posts: 357
Joined: Sat Apr 13, 2019 6:06 pm
First Name: Susanne
Last Name: Rohner
Location: Northeastern California
MTFCA Number: 464
MTFCA Life Member: YES
Board Member Since: 1999
Contact:

Re: My approach to pressure oil lines

Post by Susanne » Tue Apr 07, 2020 7:42 pm

What are you using for an oil pump, and how do you have it routed? I'm way new to pressure oil, and would rather not cook a new and good block on my first foray....


Topic author
Les Schubert
Posts: 526
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: My approach to pressure oil lines

Post by Les Schubert » Tue Apr 07, 2020 11:11 pm

I sent you a email


Tbz4u
Posts: 191
Joined: Tue Jan 08, 2019 12:26 am
First Name: Robert
Last Name: Weitzel
Location: Newcastle california
MTFCA Number: 22631
Board Member Since: 2015

Re: My approach to pressure oil lines

Post by Tbz4u » Tue Apr 07, 2020 11:26 pm

DAN how do the swagelok compare to the a n. Fittings


Dan McEachern
Posts: 334
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
Location: ALAMEDA,CA,USA

Re: My approach to pressure oil lines

Post by Dan McEachern » Wed Apr 08, 2020 2:24 am

AN fittings use a 37 degree flare as the sealing surface and were developed during WW2 as an Army-Navy (AN) spec for aircraft use. Swagelok tube fittings use a 2 piece ferrule similar to a commercial compression fitting but are manufactured to a much higher quality level, and are generally available in Stainless, brass and steel. They are used a lot in the chemical process industry and anywhere high reliability is needed.

Post Reply Previous topicNext topic
