Rear lowering brackets

Post by BillyBobsSpeedShop » Sun May 10, 2020 11:07 pm

So I am was curious why no one produces rear lowering brackets for a 26-27 T? I've seen the brackets on eBay that Bill sales and they look great but was hoping to find a set for my 26. I understand the rear crossmember is different in the later cars but could a laser cut bracket be made and used for the later crossmember?

If anyone has any information on either the drawings for a bracket (early crossmember bracket will work) and instructions on where to cut the frame that would be very helpful.

Thank you

User avatar

TRDxB2
Posts: 983
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
Location: Moline IL
Board Member Since: 2018

Re: Rear lowering brackets

Post by TRDxB2 » Mon May 11, 2020 1:12 am

I believe this is want your looking to know (captured from MTFCA)
This is what I wish I could have - I understand the something like these extensions were available as an accessory
Attachments
Nicely done.jpg


Harry Lillo
Posts: 62
Joined: Fri Jan 04, 2019 10:18 pm
First Name: Harry
Last Name: Lillo
Location: Calgary
MTFCA Number: 13996

Re: Rear lowering brackets

Post by Harry Lillo » Mon May 11, 2020 11:04 am

Another solution is to make a new rear main leaf with reversed eyes and a lower arch.
I have two cars running with this setup. It gives you about a four inch drop.
The remaining leaves need to be re-arched in a hydraulic press which takes some time but is worth the effort.
We are fortunate to have a spring shop here in Calgary that will make the main leaf for us.
Harry

User avatar

Henry K. Lee
Posts: 3019
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
Location: South Pittsburg, TN
MTFCA Number: 479
MTFCA Life Member: YES

Re: Rear lowering brackets

Post by Henry K. Lee » Mon May 11, 2020 11:06 am

I have listed them many times with few takers. Two sets remain.

Hank

User avatar

TRDxB2
Posts: 983
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
Location: Moline IL
Board Member Since: 2018

Re: Rear lowering brackets

Post by TRDxB2 » Mon May 11, 2020 11:53 am

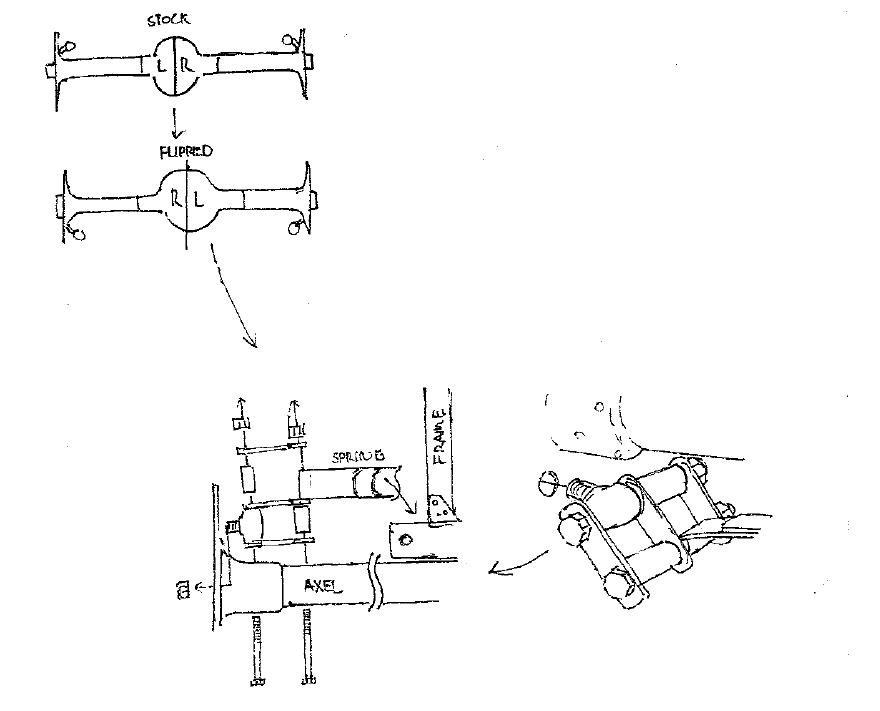

Other methods
Chasis rear.jpg
Chasis rear.jpg (63.38 KiB) Viewed 1153 times
http://www.mtfca.com/discus/messages/80 ... 1242265839


tdump
Posts: 575
Joined: Sun Jan 06, 2019 7:00 pm
First Name: Mack
Last Name: Cole
Location: North Carolina

Re: Rear lowering brackets

Post by tdump » Mon May 11, 2020 4:38 pm

Dang,I wish I had known about that method when I was working on the rear axle of my T. During the assembly that woulda been the time to reverse the houseings.
If you can't help em, don't hinder em'


Topic author
BillyBobsSpeedShop
Posts: 37
Joined: Fri Jan 18, 2019 11:29 pm
First Name: Bill
Last Name: Webb
Location: Nc

Re: Rear lowering brackets

Post by BillyBobsSpeedShop » Mon May 11, 2020 6:08 pm

Hank sent you a PM about the brackets.

Everyone thank you for the information. If anyone has additional info please add.

Thank you.

Was hoping to make a set like below but maybe with more drop

User avatar

TRDxB2
Posts: 983
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
Location: Moline IL
Board Member Since: 2018

Re: Rear lowering brackets

Post by TRDxB2 » Mon May 11, 2020 6:42 pm

I was told by a speedster guy that the front drop should be slightly lower than the rear. More drop?
Z drop rear 2.jpg
Good YOUTUBE Video drop front and back https://www.youtube.com/watch?v=wKtB6mmj6eY
Attachments
YOUTUBE drop.jpg


tdump
Posts: 575
Joined: Sun Jan 06, 2019 7:00 pm
First Name: Mack
Last Name: Cole
Location: North Carolina

Re: Rear lowering brackets

Post by tdump » Mon May 11, 2020 8:33 pm

That 3rd pic that Frank just posted is the way I would have done mine had I not been iffy about cutting up a T chassis.The way I did things is reversable at whatever point it may be feaseable
If you can't help em, don't hinder em'

User avatar

TRDxB2
Posts: 983
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
Location: Moline IL
Board Member Since: 2018

Re: Rear lowering brackets

Post by TRDxB2 » Mon May 11, 2020 9:04 pm

Lots of beat-up frames around that could be used - Z bracket needs frame cut. But is it advisable to weld vanadium steel like that (3 pic)


Kevin Pharis
Posts: 360
Joined: Thu Jan 10, 2019 3:54 pm
First Name: Kevin
Last Name: Pharis
Location: Sacramento CA

Re: Rear lowering brackets

Post by Kevin Pharis » Tue May 12, 2020 12:23 am

The sweeping Z is a nice touch on an exposed frame, but can be in the way if you have to push the seats back to clear long legs. And can also be a bit sketchy if your welding skills are a bit... sketchy😬

I went with a strap iron lowering brackets as I needed extra vertical clearance for my oval fuel tank. The brackets are bent up from 2 laminated strips of 1/4” thick strap iron that sandwich the top and bottom frame rails. The fuel tank brackets double as reinforcements for the lowering brackets. All bolted together...
Attachments


Topic author
BillyBobsSpeedShop
Posts: 37
Joined: Fri Jan 18, 2019 11:29 pm
First Name: Bill
Last Name: Webb
Location: Nc

Re: Rear lowering brackets

Post by BillyBobsSpeedShop » Tue May 12, 2020 10:42 am

Kevin
Interesting setup. Looks great.

User avatar

TRDxB2
Posts: 983
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
Location: Moline IL
Board Member Since: 2018

Re: Rear lowering brackets

Post by TRDxB2 » Tue May 12, 2020 11:10 am

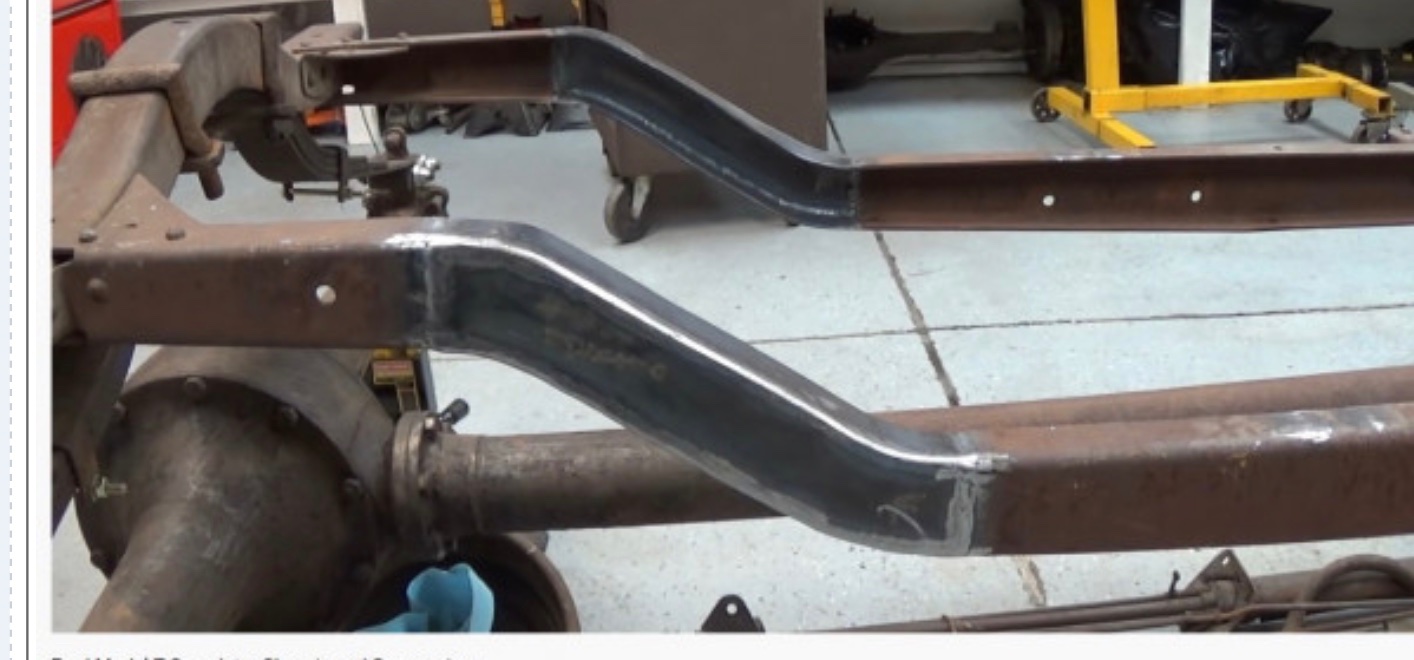

Sweeping Z variant
Attachments


Dropacent
Posts: 1208
Joined: Sun Jan 06, 2019 11:39 am
First Name: Tim
Last Name: Morsher
Location: Norwalk Ohio

Re: Rear lowering brackets

Post by Dropacent » Tue May 12, 2020 12:52 pm

I don’t think this example is very safe. I’d never let a loved one use it. I think it could be saved with added fishplate inside, outside or both. jMHO


Kevin Pharis
Posts: 360
Joined: Thu Jan 10, 2019 3:54 pm
First Name: Kevin
Last Name: Pharis
Location: Sacramento CA

Re: Rear lowering brackets

Post by Kevin Pharis » Tue May 12, 2020 7:38 pm

BillyBobsSpeedShop wrote:
Tue May 12, 2020 10:42 am
Kevin
Interesting setup. Looks great.
I had to figure something out as I didn’t have any 3/4” plate to torch the brackets out of... ;) :roll:


Les Schubert
Posts: 536
Joined: Thu Jan 10, 2019 5:47 pm
First Name: Les
Last Name: Schubert
Location: Calgary

Re: Rear lowering brackets

Post by Les Schubert » Tue May 12, 2020 9:14 pm

A word of caution when you are lowering your T speedster, if you get a bit carried away it is possible to rip out the oil drain plug loading into your trailer. I learned this the hard way!!


Topic author
BillyBobsSpeedShop
Posts: 37
Joined: Fri Jan 18, 2019 11:29 pm
First Name: Bill
Last Name: Webb
Location: Nc

Re: Rear lowering brackets

Post by BillyBobsSpeedShop » Tue May 12, 2020 10:35 pm

Great info everyone! Really enjoy seeing the different options and approaches to lowering the rear!

User avatar

AndreFordT
Posts: 214
Joined: Sun Jan 06, 2019 12:25 pm
First Name: Andre
Last Name: Valkenaers
Location: Scherpenheuvel
MTFCA Number: 23792
MTFCI Number: 19330

Re: Rear lowering brackets

Post by AndreFordT » Wed May 13, 2020 2:33 am

Two year ago I rebuild a 1920 frame from a speedster.
The change was 5" .
The original frame was rusted so far that it needed a replacement.
The rear is done as the old one . For the front I used parts I found 5 or 6 years ago on Ebay.

Good luck
Andre
Belgium
Attachments

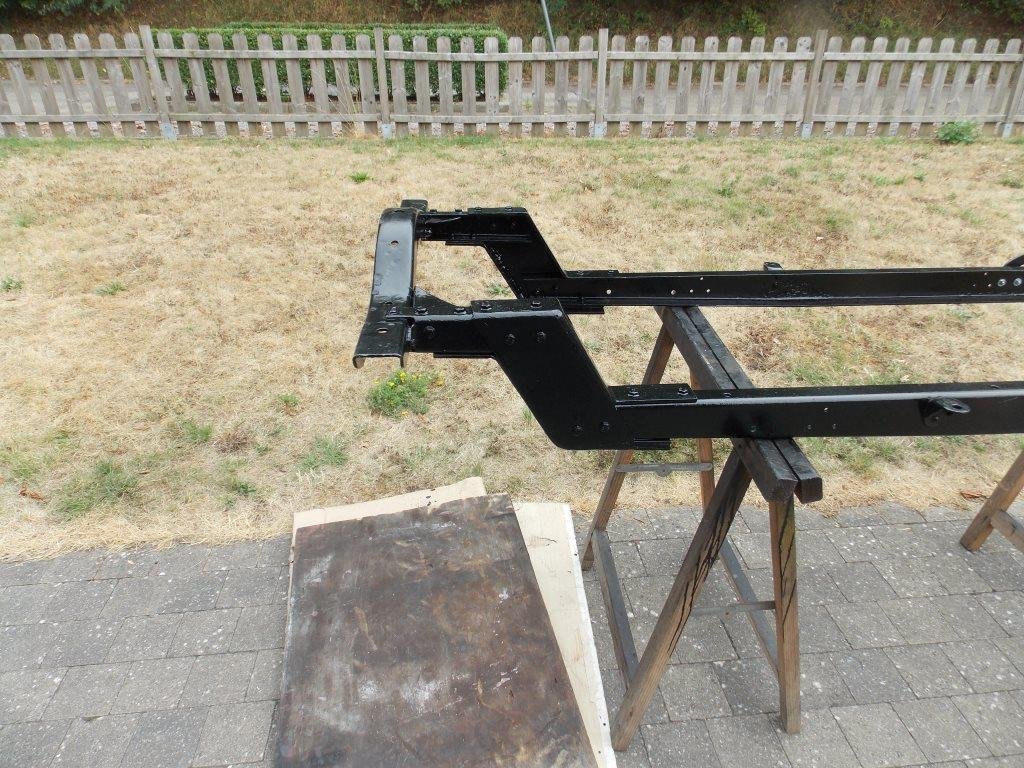

rear part of the frame
rear part of the frame
Brackets
Brackets
Watch the spindles
Watch the spindles

User avatar

henryford2
Posts: 328
Joined: Sun Jan 06, 2019 4:14 pm
First Name: Joseph
Last Name: Andulics
Location: North Ridgeville, OH
MTFCA Number: 9766
Contact:

Re: Rear lowering brackets

Post by henryford2 » Wed May 13, 2020 11:22 am

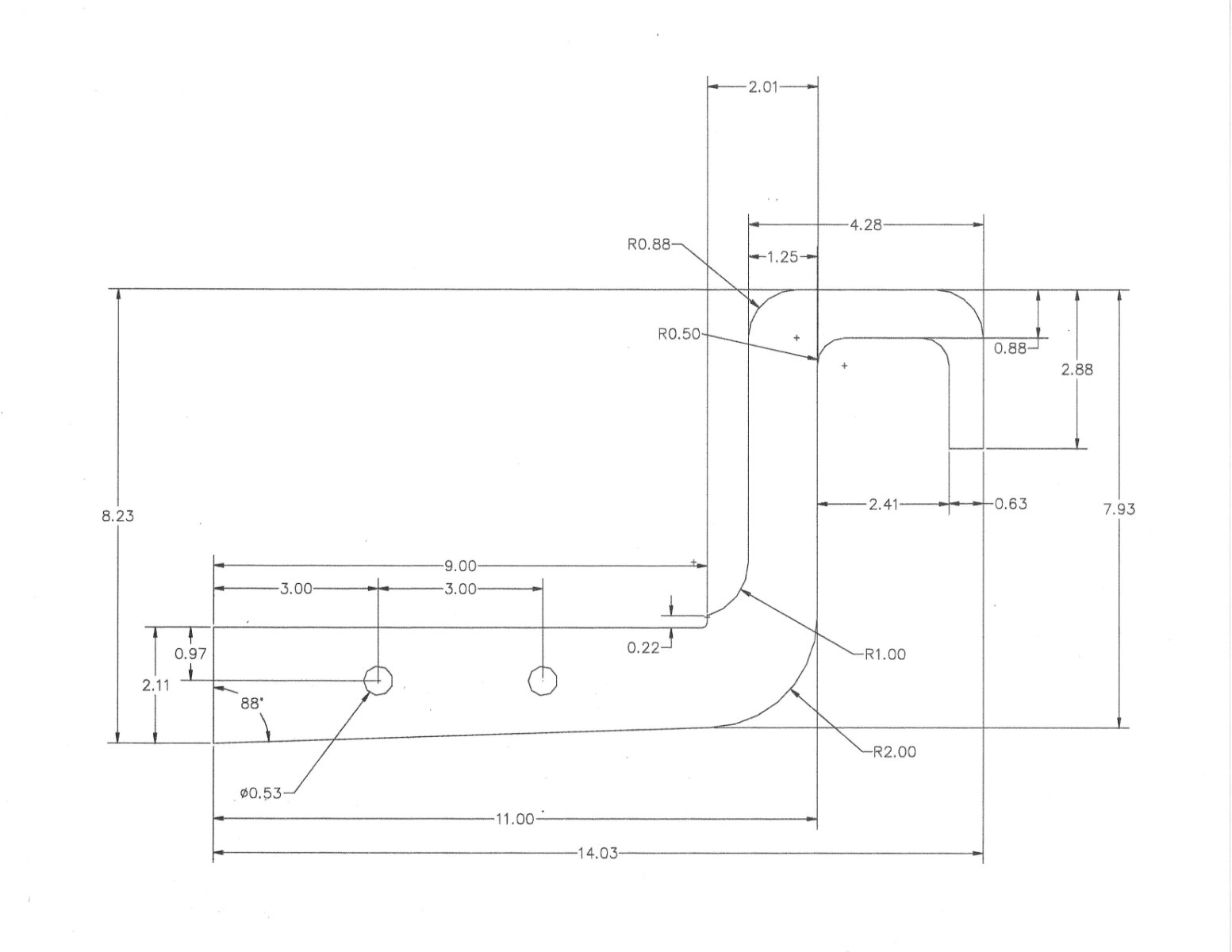

This may help, this is the drawing for the brackets pictured. It's a 5" drop, anymore than that you're skating on thin ice. Enjoy
5 in frame drop.jpg
Always looking for vintage Whizzer engines, bikes & parts. What do you have?


Topic author
BillyBobsSpeedShop
Posts: 37
Joined: Fri Jan 18, 2019 11:29 pm
First Name: Bill
Last Name: Webb
Location: Nc

Re: Rear lowering brackets

Post by BillyBobsSpeedShop » Wed May 13, 2020 11:25 am

Thank you perfect!!


D Stroud
Posts: 888
Joined: Sun Jan 06, 2019 10:45 am
First Name: David
Last Name: Stroud
Location: Mound City, MO 64470
Board Member Since: 2011

Re: Rear lowering brackets

Post by D Stroud » Thu May 14, 2020 6:04 am

Don't EVER box just a portion of a frame rail!!! A lot of people think that is necessary, but while that indeed creates a very strong joint, it also creates a box tube that will not flex while the rest of the frame will. That will cause cracks in the frame at the end of the boxed section in the frame flanges and it will be worse than if it wasn't boxed at all. Welding frames isn't rocket science, as a lot of people think. Most frames aren't much more than mild steel, until you get into semi truck stuff, which are high tensile steel. That isn't a problem either if you use the correct welding rod. Just a SMALL reinforcement on the inside of the joint on the bottom flange or the inside of the rail (so called "fishplate", which shouldn't be any thicker than the frame itself, if that thick) is all that is needed, and that is only if you don't get a 100% weld joint. In the last 40+ years I have seen all kinds of "NECESSARY" reinforced weld joints that either failed or were about to. JMHO Dave
1925 mostly original coupe.


dmdeaton
Posts: 246
Joined: Mon Oct 21, 2019 9:43 pm
First Name: Danny
Last Name: Deaton
Location: Ohio

Re: Rear lowering brackets

Post by dmdeaton » Thu May 14, 2020 1:34 pm
