Snow Broke the Top Bow

Post by Rich Eagle » Tue May 12, 2020 6:20 pm

Some of you may recall the photos of my '14 in the snow for Christmas. We presumed the new top irons and bows would withstand any moderate snow we received. This is the story of making the irons:
http://www.mtfca.com/discus/messages/70 ... 1506904799
It turned out to be an unusually snowy Winter. The 11" or so sat for some time and absorbed a lot of moisture. While everything looked fine except for a lot of sag we didn't worry too much. Upon doing some other work this Spring I noticed a definite problem with the second bow.

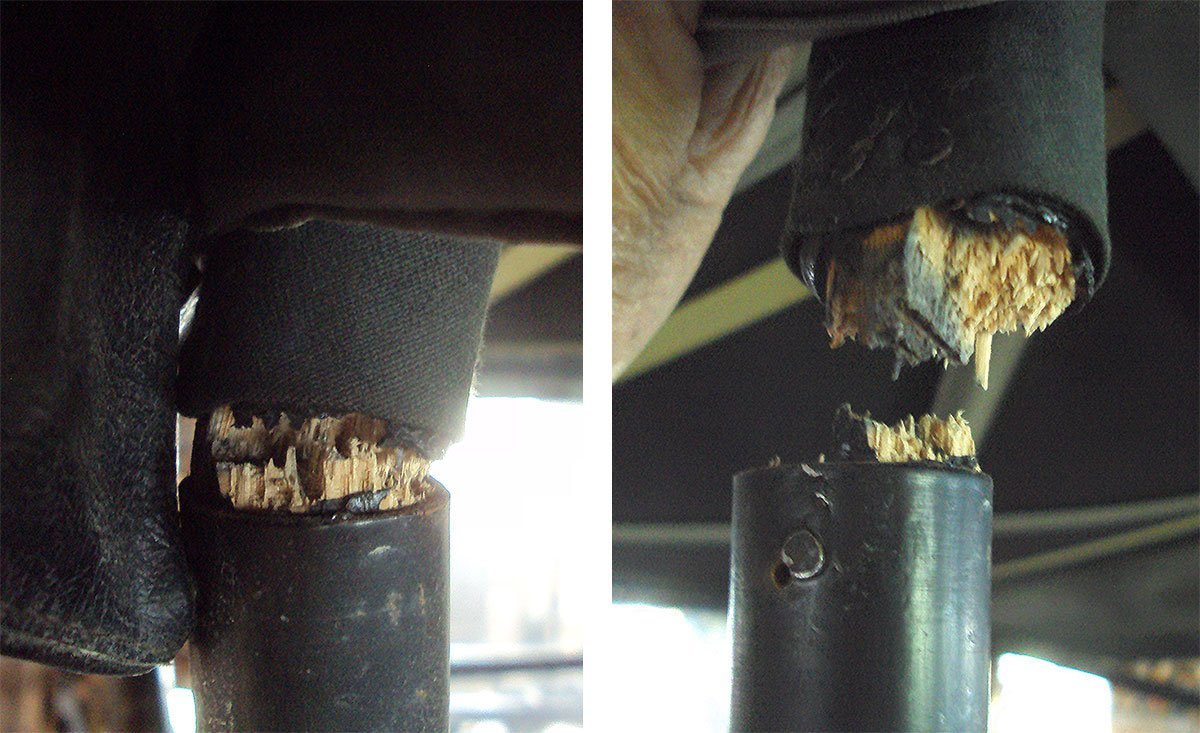

That bow was perfectly vertical to begin with but somewhere in the fabric installation or shortly after it found itself at a slight angle. As wet snow can weigh as much as 20 lbs per cubic foot and that bow was supporting about 20 sq ft of it the 400 lbs was too much for it. I believe if the bow had remained perfectly vertical it would have withstood the weight. It is typical for oak to fracture some when steam bent but I have never seen them break like that. Then again I've never abused them that much either.

This would have been a disappointment but for the fact that this car was built with all kinds of battle scars on various components. I was more than happy to make a period correct splice like I have seen on tops before. A piece of 1 x 3/16 steel bar should be strong enough to last many years. It even resembles some of the top designs of more expensive cars of the same era.
I had to chuckle while drilling the bows for the wood screws. I was drilling through the "bow drill". :lol:
Well, you have to enjoy what you can.
I sometimes wonder why after 58 years of playing with old cars I haven't gotten tired of it. Today I realized that changing things up a little may be part of it. I enjoy working with the character of these cars as they evolved through the years with the dents and scrapes and makeshift repairs. This old top has a charming hole it the pad. I certainly wouldn't put one there but I kind of like that it's there.
