Front axle?

Post by Wwbbim » Fri May 22, 2020 4:48 pm

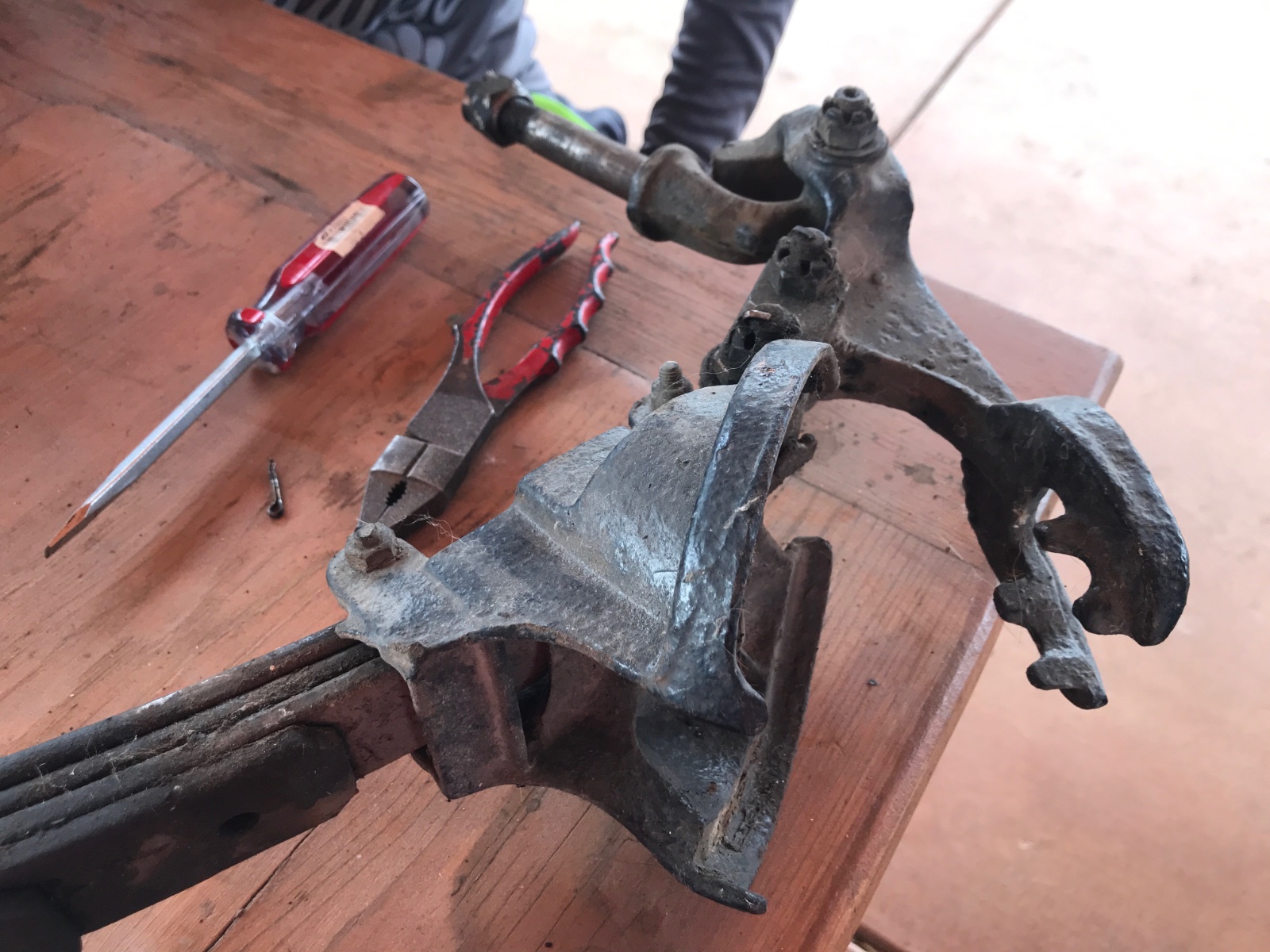

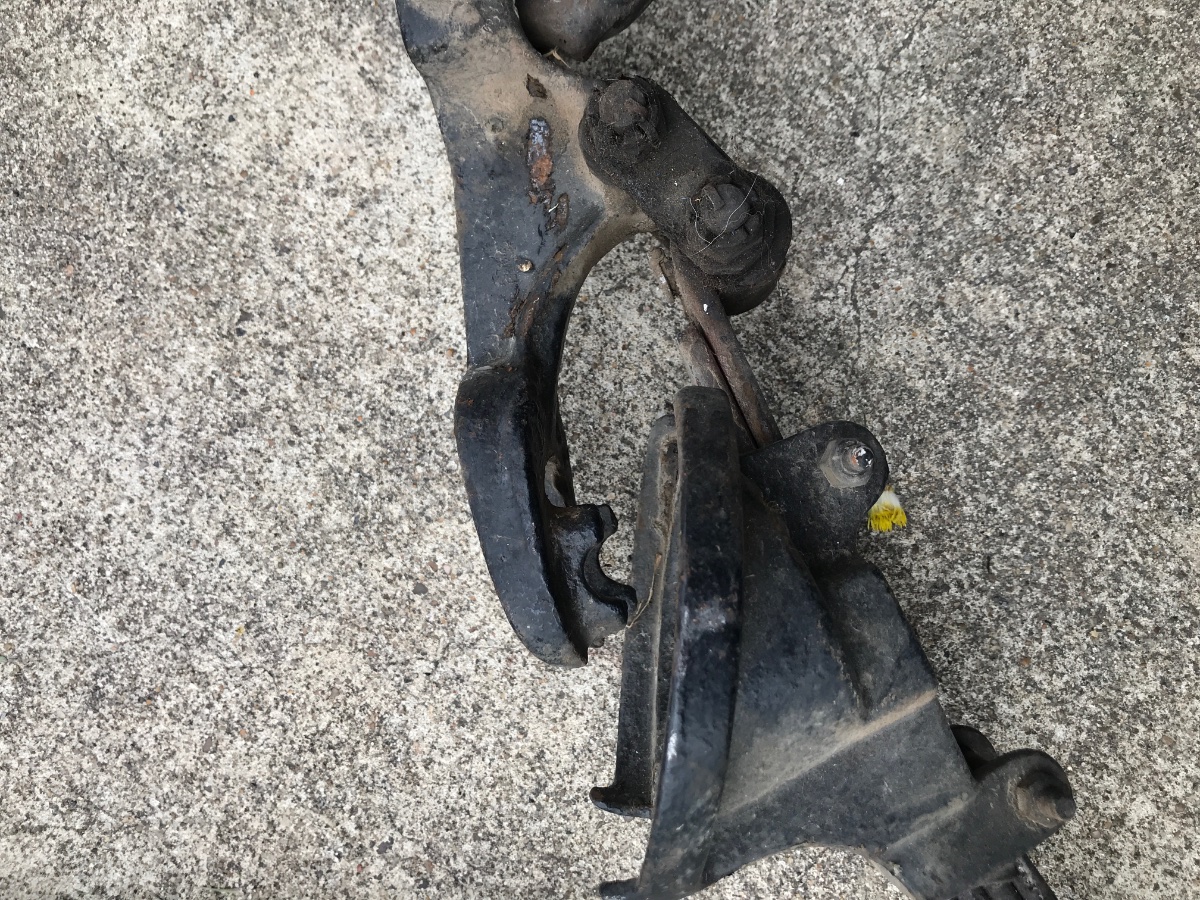

So I am confused about 4 different parts on my 1922 roadsters front axle. When I got the old parts, this is how it came assembled. I have redone the parts but am still co fused if they go like that? It is the parts that attach to the front axle spring(where it went when I got it) and attached to the actual axle.[image][image][/image][/image]
Attachments
Top

Dan Hatch
Posts: 5018
Joined: Tue Jan 08, 2019 7:31 pm
First Name: Dan
Last Name: Hatch
Location: Alabama

Re: Front axle?

Post by Dan Hatch » Fri May 22, 2020 4:56 pm

Where is the coil spring?
Top

Topic author
Wwbbim
Posts: 15
Joined: Fri Jan 17, 2020 1:00 pm
First Name: Jace
Last Name: Jensen
* REQUIRED* Type and Year of Model Ts owned: 1922 Roadster
Location: Robstown

Re: Front axle?

Post by Wwbbim » Fri May 22, 2020 4:59 pm

Re: Dan Hatch it was separated at the time we took the pictures
Top

Mustang1964s
Posts: 268
Joined: Sun Jan 06, 2019 10:48 pm
First Name: Steve
Last Name: Bourgeois
* REQUIRED* Type and Year of Model Ts owned: 1914, 1926, 1927
Location: Waco, TX
Board Member Since: 2007

Re: Front axle?

Post by Mustang1964s » Fri May 22, 2020 5:01 pm

Take a look at this thread.
http://www.mtfca.com/discus/messages/25 ... 1339967930

It shows some good close ups.
Top

Topic author
Wwbbim
Posts: 15
Joined: Fri Jan 17, 2020 1:00 pm
First Name: Jace
Last Name: Jensen
* REQUIRED* Type and Year of Model Ts owned: 1922 Roadster
Location: Robstown

Re: Front axle?

Post by Wwbbim » Fri May 22, 2020 5:04 pm

Thanks Mustang 64‘s that makes a lot more sense
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Front axle?

Post by TRDxB2 » Fri May 22, 2020 10:24 pm

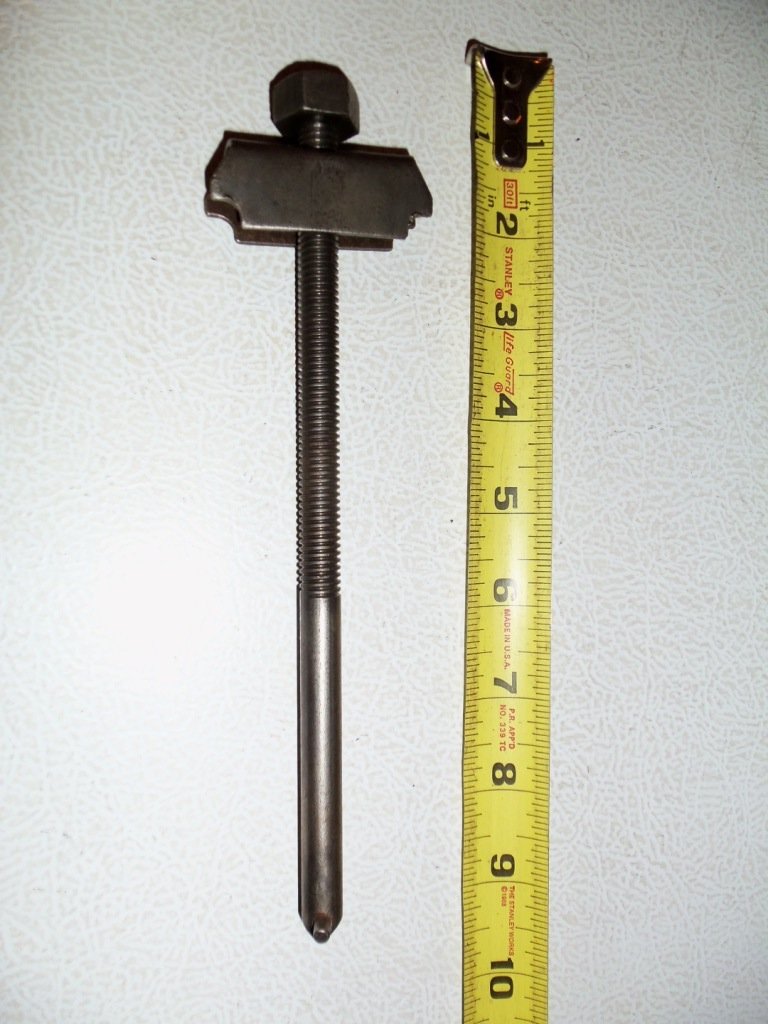

Instructions and a caution. Be careful when installing the spring! If your not going to use the Hasslers you'll need to return the perches to their correct position. Bolts are available from for Lang's.
Attachments
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top
