Frame front corner bracket shape?

Post by ivaldes1 » Mon Jun 08, 2020 10:42 am

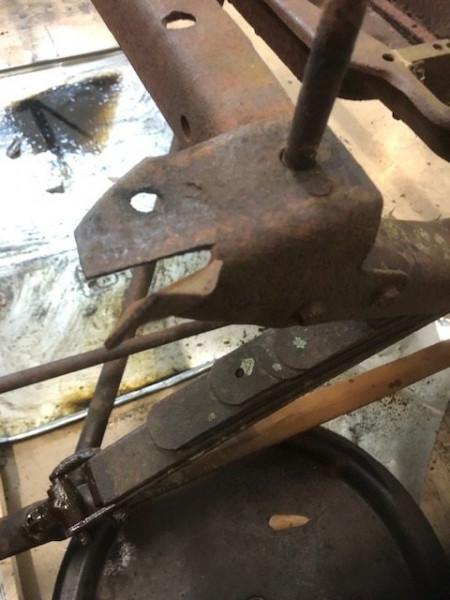

Hi, I am trying to figure out what the shape of this frame front corner bracket is supposed to be?
Attachments
Top
User avatar

Mark Gregush
Posts: 5370
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
* REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
Location: Portland Or
Board Member Since: 1999

Re: Frame front corner bracket shape?

Post by Mark Gregush » Mon Jun 08, 2020 11:55 am

Looks like maybe 26/27 2859-B?
http://www.mtfca.com/discus/messages/11 ... 1284914366
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1948 Ford F2 pickup
Top
User avatar

Henry K. Lee
Posts: 5474
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
* REQUIRED* Type and Year of Model Ts owned: Many
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: Frame front corner bracket shape?

Post by Henry K. Lee » Mon Jun 08, 2020 12:09 pm

Those are 26/27 fender supports and depending on the style of Speedster you are building can be set flat for some funky headlight mounts.

Hank
Top

Wayne Sheldon
Posts: 4249
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
* REQUIRED* Type and Year of Model Ts owned: 1915 Runabout 1913 Speedster
Location: Grass Valley California, USA
Board Member Since: 2005

Re: Frame front corner bracket shape?

Post by Wayne Sheldon » Mon Jun 08, 2020 8:47 pm

'26/'27 model frame to fender mount, been butchered and bent. Earlier than '26 did not have such fenders or mounts. Depending upon the speedster you plan to build, you could straighten and repair them, or further alter and use them. or cut off even with the outside of the frame rail and treat it like an earlier frame.
