1915 Firewall bracket: Correct fasteners?

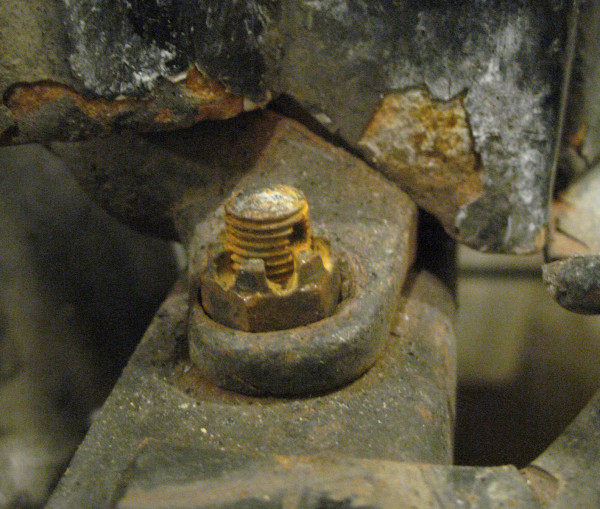

What goes here?
I suspect a nut sitting down in a recess where you have trouble getting a wrench on it may not be correct.
The inevitable often happens.
1915 Runabout
1923 Touring
1915 Runabout
1923 Touring
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: 1915 Firewall bracket: Correct fasteners?
Steve, my recollection is the nuts do go on top as you show. I could be wrong. If the depth of the machining around the hole is a concern, put a spring washer under the nut. You have plenty of length to still be able to insert a split pin.
Allan from down under.
Allan from down under.
-
Original Smith
- Posts: 3699
- Joined: Tue Jan 08, 2019 10:43 am
- First Name: Larry
- Last Name: Smith
- * REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
- Location: Lomita, California
- MTFCA Life Member: YES
Re: 1915 Firewall bracket: Correct fasteners?
The nut in the picture above is for the radiator. If you put the bolt in upside down, how are you going to fit the hood board?
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: 1915 Firewall bracket: Correct fasteners?

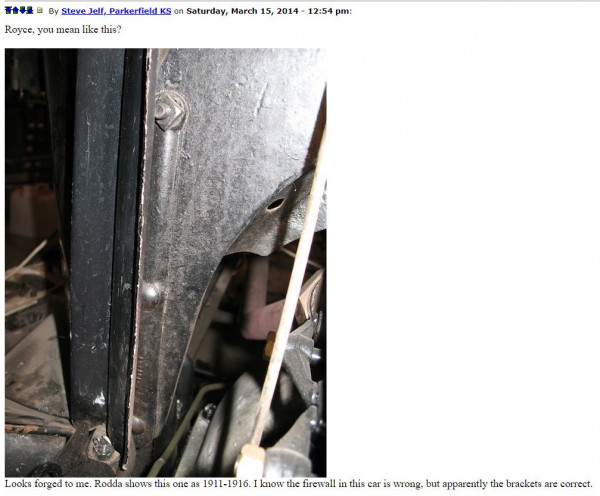

I have always done it that way with the nut topside. I don't know why. If it wasn't right someone would have called you on it back here:
http://www.mtfca.com/discus/messages/41 ... 1394896234
http://www.mtfca.com/discus/messages/41 ... 1394896234
When did I do that?
-
Kerry
- Posts: 1447
- Joined: Mon Jan 07, 2019 2:42 pm
- First Name: Frank
- Last Name: van Ekeren
- * REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
- Location: Rosedale Vic Australia
Re: 1915 Firewall bracket: Correct fasteners?
Although mine is Canadian, the nut is on the inside of the frame rail and the hood board partly covers the bolt head.
-
John kuehn
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: 1915 Firewall bracket: Correct fasteners?
Were there castle nuts that were a little taller? It would need to be a nut that’s tall enough yet be a good tight fit and be able put in a cotter key. The nut that’s on in the pic would need a washer under it to have a good fit and have the cotter pin hole inline with he nut groove and not be to low. But that’s to much perfection to be expected I guess.
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: 1915 Firewall bracket: Correct fasteners?

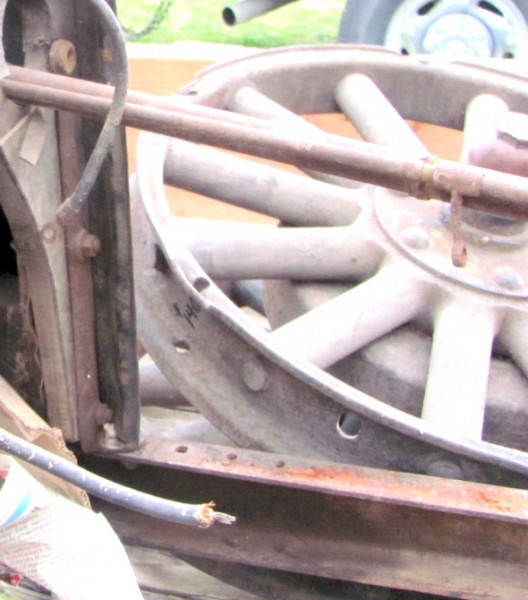

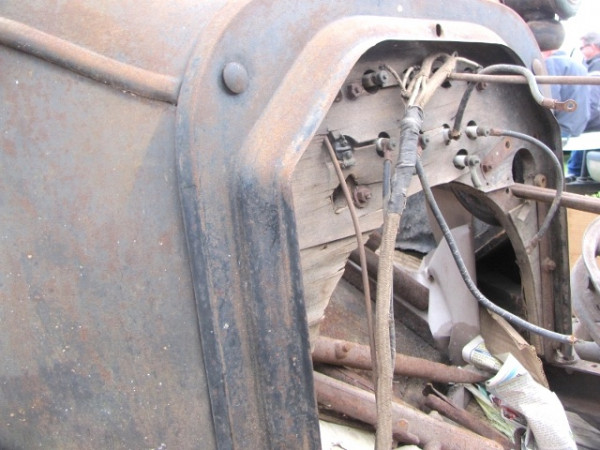

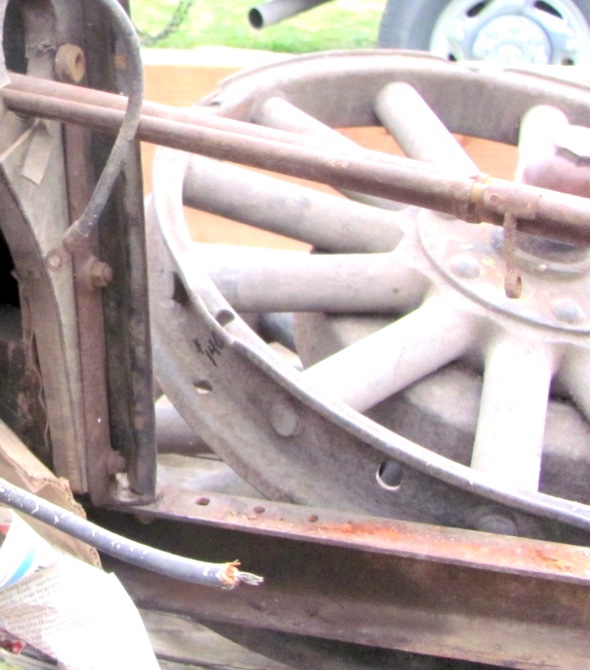

This very original '15 body was at Chickasha a few years ago...
Sure seems that the nut is under the frame, as there would be interference with the hood former if the castle nut was above.
Sure seems that the nut is under the frame, as there would be interference with the hood former if the castle nut was above.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
CudaMan
- Posts: 2531
- Joined: Fri Jan 04, 2019 4:17 pm
- First Name: Mark
- Last Name: Strange
- * REQUIRED* Type and Year of Model Ts owned: 1924 Cut Off Touring (now a pickup)
- Location: Hillsboro, MO
- Board Member Since: 2013
Re: 1915 Firewall bracket: Correct fasteners?

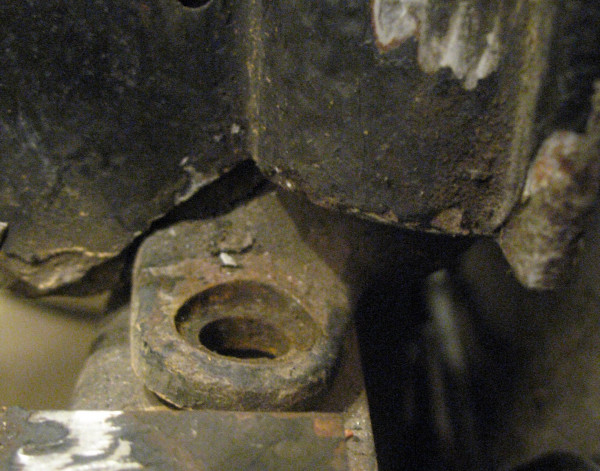

Note how Steve's original bracket is spot faced at the bolt hole so that the bolt head sits flat. The current reproduction brackets that I have seen don't have the spot facing.
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)
