Clutch Drum Puller 5Z314 - Question

Post by Erik Johnson » Mon Sep 07, 2020 10:30 pm

I recently acquired this 5Z314 clutch drum puller at an estate sale of an elderly Model T enthusiast.

Can anyone tell me or post photos of the correct bolts for the puller?

It came with two 3/8" bolts and corresponding castle nuts as shown in the photos.

However, these bolts are too small for the threaded holes in the puller.

The threaded holes in the puller are 13/32" in diameter which seems like an odd size. (A 13/32" drill bit fits in the holes but a 27/64" drill bit does not.)

Based on the few photos of clutch drum pullers I found in the internet, the original/correct bolts are probably only partially threaded so the portion of the bolts protruding from the puller are actually smooth prongs that are inserted in the corresponding holes in the clutch drum.

Worth mentioning: the "Z" is backwards in the "5Z314" that is embossed on the the tool.
Attachments

User avatar

Walter Higgins
Posts: 272
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Walter
Last Name: Higgins
Location: Realville, PA
MTFCA Number: 396
MTFCA Life Member: YES
MTFCI Number: 153

Re: Clutch Drum Puller 5Z314 - Question

Post by Walter Higgins » Mon Sep 07, 2020 10:40 pm

They are 7/16"-20 x 13/16" oal. I'm happy to take additional measurements if you'd like to duplicate them accurately.
Attachments

User avatar

Mark Gregush
Posts: 2801
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Clutch Drum Puller 5Z314 - Question

Post by Mark Gregush » Mon Sep 07, 2020 10:52 pm

They are the same bolts that keep the cam shaft bushing in place.
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1920 Dodge touring
1948 Ford F2 pickup

User avatar

Steve Jelf
Posts: 3301
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Clutch Drum Puller 5Z314 - Question

Post by Steve Jelf » Mon Sep 07, 2020 11:01 pm

Same set screw used in cam bearings. Part #3046. About $3 from the parts dealers. The puller sometimes works but a drum that's really stuck will wreck it and you'll have to devise your own tool or buy one.
IMG_0665 copy.JPG
Home made.

IMG_2625 copy.JPG
Store bought.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

Walter Higgins
Posts: 272
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Walter
Last Name: Higgins
Location: Realville, PA
MTFCA Number: 396
MTFCA Life Member: YES
MTFCI Number: 153

Re: Clutch Drum Puller 5Z314 - Question

Post by Walter Higgins » Mon Sep 07, 2020 11:02 pm

Mark Gregush wrote:
Mon Sep 07, 2020 10:52 pm
They are the same bolts that keep the cam shaft bushing in place.
Ha! Forgot about that -- now I don't have to draw it!


Topic author
Erik Johnson
Posts: 376
Joined: Mon Feb 04, 2019 10:25 pm
First Name: Erik
Last Name: Johnson
Location: Minneapolis, MN

Re: Clutch Drum Puller 5Z314 - Question

Post by Erik Johnson » Mon Sep 07, 2020 11:06 pm

Thank you for all of the replies.

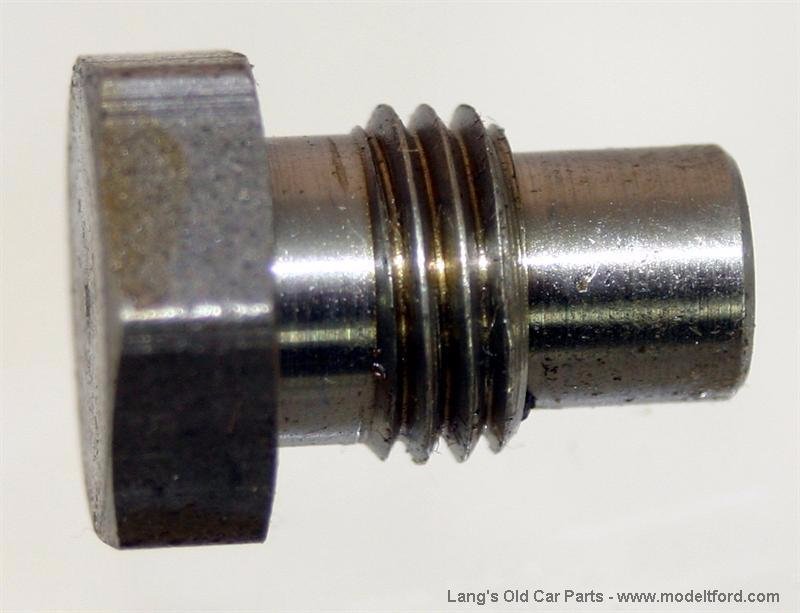

Here is a photo of the set screw that is available from Langs.

I'll have to see if my dad has any NOS or used in his parts stash.

PS: I also realize my mistake in measuring the diameters of the holes. Instead of using drill bits, I should have used my thread gauge and then found a corresponding 7/16" bolt with the same threads.
Attachments
camshaft set screw.jpg


Craig Leach
Posts: 101
Joined: Tue Jan 08, 2019 12:22 am
First Name: craig
Last Name: leach
Location: Laveen Az
MTFCA Number: 26647

Re: Clutch Drum Puller 5Z314 - Question

Post by Craig Leach » Mon Sep 07, 2020 11:52 pm

Hi Erik,
If you have a lathe or know some one with a lathe pick up two grade 8 7/16 bolts and machine the bolts to use. I have used up most of my cam bearing bolts on stuborn clutch hubs trying to pull them shearing them off and bending them. they are very soft. it also helps to make the stem as large as you can where it fits in the clutch basket.

User avatar

Mark Gregush
Posts: 2801
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Clutch Drum Puller 5Z314 - Question

Post by Mark Gregush » Tue Sep 08, 2020 12:08 am

I just barrow the ones from the cam shaft and use them. :) The repos don't have enough threads anyway in my OP. I have pulled the threads just putting them in.
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1920 Dodge touring
1948 Ford F2 pickup

User avatar

Pep C Strebeck
Posts: 228
Joined: Sun Jan 06, 2019 11:12 am
First Name: Joseph
Last Name: M
Location: MI
MTFCA Number: 0

Re: Clutch Drum Puller 5Z314 - Question

Post by Pep C Strebeck » Tue Sep 08, 2020 12:31 am

I had gotten 2 of these from Mark Chaffin (both original, 5-Z-314 marked pullers) and each one had different bolts for pulling the drum. One has the 7/16-20 fine thread and the other has the 7/16-14 coarse thread. The fine thread bolts have a different size head and the pin is a different length, aside from that, the pullers are identical.
"Remember son, there are two ways to do this: The right way, and your way” Thanks Dad, I love you too.

LOOKING FOR A LUFKIN Model 197 Pin Vise Set.


Dan McEachern
Posts: 452
Joined: Sun Jan 06, 2019 11:08 am
First Name: DAN
Last Name: MCEACHERN
Location: ALAMEDA,CA,USA

Re: Clutch Drum Puller 5Z314 - Question

Post by Dan McEachern » Tue Sep 08, 2020 12:54 am

On a hard pull, you are better off using 3/8 bolts with nuts. The pins tend to allow the puller arms to spread out and bend. Just FYI.


John kuehn
Posts: 1445
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Clutch Drum Puller 5Z314 - Question

Post by John kuehn » Tue Sep 08, 2020 9:35 am

Steve is right about those hard pulls. It’s why you occasionally see the original puller ‘spread out’. That’s why the first pics show those 3/8” bolts with nuts on the puller. Just as Dan M. mentions. Sometimes those clutch drums are really tough to get to move.


R.V.Anderson
Posts: 491
Joined: Tue Jan 08, 2019 6:01 pm
First Name: R.V.
Last Name: Anderson
Location: Kennedy, NY

Re: Clutch Drum Puller 5Z314 - Question

Post by R.V.Anderson » Tue Sep 08, 2020 9:57 am

Usually the extreme tightness is caused by a burr that was thrown up during assembly. I've found that to be the case on about 1/3 of the transmissions I've worked on. Nearly all of the drums in this scenario get wrecked during pulling; it's smart to be sure you have a good one on hand as a replcement before you start.

Incidentally, my Ford puller has hardened pins, not bolts, and the holes aren't threaded.
