13T - Requesting 1909-1914 wire harness/engine compartment pic

Post by Darin Hull » Thu Oct 01, 2020 10:21 pm

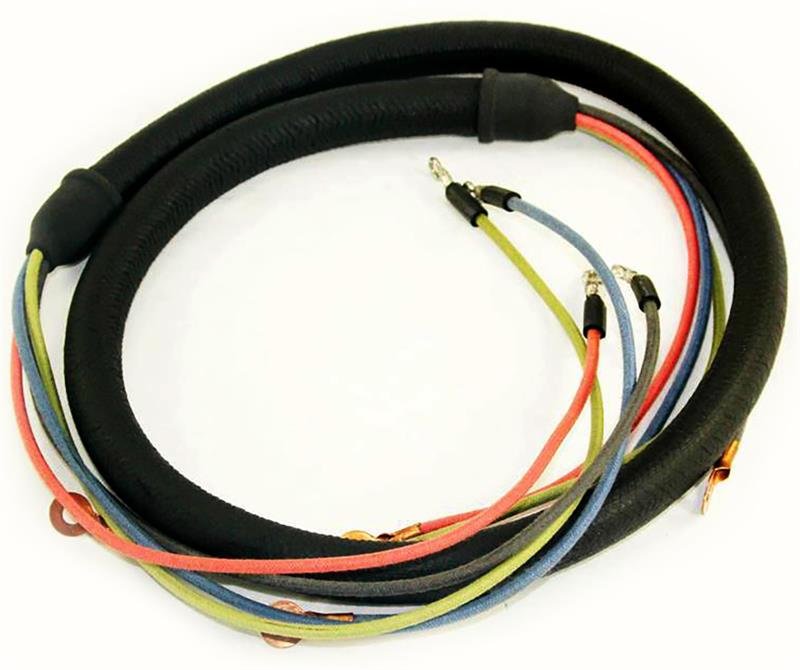

Does anyone have a picture of their wiring harness in the engine compartment if you have it setup pretty close to original? I saw this part from Langs says it's the original style harness for a 1909-1914.

Also, curious how it is hooked up/oriented in the engine compartment. I have a wiring harness which doesn't look like this one and I know I have it routed incorrectly... as I take it around the water outlet side of the block. Curious if anyone else has this original style and how you route it so as not to risk burning it on the exhaust manifold.

Thank you for your time,
Darin
Attachments

User avatar

DanTreace
Posts: 1666
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Contact:

Re: 13T - Requesting 1909-1914 wire harness/engine compartment pic

Post by DanTreace » Fri Oct 02, 2020 9:08 am

This sketch and old photo should help.

470764 (2).jpg





Metal clips under the hood shelf hold the loom to the frame rail.
Scan0806 (2).jpg
Scan0806 (2).jpg (73.59 KiB) Viewed 428 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


Original Smith
Posts: 1771
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: 13T - Requesting 1909-1914 wire harness/engine compartment pic

Post by Original Smith » Fri Oct 02, 2020 10:11 am

There is a small brass clip held on with two small brass round head nails near the #1 spark plug terminal probably about 4" away. Maybe someone has a photo?


Topic author
Darin Hull
Posts: 200
Joined: Fri Apr 17, 2020 2:15 pm
First Name: Darin
Last Name: Hull
Location: Cartersville, GA
MTFCA Number: 29699
MTFCI Number: 25147
Board Member Since: 2010

Re: 13T - Requesting 1909-1914 wire harness/engine compartment pic

Post by Darin Hull » Fri Oct 02, 2020 5:18 pm

Dan, that pic you posted showing the harness going up the firewall is what I was looking for. That makes sense to keep the harness away from the exhaust manifold. I’ll need to find a clip and that magic can happen.

I’ll keep looking for some good pics of restored 09-14 engine compartments but think that explains it.

Thank you,
Darin

User avatar

DanTreace
Posts: 1666
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Contact:

Re: 13T - Requesting 1909-1914 wire harness/engine compartment pic

Post by DanTreace » Fri Oct 02, 2020 6:38 pm

Darin

That clip is up under the hood former so it cannot be seen in photos. According to John Regan, the clip is brass, then later steel, but held with brass roundheaded tacks, and is about 4" or so away and a bit up from the # 1 coil terminal. Lang's make them I believe.



Early wire loom clip and brass clip.jpg
1913 firewall  copy.jpg
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


Topic author
Darin Hull
Posts: 200
Joined: Fri Apr 17, 2020 2:15 pm
First Name: Darin
Last Name: Hull
Location: Cartersville, GA
MTFCA Number: 29699
MTFCI Number: 25147
Board Member Since: 2010

Re: 13T - Requesting 1909-1914 wire harness/engine compartment pic

Post by Darin Hull » Fri Oct 02, 2020 7:07 pm

Dan,

Great help, thank you!

Darin

User avatar

TonyB
Posts: 510
Joined: Fri Jan 04, 2019 11:15 am
First Name: Tony
Last Name: Bowker
Location: Ramona, CA
MTFCA Number: 32
MTFCA Life Member: YES
Board Member Since: 2005

Re: 13T - Requesting 1909-1914 wire harness/engine compartment pic

Post by TonyB » Fri Oct 02, 2020 7:44 pm

While I was working on my 09 I took a photo of Kim Dobbins very original 1910.
Wiring on original 1910
Wiring on original 1910
I duplicated it on my 09 except I never found the correct clip. Hopefully the new owner will find one or make an appropriate clip.
Last edited by TonyB on Sat Oct 03, 2020 11:16 am, edited 1 time in total.
Tony Bowker
La Mesa, California
1914 Touring, 1915 Speedster, 1924 Coupe.


Topic author
Darin Hull
Posts: 200
Joined: Fri Apr 17, 2020 2:15 pm
First Name: Darin
Last Name: Hull
Location: Cartersville, GA
MTFCA Number: 29699
MTFCI Number: 25147
Board Member Since: 2010

Re: 13T - Requesting 1909-1914 wire harness/engine compartment pic

Post by Darin Hull » Sat Oct 03, 2020 12:32 am

Tony,

Another excellent reference pic. Thank you for your time sharing that pic.

Darin
