Help needed to ID year of part

Post by JW21TT » Wed Oct 07, 2020 11:11 am

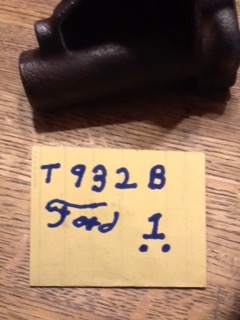

Not sure what year this brkt. Was used any info is appreciated .
Thanks Jim

[image][/image]
Attachments
Top
User avatar

RajoRacer
Posts: 5172
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Help needed to ID year of part

Post by RajoRacer » Wed Oct 07, 2020 11:32 am

A "not-so-close" larger photo of the bracket itself would be helpful - appears to be a standard "black" model up to 1925.
Top

Topic author
JW21TT
Posts: 78
Joined: Mon Jan 07, 2019 5:37 pm
First Name: Jim
Last Name: Williams
* REQUIRED* Type and Year of Model Ts owned: 1921 TT Wrecker 1920 TT Tanker
Location: Baldwinsville NY.
Board Member Since: 2012

Re: Help needed to ID year of part

Post by JW21TT » Wed Oct 07, 2020 11:42 am

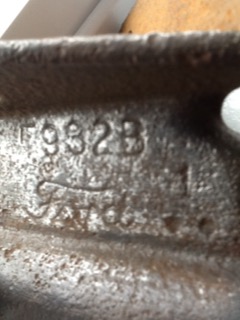

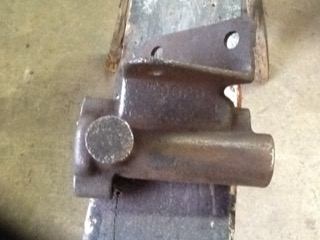

Thanks here is another Plc [image]
[/image]
Attachments
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Help needed to ID year of part

Post by TRDxB2 » Wed Oct 07, 2020 12:48 pm

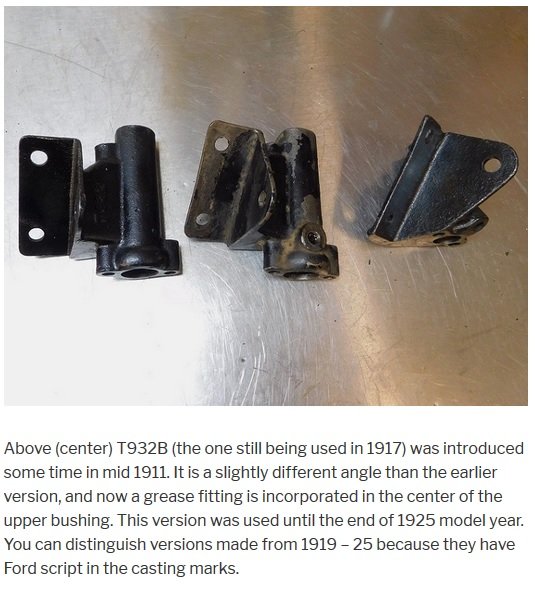

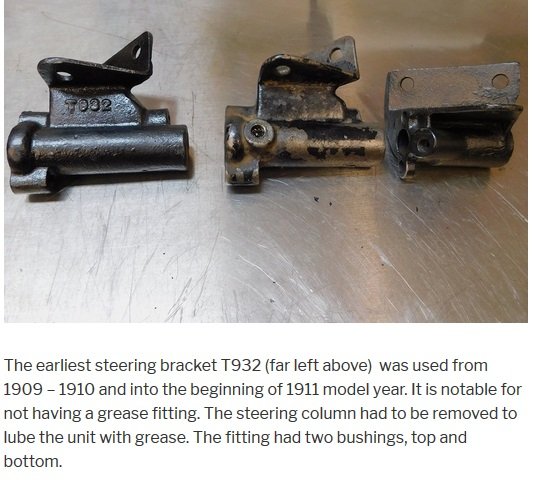

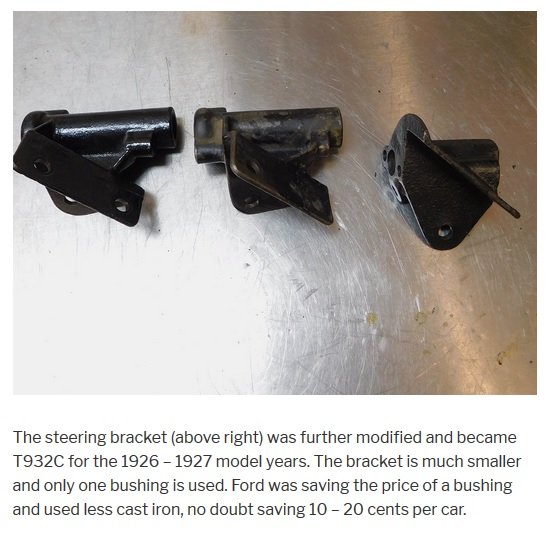

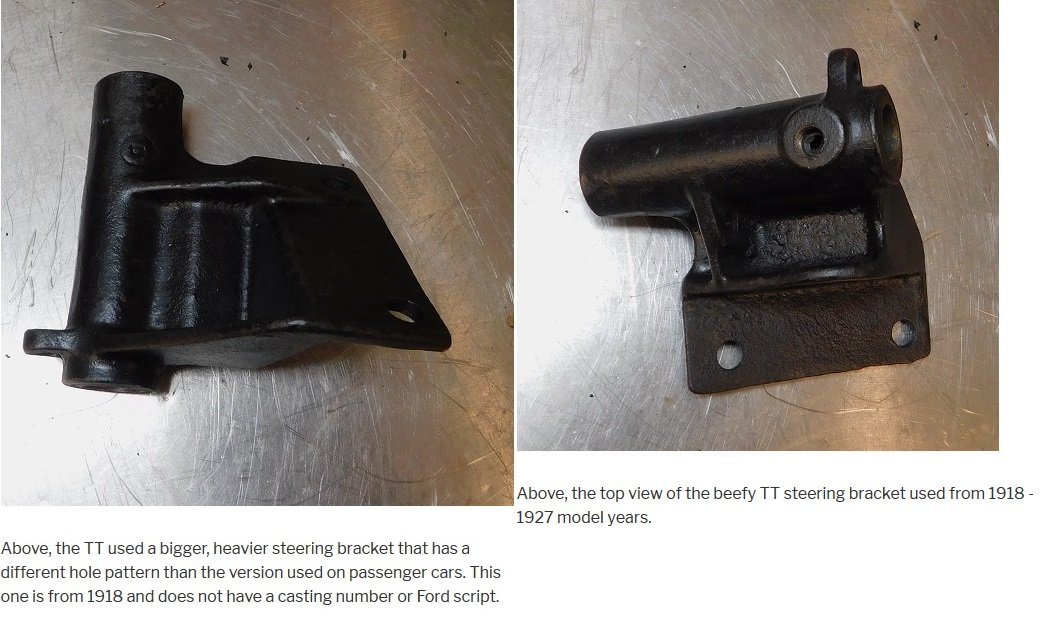

From https://modeltfordfix.com/repairing-the ... -bushings/
Brackets 2.jpg
Brackets 2.jpg (65.5 KiB) Viewed 1313 times
Brackets 3.jpg
Brackets 3.jpg (56.16 KiB) Viewed 1313 times
Attachments
Brackets 4.jpg
