Position of burner
Hi,
I received my headligths from Ross Benedict and they look great.

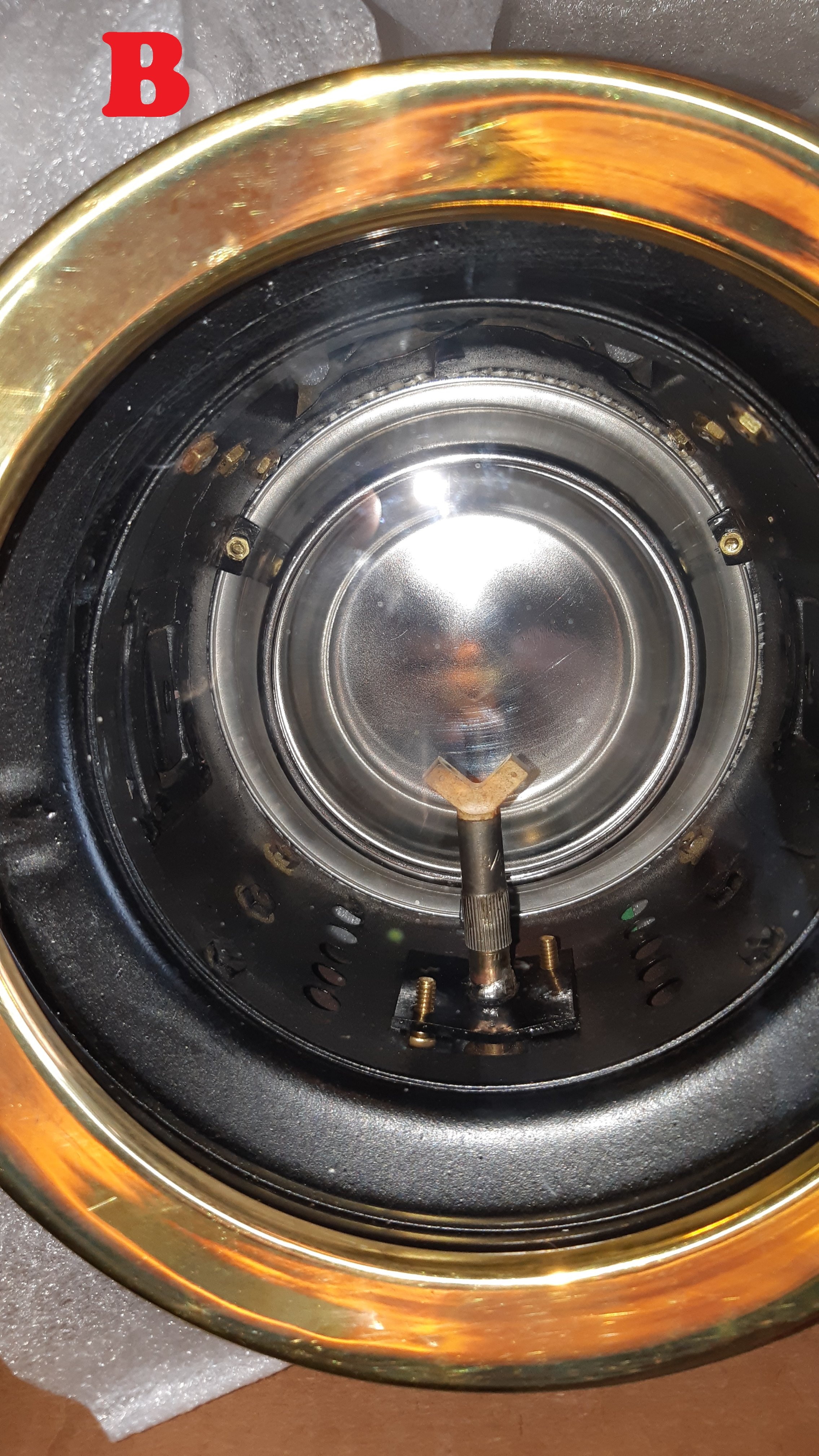

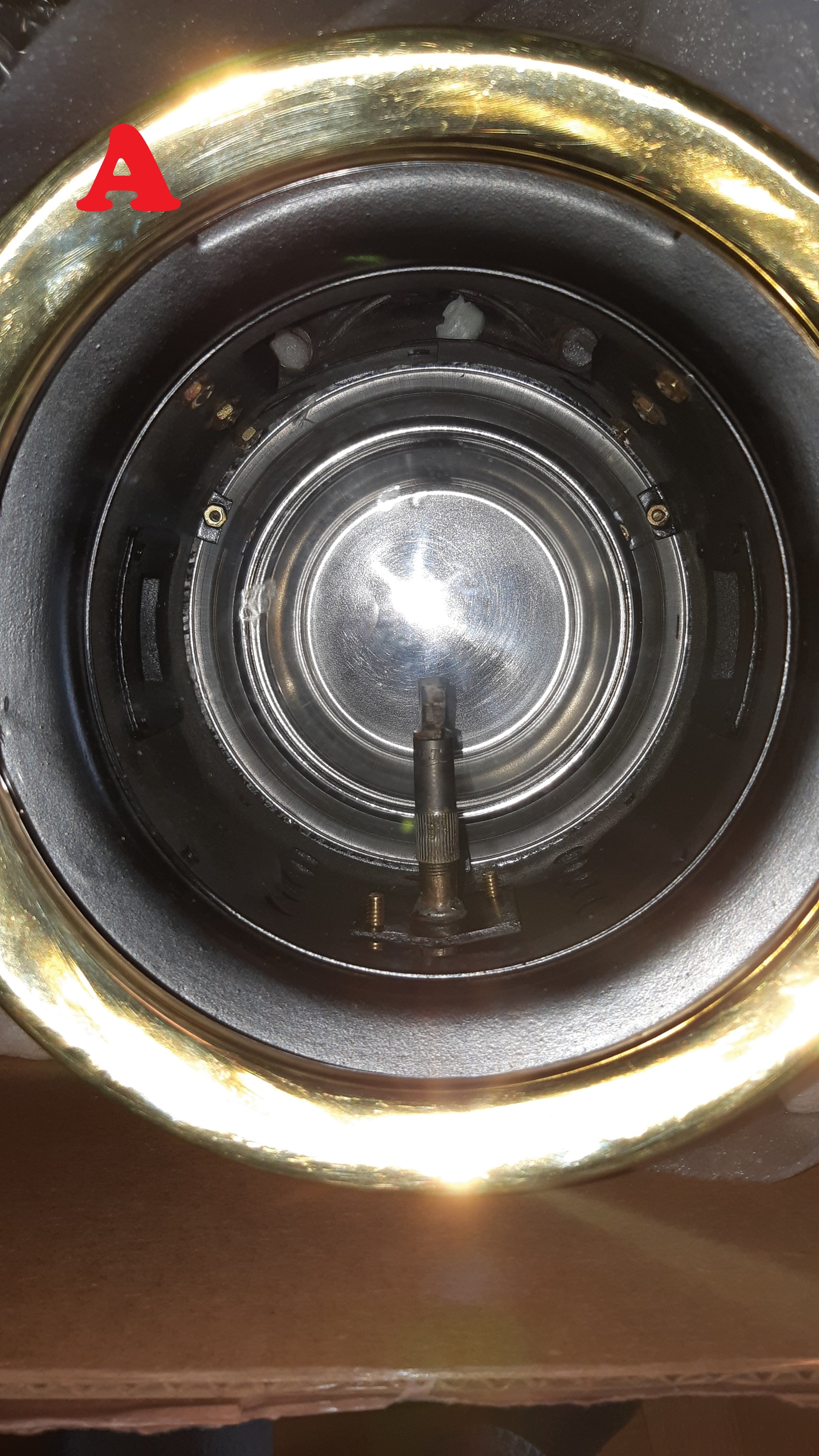

During assembly of the burner, I am in doubt what is the correct position of the "Y": I believe "A" is the right?
I received my headligths from Ross Benedict and they look great.
During assembly of the burner, I am in doubt what is the correct position of the "Y": I believe "A" is the right?
Ford Model T 1914 Touring
Ford Model T 1921 Roadster Pick-up
Ford Model T 1922 Fordor (danish build body)
ECCT, Strobospark, HCCT(Sold), Rebuilding coils
Ford Model T 1921 Roadster Pick-up
Ford Model T 1922 Fordor (danish build body)
ECCT, Strobospark, HCCT(Sold), Rebuilding coils
-
KWTownsend
- Posts: 1382
- Joined: Mon Jan 07, 2019 6:51 pm
- First Name: Keith
- Last Name: Townsend
- * REQUIRED* Type and Year of Model Ts owned: late 1911 touring, 1915 runabout, 1919 touring, brass speedster
- Location: Gresham, Orygun
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Position of burner
Image A. Front to back.
You should not see the Y from the front.
You should not see the Y from the front.
-
Darin Hull
- Posts: 253
- Joined: Fri Apr 17, 2020 2:15 pm
- First Name: Darin
- Last Name: Hull
- * REQUIRED* Type and Year of Model Ts owned: 1913 Model T & 1926 Model T project
- Location: Cartersville, GA
- Board Member Since: 2010
- Contact:
Re: Position of burner
Isn’t the point of the “A” configuration to cause the gas streams, when they hit each other, to create a wide/broad flame for greater reflected illumination?
Darin
Darin
-
Drkbp
- Posts: 277
- Joined: Sun Jan 06, 2019 11:28 am
- First Name: Kenneth
- Last Name: Parker
- * REQUIRED* Type and Year of Model Ts owned: 1914, 1925
- Location: Houston, Texas
Re: Position of burner
To help line up the burner,
I use a dab of pipe dope on the threads of the burner base
to keep the acetylene from leaking around base of the burner.
I like my burners "snug" on the base but not so tight I can't reach
in there with my fingers and line up the flame when lit.
I have a burner that makes a great flame but is crooked relative to the Mangin.
Slight twist of the burner lines the flame up and it stays put.
I use a dab of pipe dope on the threads of the burner base
to keep the acetylene from leaking around base of the burner.
I like my burners "snug" on the base but not so tight I can't reach
in there with my fingers and line up the flame when lit.
I have a burner that makes a great flame but is crooked relative to the Mangin.
Slight twist of the burner lines the flame up and it stays put.
- Attachments
-
- HARVEYS DOPE.jpg (53.21 KiB) Viewed 1941 times
-
Adam
- Posts: 1550
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: Adam
- Last Name: Doleshal
- * REQUIRED* Type and Year of Model Ts owned: ‘13 Touring, ‘24 Touring, ‘25 TT dump truck, ‘26 Tudor, ‘20 Theiman harvester T powerplant, ‘20 T Staude tractor
- Location: Wisconsin
- Board Member Since: 2000
Re: Position of burner
“A” is correct for getting the most light and is the way they were originally aligned. However, with whatever is in there in place of a reflector, it is doubtful that the headlamps will produce enough light to drive by no matter what you do.
-
Terry_007
- Posts: 280
- Joined: Sun Jan 06, 2019 9:18 pm
- First Name: Terry
- Last Name: Bond
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1915 Chassis
- Location: Chesapeake VA
Re: Position of burner
Thought this diagram might be of interest.
- Attachments
-
- Headlamp burner diagram.jpg (43.05 KiB) Viewed 1862 times
-
