Nut and Bolt Chart For New Members.....

Post by MichaelPawelek » Fri Feb 22, 2019 9:42 am

If posted lately my apologies. Not my chart but very handy. If revisions are needed please speak up....😁


User avatar

Steve Jelf
Posts: 2082
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Nut and Bolt Chart For New Members.....

Post by Steve Jelf » Fri Feb 22, 2019 12:19 pm

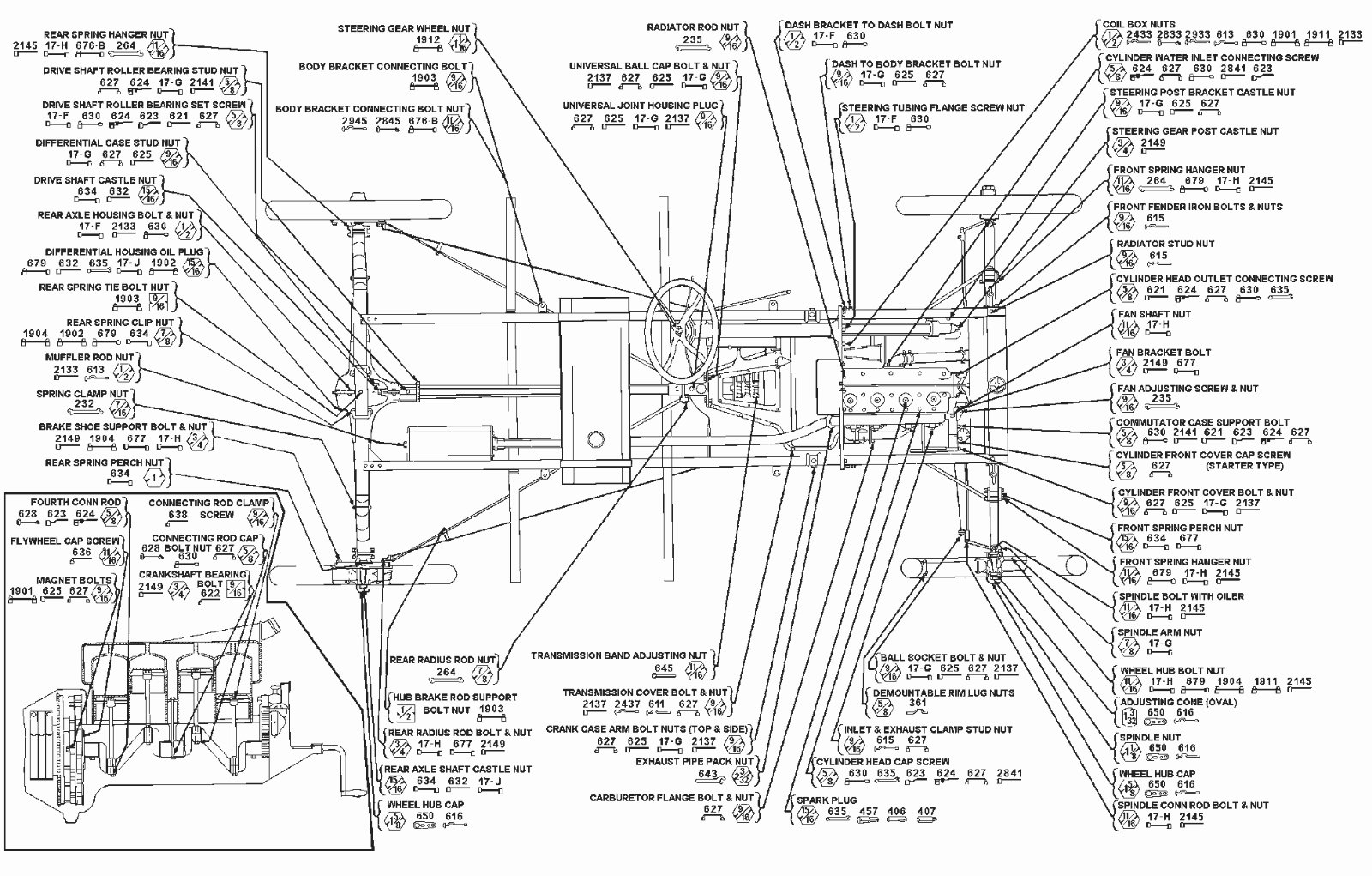

The sizes shown on the diagram are for which wrench fits the bolt head, not the actual bolt size.

Here it is without the odd link:

T NUTS & BOLTS.jpg

This forum format doesn't allow a PDF, so here's a link to an old post with a PDF that shows actual sizes for most chassis fasteners:

http://www.mtfca.com/discus/messages/11 ... 1290642906
The inevitable often happens.
1915 Runabout
1923 Touring


Topic author
MichaelPawelek
Posts: 76
Joined: Sun Jan 06, 2019 2:01 pm
First Name: Michael
Last Name: Pawelek
Location: Brookshire, Texas
Board Member Since: 1999

Re: Nut and Bolt Chart For New Members.....

Post by MichaelPawelek » Fri Feb 22, 2019 12:44 pm

Very good....Thanks.....


46woodduck
Posts: 144
Joined: Mon Jan 07, 2019 1:53 am
First Name: Thomas
Last Name: Petry
Location: Southern California

Re: Nut and Bolt Chart For New Members.....

Post by 46woodduck » Fri Feb 22, 2019 1:03 pm

Useful information. Thanks.
Life is good on the lunatic fringe. Tom
