Rear hub puller for Hayes Wire wheels?

Post by Dan Hatch » Sun Oct 11, 2020 7:20 pm

Does anyone have a picture of a Hayes wire wheel puller for the rear? I am wondering what they look like. Thanks Dan


Allan
Posts: 1857
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Rear hub puller for Hayes Wire wheels?

Post by Allan » Sun Oct 11, 2020 11:11 pm

Dan, my son made mine. It consists of an inch thick steel disc with the hubcap thread machined on the outer diameter. To the centre of the disc a large
nut is welded and that nut takes a bolt which pushes on the axle. The nut also serves as the means to screw the puller into the hub.
The coarse thread of the Hayes hub is quite adequate to take the effort applied.

Hope this helps.
Allan from down under.


Oates
Posts: 26
Joined: Wed Jan 16, 2019 5:42 pm
First Name: Ian
Last Name: Oates
Location: South Australia Australia

Re: Rear hub puller for Hayes Wire wheels?

Post by Oates » Mon Oct 12, 2020 1:40 am

[image][/image]Hi Dan

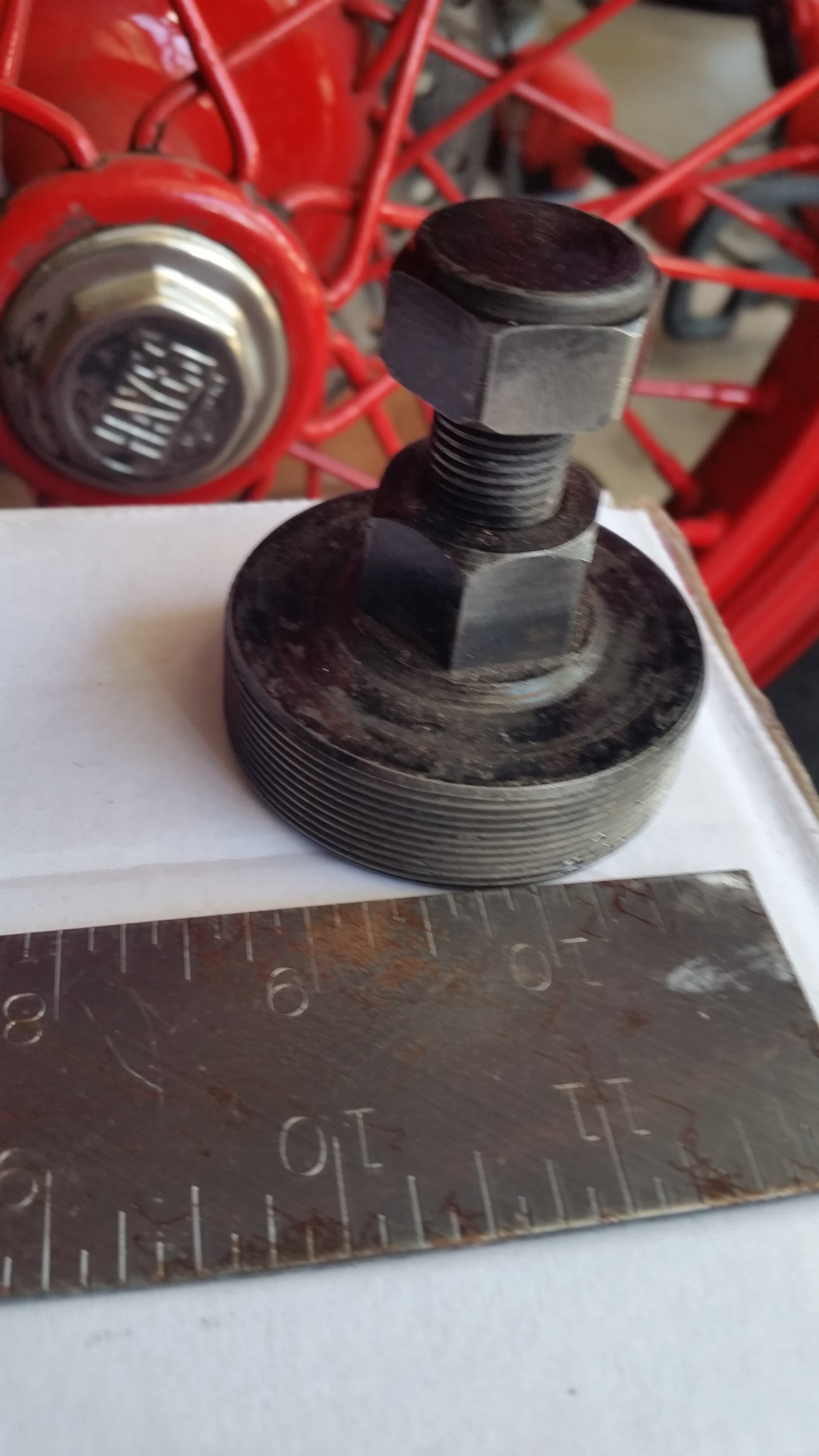

I believe this is a Hayes rear hub puller as it came with other Hayes spares for our 21 inch wires on our 1923 Roadster . Its a rather simple device that a handy person with a lathe could turn up in my opinion. Hope you are keeping well Iam still collecting Ford signs when the opportunity presents. Regards Ian
Attachments
dances with coils


Allan
Posts: 1857
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Rear hub puller for Hayes Wire wheels?

Post by Allan » Mon Oct 12, 2020 6:02 am

Dan, add a heavy weld around the hex on Ian's puller, and it would look just like the one we made.

Allan from down under.


Topic author
Dan Hatch
Posts: 1467
Joined: Tue Jan 08, 2019 7:31 pm
First Name: Dan
Last Name: Hatch
Location: Alabama
MTFCA Number: 49974

Re: Rear hub puller for Hayes Wire wheels?

Post by Dan Hatch » Mon Oct 12, 2020 11:33 am

Thanks for the pic. Ian are you who brought the Follow the Ford car sign from me at Hershey years ago? Thanks Dan


Oates
Posts: 26
Joined: Wed Jan 16, 2019 5:42 pm
First Name: Ian
Last Name: Oates
Location: South Australia Australia

Re: Rear hub puller for Hayes Wire wheels?

Post by Oates » Mon Oct 12, 2020 6:14 pm

Ditto Dan and I still have the Malinta sign its nicely different
dances with coils


Topic author
Dan Hatch
Posts: 1467
Joined: Tue Jan 08, 2019 7:31 pm
First Name: Dan
Last Name: Hatch
Location: Alabama
MTFCA Number: 49974

Re: Rear hub puller for Hayes Wire wheels?

Post by Dan Hatch » Mon Oct 12, 2020 9:25 pm

Those are very unusual. I have never found anyone that can say what is the real story on them.
I did find a picture in a 1910 Ford Times that shows one on a Ford race car. It has the city name cut off and the arrow is pointing to the rear of car.
They must be either Pre T or early T. Dan
