Oil pn support dogear blocks

Post by dhosh » Sun Oct 11, 2020 10:37 pm

There are wood blocks that support the bolts which mount the oil pan dogears to the frame. Should the heads of the horizontal bolts that secure the blocks in the frame channel, be counter sunk into the wood? Those bolt heads give me fits, by hanging up the dog ears when pulling it replacing the engine. There simply isn't enough room between the frame rails for the dogears, with those bolt heads sticking out. I had a devil of a time getting the motor out, and worse time putting it back in. I forgot that I was going to counter sink them before putting it together, then forgot. 😖
'24 RPU
Petoskey, Mi


Vincent H
Posts: 8
Joined: Sun Jul 05, 2020 6:04 pm
First Name: Vincent
Last Name: Hoebeke
Location: Ontario, Canada

Re: Oil pn support dogear blocks

Post by Vincent H » Sun Oct 11, 2020 10:49 pm

The bolt goes through the hole in the dog ear. I have attached a drawing to show the way it is supposed to go together. Make sure that the bolt at the top of the dog ear is as tight as possible. The one going through horizontally should be just snug, too tight will cause cracking.
I hope this helps
Attachments


Topic author
dhosh
Posts: 266
Joined: Sun Mar 03, 2019 10:13 pm
First Name: Dennis
Last Name: Hoshield
Location: Petoskey, MI
MTFCA Number: 24305
Board Member Since: 2015
Contact:

Re: Oil pn support dogear blocks

Post by dhosh » Sun Oct 11, 2020 11:20 pm

Hmmm... That would make sense... But I don't recall the lower hole in the dogear for the horizontal bolt to go through. That would certainly make getting the engine in easier! Although getting the nut in the inside is another matter!

I'll have to check for the holes!

Thanks!
'24 RPU
Petoskey, Mi


kmatt2
Posts: 91
Joined: Wed Jun 17, 2020 1:41 pm
First Name: Kevin
Last Name: Matthiesen
Location: Madera CA 93636
MTFCA Number: 11598

Re: Oil pn support dogear blocks

Post by kmatt2 » Mon Oct 12, 2020 12:55 am

Unless you have a late 25-27 TT truck the stock frames and all stock pan ears have a hole. Use a thin box end wrench and some tape to hold the nut and pre mark the bolt to locate split pin hole up and down. Use long nose pliers to place split pin and bend just enought to hold pin. The picture doesn't show it but the wood block has a champer edge that goes down and to the frame side. This is for the fuel line on the carb side.


Norman Kling
Posts: 1095
Joined: Tue Jan 08, 2019 1:39 pm
First Name: Norman
Last Name: Kling
Location: Alpine California

Re: Oil pn support dogear blocks

Post by Norman Kling » Mon Oct 12, 2020 1:11 am

Not hard to install if you do as kmatt suggests. However on an open car earlier than 26 it is hard to do the one on the left because of the starter is in the way and there is no door. You pretty much need to do it from underneath because you cannot turn the head of the bolt while holding the nut from above.
Norm


kmatt2
Posts: 91
Joined: Wed Jun 17, 2020 1:41 pm
First Name: Kevin
Last Name: Matthiesen
Location: Madera CA 93636
MTFCA Number: 11598

Re: Oil pn support dogear blocks

Post by kmatt2 » Mon Oct 12, 2020 1:23 am

Yes in a car it can be a two person job, one on the bolt from below and one on the nut from above.

User avatar

Mark Gregush
Posts: 2596
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Oil pn support dogear blocks

Post by Mark Gregush » Mon Oct 12, 2020 1:29 am

ya and don't try with a box wrench on the starter side. ;)
I know the voices aren't real but damn they have some good ideas! :shock:

1921 Huckster
1925 Cut down pickup


Chris Barker
Posts: 99
Joined: Sun Jan 06, 2019 5:08 pm
First Name: Chris
Last Name: Barker
Location: Somerset, Eng;and

Re: Oil pn support dogear blocks

Post by Chris Barker » Mon Oct 12, 2020 4:08 am

I suggest that most people will think it permissible to fit a stiff nut.
That saves eye, back and temper stresses.

User avatar

ABoer
Posts: 111
Joined: Mon Jan 07, 2019 2:41 pm
First Name: Anthonie
Last Name: Boer
Location: Klaaswaal NL
MTFCA Number: 19790

Re: Oil pn support dogear blocks

Post by ABoer » Mon Oct 12, 2020 7:25 am

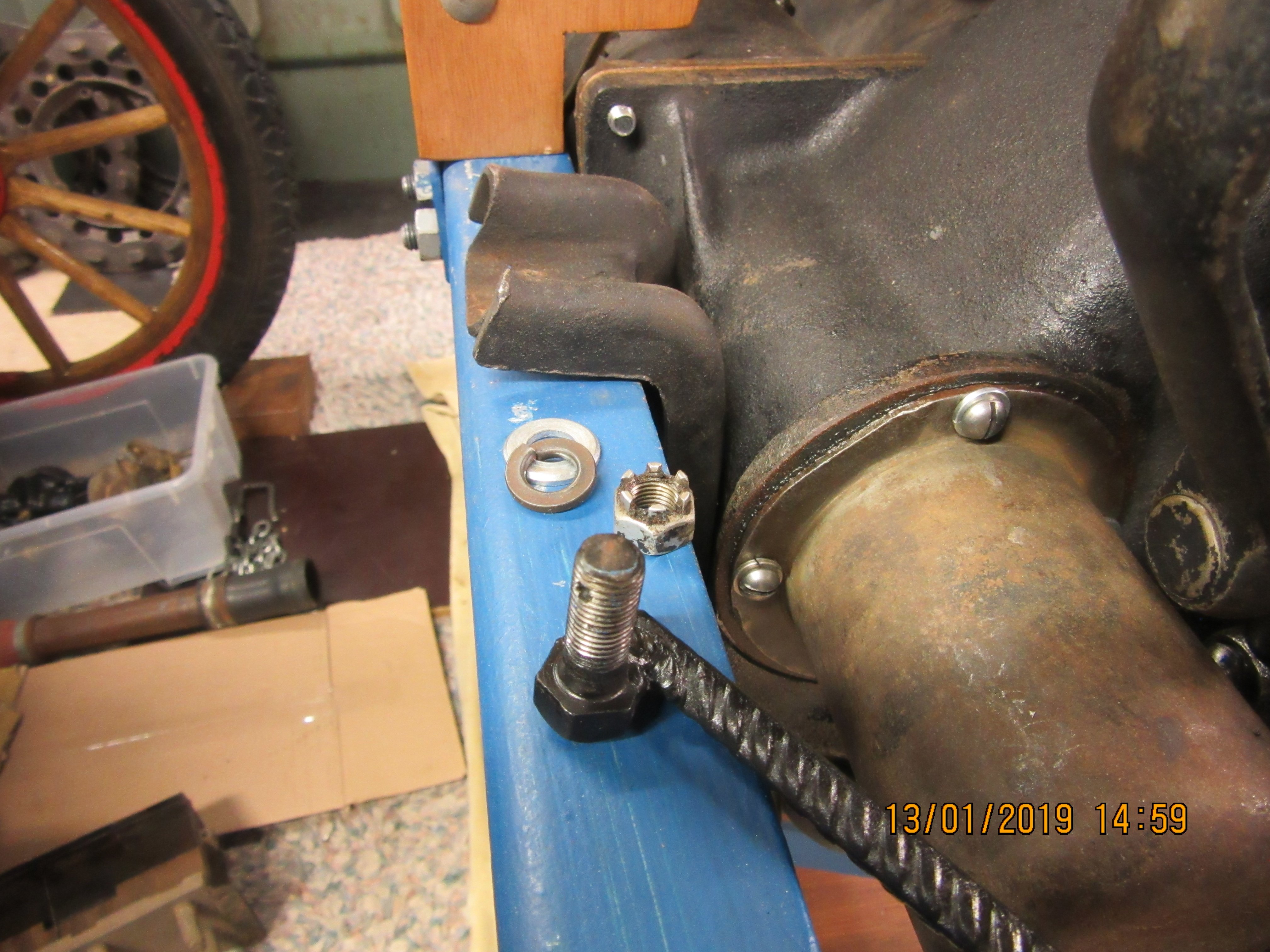

For the top bolts , I use this already for a long time .
Toon


John kuehn
Posts: 1371
Joined: Sun Jan 06, 2019 8:00 pm
First Name: John
Last Name: Kuehn
Location: Texas
MTFCA Number: 28924

Re: Oil pn support dogear blocks

Post by John kuehn » Mon Oct 12, 2020 9:58 am

Kmatts way is how I do it so I guess the trick using the piece of tape to hold things in place isn’t a new way to do it. Using thin wrench’s is a help. I do have a long straight thin headed wrench I use that also works well. And by the way I used lock washers instead of the cotter pins. ;)
This is one of those situations that I wonder how the Ford assembly line men did the job in the T’s heyday.
Either they used certain tools or had octopus hands!

User avatar

CJB
Posts: 58
Joined: Fri Jan 04, 2019 10:01 pm
First Name: Chris
Last Name: Bamford
Location: Edmonton AB Canada

Re: Oil pn support dogear blocks

Post by CJB » Mon Oct 12, 2020 11:51 am

John kuehn wrote:
Mon Oct 12, 2020 9:58 am
Kmatts way is how I do it ... And by the way I used lock washers instead of the cotter pins.
Given that the horizontal bolt is intended to be snug but not tight, I wonder if there will be enough clamp force to enable the lock washer to hold sufficiently.

My preference here is a self-locking nut (which I’ve Justlearned is also called a ‘stiff nut’).

User avatar

jsaylor
Posts: 117
Joined: Sun Jan 06, 2019 5:25 pm
First Name: John
Last Name: Saylor
Location: Citrus Heights, Ca
MTFCA Number: 1695
MTFCI Number: 23870
Board Member Since: 1999

Re: Oil pn support dogear blocks

Post by jsaylor » Mon Oct 12, 2020 12:17 pm

Found this in the "Ford Dealer & Service" Magazine for January, 1928. Mechanics, Old or new always find a way to invent the needed tools.
Attachments
nut holder1.JPG
nut holder1.JPG (71.21 KiB) Viewed 606 times


Norman Kling
Posts: 1095
Joined: Tue Jan 08, 2019 1:39 pm
First Name: Norman
Last Name: Kling
Location: Alpine California

Re: Oil pn support dogear blocks

Post by Norman Kling » Mon Oct 12, 2020 4:21 pm

It was much easier in the factory, because those bolts were installed before the body was in place. A box wrench works well unless it is an offset box wrench.
Norm

User avatar

Mark Nunn
Posts: 403
Joined: Mon Jan 07, 2019 8:01 am
First Name: Mark
Last Name: Nunn
Location: Bennington, NE
MTFCA Number: 50321
Board Member Since: 2017

Re: Oil pn support dogear blocks

Post by Mark Nunn » Mon Oct 12, 2020 5:46 pm

The nut is castlated so I wedged a screwdriver into one of the slots of the nut and used that to position it. For the vertical bolt, I fed a thin wire down from the top of the frame and hooked the dental floss I had earlier tied to its cotter pin hole. Pulling the wire and, subsequently, the floss pulled the bolt through the hole. Holding the floss tight, I ran the floss through the hole in the nut to align it for tightening.


Topic author
dhosh
Posts: 266
Joined: Sun Mar 03, 2019 10:13 pm
First Name: Dennis
Last Name: Hoshield
Location: Petoskey, MI
MTFCA Number: 24305
Board Member Since: 2015
Contact:

Re: Oil pn support dogear blocks

Post by dhosh » Mon Oct 12, 2020 7:15 pm

Thanks for all the tips. My problem was I put the wood blocks in the same way that I took the old ones out. I assumed they were put in correctly, and they were not. There is indeed a whole for the horizontal bolt in my dog ears, and most of you probably thought I was crazy for saying there wasn't period ;-) I stand corrected. But, I'm not going to take the engine out in order to put the bolts in correctly. However, I might be able to get one of those all in one tools that cut bolts and trim off flush, with a Long blade to cut off the bolt that I have in there, and then put in a new one properly. There would be no problem on the passenger side getting a nut in between the dog ear and the hogshead. I can't say quite the same on the other side, given the starter housing is in the way. But, I think I have a plan, now!

Thanks, all!
'24 RPU
Petoskey, Mi


Topic author
dhosh
Posts: 266
Joined: Sun Mar 03, 2019 10:13 pm
First Name: Dennis
Last Name: Hoshield
Location: Petoskey, MI
MTFCA Number: 24305
Board Member Since: 2015
Contact:

Re: Oil pn support dogear blocks

Post by dhosh » Tue Oct 13, 2020 1:12 am

Turns out, it wasn't all that hard to resolve . Well... Would have been easier if I was 27, an not 67... But that's another story. I removed the top bolts, and removed the nuts from the horizontals that were pit in wrong. Then took an air chisel and cut and knocked out the wood blocks, then removed the 2 bolts and clamp over the nose. I was able to hack the engine up just enough to barely get the horizontal bolts out. Set the engine back down, put the top dogear bolts and nuts in, cut new oak blocks for the frame, and bolted them in. I didn't have too much problem getting the nuts on. Cotter pins were another story! Especially the driver's side one!
Yeah... I used longer bolts for the top bolts, as the short ones didn't have cotter pins.
'24 RPU
Petoskey, Mi


Kerry
Posts: 512
Joined: Mon Jan 07, 2019 2:42 pm
First Name: Frank
Last Name: van Ekeren
Location: Rosedale Vic Australia

Re: Oil pn support dogear blocks

Post by Kerry » Tue Oct 13, 2020 1:42 am

I'm sure you are sick of stuffing with this but a spring washer would be more effective in preventing the nut from coming loose on those over long top bolts as the cotter pins are supposed to go through and lock in the castle nut.


Topic author
dhosh
Posts: 266
Joined: Sun Mar 03, 2019 10:13 pm
First Name: Dennis
Last Name: Hoshield
Location: Petoskey, MI
MTFCA Number: 24305
Board Member Since: 2015
Contact:

Re: Oil pn support dogear blocks

Post by dhosh » Tue Oct 13, 2020 6:46 am

Kerry...
Yep... I'll go through my extras... I'm sure I have a spare in mt non-T stuff.

Thanks!
'24 RPU
Petoskey, Mi


Dallas Landers
Posts: 1912
Joined: Sun Jan 06, 2019 12:26 pm
First Name: Dallas
Last Name: Landers
Location: N.E. Indiana
MTFCA Number: 49995

Re: Oil pn support dogear blocks

Post by Dallas Landers » Tue Oct 13, 2020 6:57 am

Sounds like you will be running around the north woods soon Dennis? OCF will be here before we know it.


Topic author
dhosh
Posts: 266
Joined: Sun Mar 03, 2019 10:13 pm
First Name: Dennis
Last Name: Hoshield
Location: Petoskey, MI
MTFCA Number: 24305
Board Member Since: 2015
Contact:

Re: Oil pn support dogear blocks

Post by dhosh » Tue Oct 13, 2020 9:08 pm

Hi Dallas .... You know it!! Lol! It's been a long summer, without the T! I sure hope I haven't done any updates and repairs that will necessitate taking it back apart!

Hope to see you soon, with that truck or RPU of yours!!!
'24 RPU
Petoskey, Mi


DHort
Posts: 1013
Joined: Sun Jan 06, 2019 1:30 pm
First Name: DAVID
Last Name: HJORTNAES
Location: Men Falls, WI
MTFCA Number: 28762
MTFCI Number: 22402

Re: Oil pn support dogear blocks

Post by DHort » Tue Oct 13, 2020 11:29 pm

Place the vertical bolts first and tighten. Then install the wood blocks. Horizontal bolt goes in from outside the frame, so no need to counter sink into the wood. Tape castle nut in place in wrench and have assistant turn bolt while you hold wrench. Then I wish you the best of luck getting the cotter pin in. I ended up getting a longer bolt with a washer before I inserted it into the frame and block so I could install the cotter pin.
