Firewall Drawing needed 1912

Post by Jack Putnam, in Ohio » Mon Nov 30, 2020 5:00 pm

I have an undrilled firewall for a 1912 vehicle. Is there a dimensional drawing available so that I might correctly place the coil box? Where would I find it?
Top
User avatar

TRDxB2
Posts: 6262
Joined: Tue Jan 08, 2019 4:56 pm
First Name: Frank
Last Name: Brandi
* REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
Location: Moline IL
Board Member Since: 2018

Re: Firewall Drawing needed 1912

Post by TRDxB2 » Mon Nov 30, 2020 5:18 pm

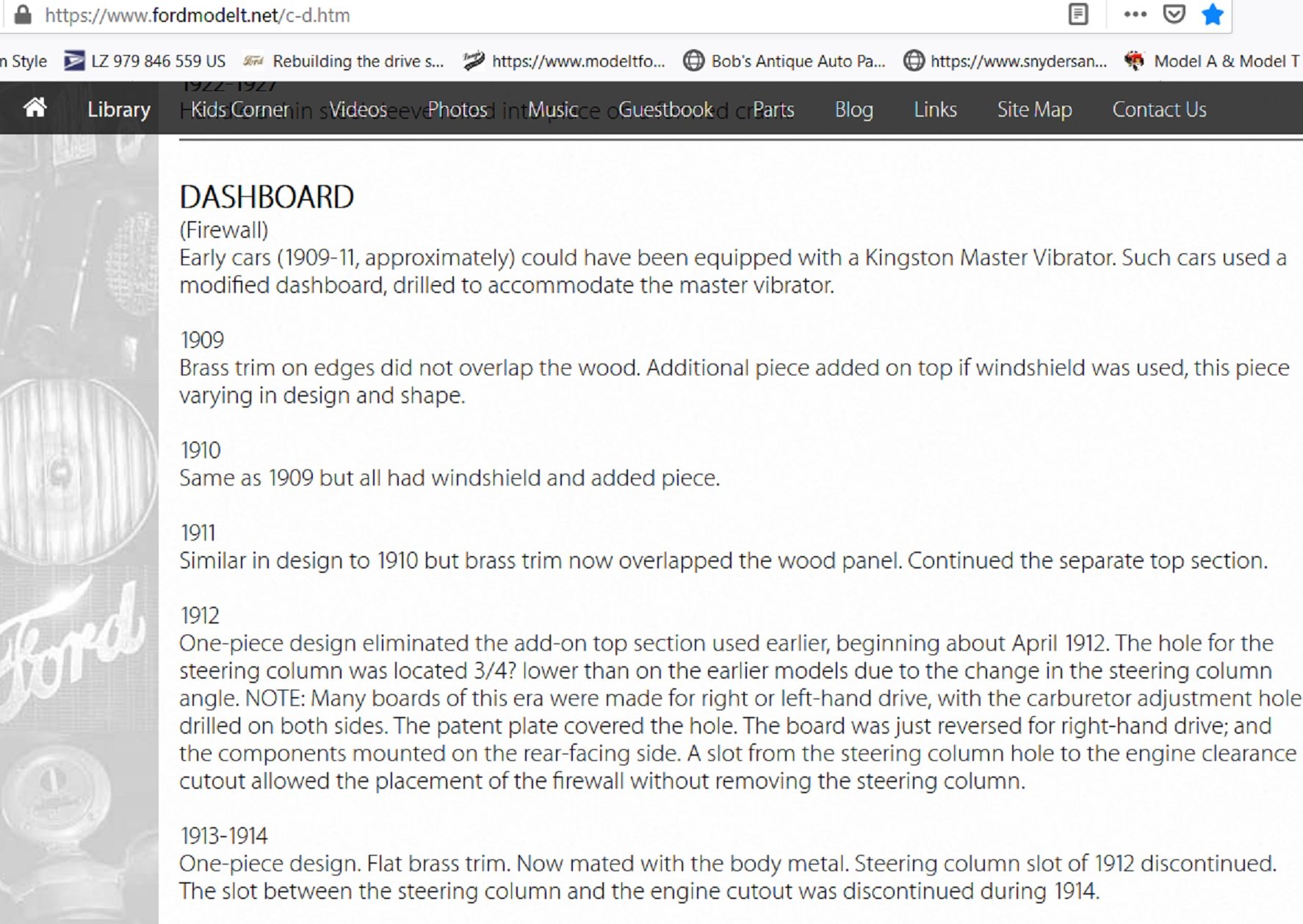

Check it out http://www.mtfca.com/discus/messages/179374/216356.html there are links by Hap Tucker that are must see!!

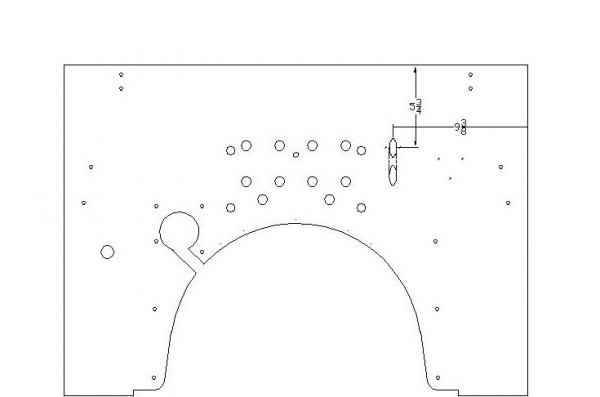

1912 firewall.jpg

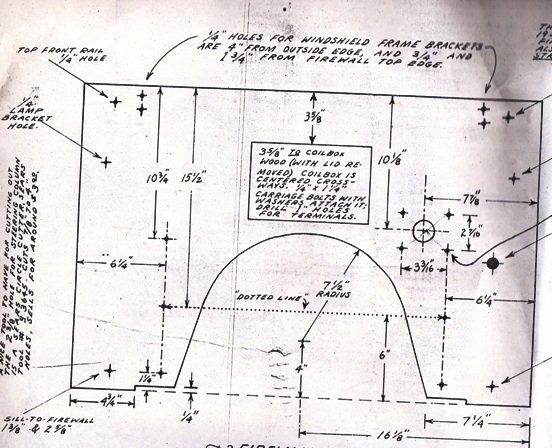

Early Firewall Differences.jpg
I found this as a 1913 but may not be accurate
Attachments
1913 firewall.jpg
1913 firewall.jpg (68.44 KiB) Viewed 1027 times
The past is a great place and I don't want to erase it or to regret it, but I don't want to be its prisoner either.
Mick Jagger
Top
User avatar

TWrenn
Posts: 3743
Joined: Sun Jan 06, 2019 10:53 am
First Name: Tim
Last Name: Wrenn
* REQUIRED* Type and Year of Model Ts owned: '13 Touring, '26 "Overlap" Fordor
Location: Ohio
Board Member Since: 2019

Re: Firewall Drawing needed 1912

Post by TWrenn » Mon Nov 30, 2020 7:45 pm

And ironically that link includes a response from John Regan to Jack!!
