Wire Chafing

Post by RustyFords » Wed Feb 27, 2019 3:54 pm

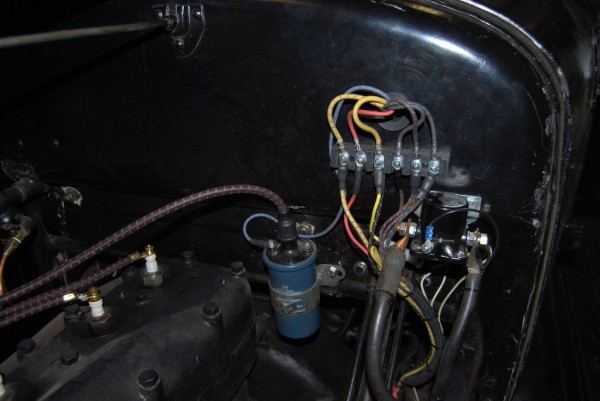

I've spent a lot of time tidying up the wires on my 24 Touring and am wondering if there was anything that the factory did to prevent wires from chafing where they go through the firewall in the hole above the junction block. (see photo)
Attachments
1924 Touring


Scott_Conger
Posts: 2221
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Wire Chafing

Post by Scott_Conger » Wed Feb 27, 2019 4:06 pm

Nope. Nothing.
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!

User avatar

Topic author
RustyFords
Posts: 986
Joined: Sun Jan 06, 2019 11:16 am
First Name: Don
Last Name: Allen
Location: Houston, TX
MTFCA Number: 50001

Re: Wire Chafing

Post by RustyFords » Wed Feb 27, 2019 4:16 pm

Thanks Scott.

Another quick wiring question...

What did the factory do, if anything, to tie up the misc. wires behind the dashboard?
1924 Touring

User avatar

Charlie B in N.J.
Posts: 272
Joined: Mon Jan 07, 2019 7:40 am
First Name: CHARLIE
Last Name: BRANCA
Location: Brick N.J.
MTFCA Number: 28967
Board Member Since: 2010

Re: Wire Chafing

Post by Charlie B in N.J. » Wed Feb 27, 2019 4:34 pm

Use a grommet. There's no sane reason to let them short out on a bare metal edge. Don't care what HF did if he did that he was wrong.
Forget everything you thought you knew.


Scott_Conger
Posts: 2221
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Wire Chafing

Post by Scott_Conger » Wed Feb 27, 2019 5:36 pm

I have never seen any wire dressing or tie off done inside firewall/behind dash. I would think it is safe to say there was nothing done to neaten up or dress the wire.

And I agree with the grommet advice you got. If not, install a Fun Projects 25A fuse/fuse holder back at the battery. Sooner or later you'd need one or the other.
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!

User avatar

CudaMan
Posts: 566
Joined: Fri Jan 04, 2019 4:17 pm
First Name: Mark
Last Name: Strange
Location: Hillsboro, MO
MTFCA Number: 30944
MTFCI Number: 23667

Re: Wire Chafing

Post by CudaMan » Wed Feb 27, 2019 5:44 pm

I too was concerned about the lack of a grommet in the firewall for the wire harness.

Upon close inspection, I discovered that the hole had a rolled edge that presented a smooth surface to the harness, so the factory apparently at least made a token effort to reduce chaffing. :)
Mark Strange
Hillsboro, MO
1924 Cut-off Touring (now a pickup)


Scott_Conger
Posts: 2221
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Wire Chafing

Post by Scott_Conger » Wed Feb 27, 2019 5:50 pm

that's an interesting observation...I wonder if the die was worn or there was a change. The '23 I rewooded had a simple punched hole. It's the only T I own with a steel firewall...not sure I can recollect what I've seen in the past, working on cars...never paid attention to that spot. Every day's a learning opportunity.
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


Allan
Posts: 1009
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Wire Chafing

Post by Allan » Wed Feb 27, 2019 6:06 pm

I have only ever found steel firewalls punched with a loom hole with a shoulder formed around the hole, presumably to reduce the chance of chafing. The extent of the shoulder does vary, some being a little split, others beginning to be rounded and beginning to return against the firewall.

Allan from down under.

User avatar

ArthurB
Posts: 59
Joined: Wed Jan 09, 2019 5:22 pm
First Name: Arthur
Last Name: Babitz
Location: Hood River, Oregon
Board Member Since: 2018

Re: Wire Chafing

Post by ArthurB » Wed Feb 27, 2019 6:18 pm

Just redid my wiring. My 1927 firewall had a shoulder as Allan described, but I got a nice grommet at NAPA which was just big enough to let the wire loom through, and it was "thick" enough to allow for the shoulder in the firewall. Funny thing is the grommet package said it was for Ford cars.


KeithG
Posts: 274
Joined: Thu Jan 03, 2019 3:00 pm
First Name: Keith
Last Name: Gumbinger
Location: Kenosha, WI
MTFCA Number: 4661
MTFCA Life Member: YES
MTFCI Number: 6866
Board Member Since: 1999

Re: Wire Chafing

Post by KeithG » Wed Feb 27, 2019 6:30 pm

Arthur B., Would you possibly have the manufacturer's name and part number for that grommet? I'm re-wiring my '27 and would put one in there as it's a good idea.
Thanks,
Keith
'14 Touring, '26 Roadster Pickup, '27 Fordor, '25 TT C Cab with Express Bed.
Motto: It's hard to build a garage that's tooooo big! :D

User avatar

ArthurB
Posts: 59
Joined: Wed Jan 09, 2019 5:22 pm
First Name: Arthur
Last Name: Babitz
Location: Hood River, Oregon
Board Member Since: 2018

Re: Wire Chafing

Post by ArthurB » Wed Feb 27, 2019 7:00 pm

Keith, the receipt was still in my car. The NAPA part # is 630-1067, and it is described as "Grommet (130)" It cost $4.29.

My recollection is it took a little effort to install since it was a hard rubber/plastic material and it was a hair oversized for the hole, but it went in and it's not coming out. It does a fine job protecting the loom and looks clean.

Here's pic. Yes, I know there is a modern coil and solenoid. Those were installed long before I bought the car!


Scott_Conger
Posts: 2221
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Wire Chafing

Post by Scott_Conger » Wed Feb 27, 2019 7:04 pm

Interesting...thanks for the info. My firewall is the early, low '23 small firewall...I wonder if a few insurance claims drove a change to have a radius?
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


KeithG
Posts: 274
Joined: Thu Jan 03, 2019 3:00 pm
First Name: Keith
Last Name: Gumbinger
Location: Kenosha, WI
MTFCA Number: 4661
MTFCA Life Member: YES
MTFCI Number: 6866
Board Member Since: 1999

Re: Wire Chafing

Post by KeithG » Wed Feb 27, 2019 7:34 pm

Hi Arthur, Thanks for the information - I'll get one!
BTW, are you involved with the WAAAM Museum in Hood River? Just wondering... I visited there just before Thanksgiving and liked it.
Thanks,
Keith
'14 Touring, '26 Roadster Pickup, '27 Fordor, '25 TT C Cab with Express Bed.
Motto: It's hard to build a garage that's tooooo big! :D

User avatar

jsaylor
Posts: 70
Joined: Sun Jan 06, 2019 5:25 pm
First Name: John
Last Name: Saylor
Location: Citrus Heights, Ca
MTFCA Number: 1695
MTFCI Number: 23870
Board Member Since: 1999

Re: Wire Chafing

Post by jsaylor » Thu Feb 28, 2019 12:04 pm

If you are using the original type loom there should not be a bunch of wires dangling around under the dash. If you have added accessories then jst tie them up with some waxed cord.

User avatar

Mark Gregush
Posts: 1689
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: Wire Chafing

Post by Mark Gregush » Thu Feb 28, 2019 12:08 pm

There can be. A lot of the under dash wire sets made some years back were made for sedans that required the longer loom and are too long for open cars. This is one of those one size fits all but were wrong.
I know the voices aren't real but damn they have some good ideas! :roll:

1921 Huckster
1925 Cut down pickup
