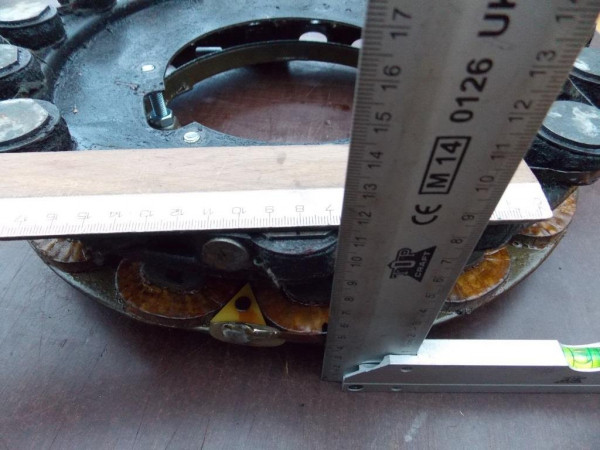

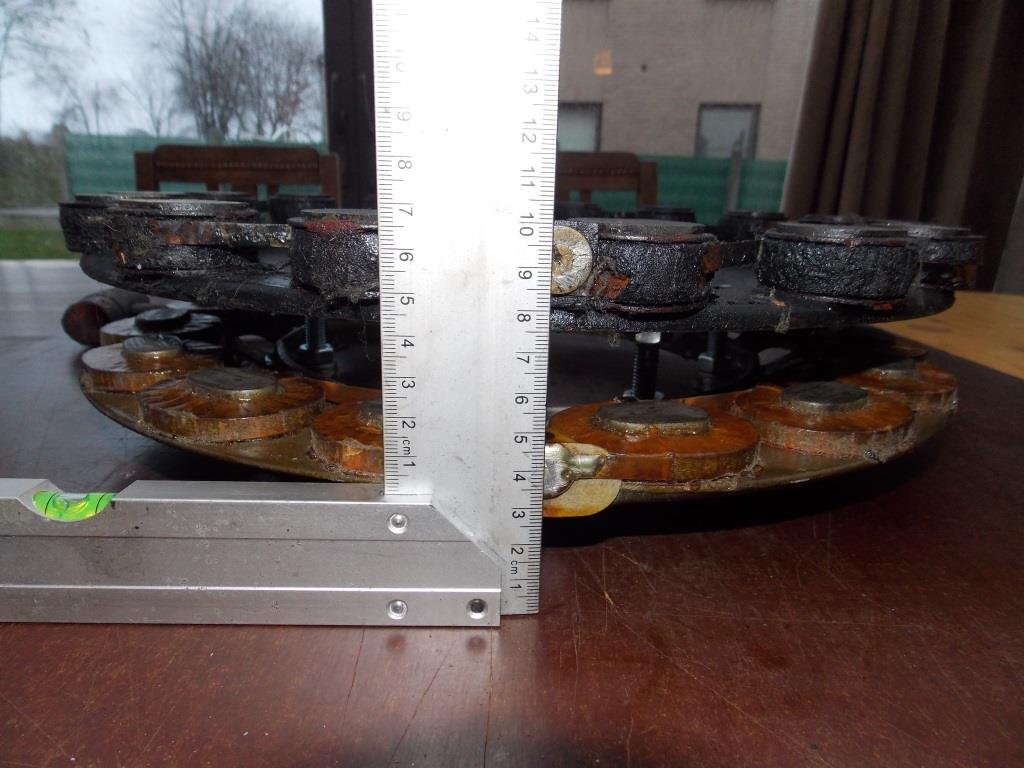

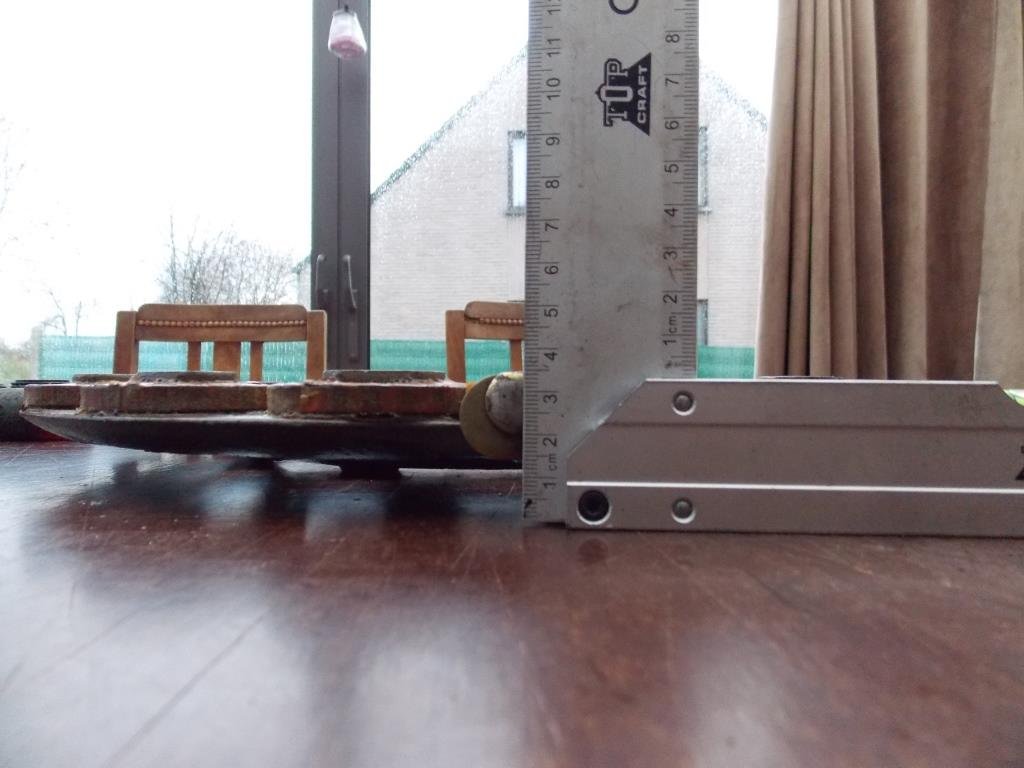

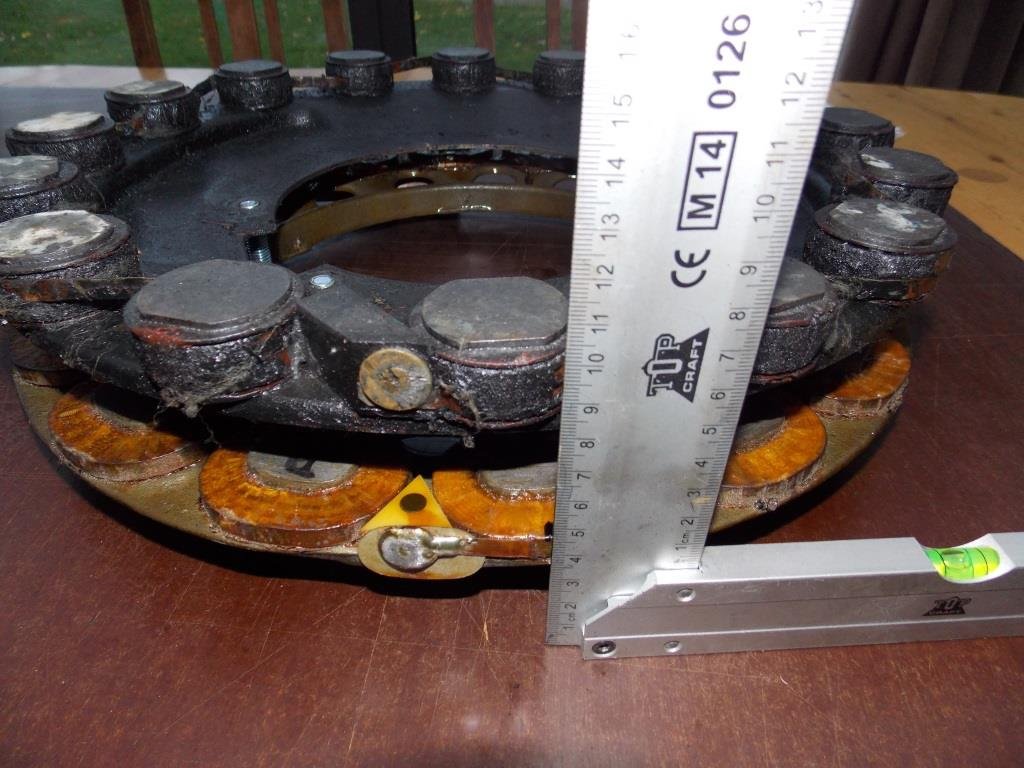

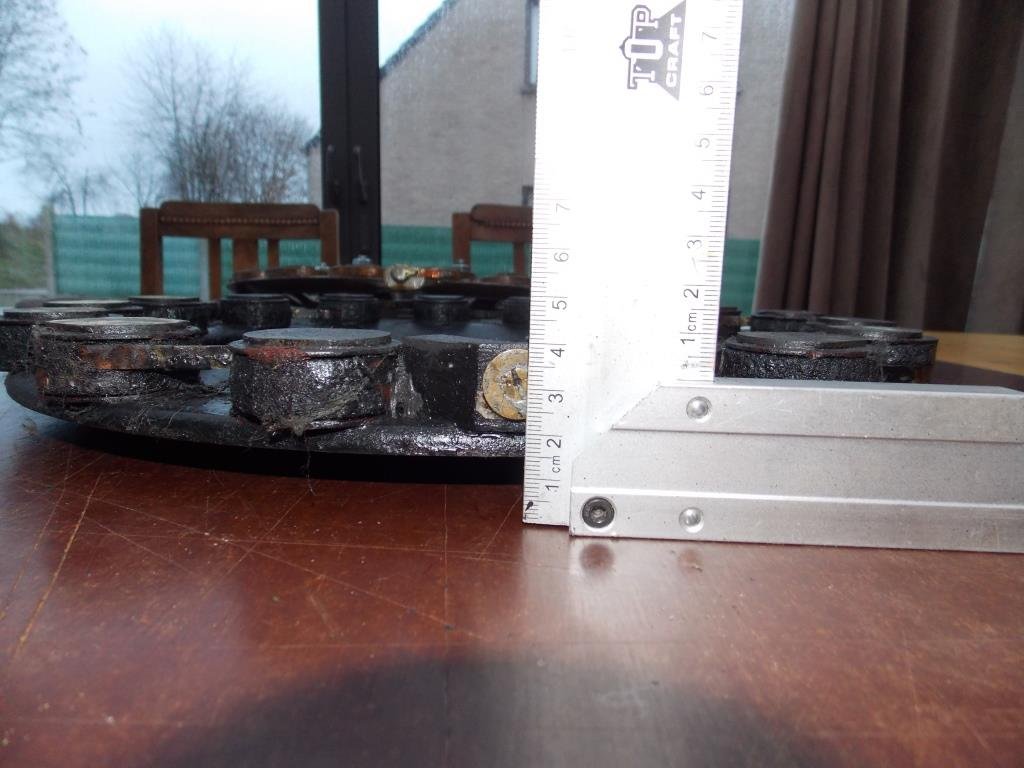

During the rebuild of a few early and later magneto coil ring rebuilds I found out that the center of the coils on the older coils is about 1/2" earlier than on the late coils.
Just wondering why this difference?
Andre
Belgium
An other(may be stupid) early magnéto coil question.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
AndreFordT
Topic author - Posts: 513
- Joined: Sun Jan 06, 2019 12:25 pm
- First Name: Andre
- Last Name: Valkenaers
- * REQUIRED* Type and Year of Model Ts owned: 1926 ; 1922 ; 1915.
- Location: Scherpenheuvel
-
Susanne
- Posts: 1119
- Joined: Sat Apr 13, 2019 6:06 pm
- First Name: Susanne
- Last Name: Rohner
- * REQUIRED* Type and Year of Model Ts owned: Late '15 touring, "Angel".
- Location: Valfabbrica, (central) Italy
- MTFCA Life Member: YES
- Board Member Since: 1999
- Contact:
Re: An other(may be stupid) early magnéto coil question.
I didn't think about this, but it's true, the stator coils on an early 09 would be 1/2" wide, where the later ones would be 9/16"... a pre-2500 T would definitely be within that 1/2" coil width era.
