1911 firewall

Post by Art Ebeling » Fri Mar 01, 2019 3:44 pm

My 1911 touring car project came with only the bottom of the two piece firewall. Can someone post the dimensions of the windshield riser section of the firewall? Is the windshield riser section constructed of a solid board or plywood like the bottom section? Thanks, Art


Marshall V. Daut
Posts: 103
Joined: Wed Jan 16, 2019 2:57 pm
First Name: Marshall
Last Name: Daut
Location: Davenport, Iowa

Re: 1911 firewall

Post by Marshall V. Daut » Fri Mar 01, 2019 10:02 pm

Art -

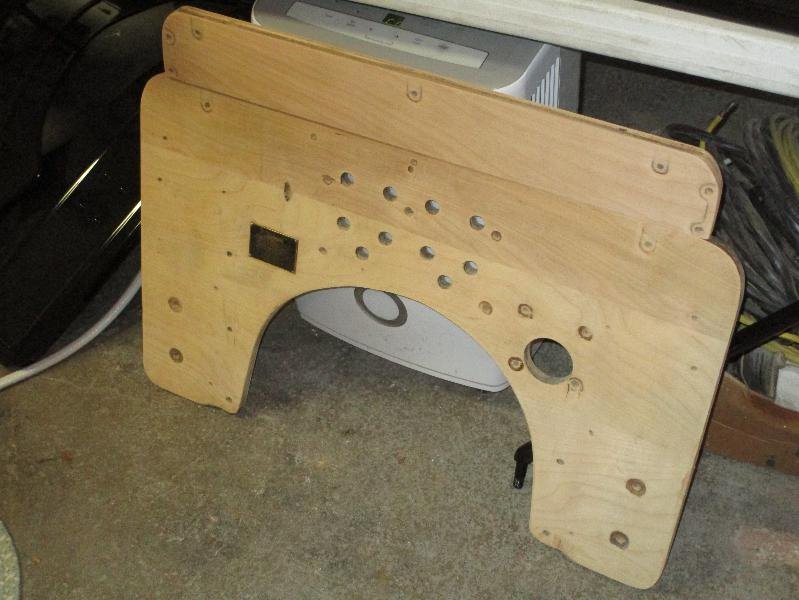

I have been working on the "American Pickers" 1911 Model T abomination for the past couple years off and on. The body is 1911, but most the rest of it came from various other years. I redid the firewall last year, so I am able to give you the measurements of the upper piece, which is made of the same material as the lower one: 28 1/2" length and 4" tall, with rounded edges on the top corners. There is a concave curvature running along the bottom of the piece so that it will sit nicely on top of the brass trim piece that encases the lower firewall. See photos.
Why not drive over to Davenport (Iowa) and see this work-in-progress? I'll take you over to Craig Beek's private brass Model T museum in Moline where you can examine a couple show-winning 1911 Model T's among 25 or so other OUTSTANDING brass T's. You can also pick up Larry Jenkins' Model A rear fender fixture you wrote me about last year. I was finally able to dig it out of storage.
Marshall
Attachments


Topic author
Art Ebeling
Posts: 150
Joined: Sun Jan 06, 2019 10:43 am
First Name: Art
Last Name: Ebeling
Location: Hillsboro IL
MTFCA Number: 50718

Re: 1911 firewall

Post by Art Ebeling » Sat Mar 02, 2019 7:07 am

Thanks Marshall, I notice your length of 28 1/2 inches is about 3 3/4 inches shorter than the top of the lower section of the my firewall and in your pictures appears about the same. In every picture I have seen of an 11 the riser part is the same width as the bottom section. The bottom section is also narrower at the top than the bottom and in pictures the riser part appears to follow that same taper. I guess I do need to see one in person. Thanks for the offer of the fender holding tool. If I can get away from work long enough I will take you up on your offer. Art


Marshall V. Daut
Posts: 103
Joined: Wed Jan 16, 2019 2:57 pm
First Name: Marshall
Last Name: Daut
Location: Davenport, Iowa

Re: 1911 firewall

Post by Marshall V. Daut » Sat Mar 02, 2019 9:57 am

Art -
That's a good point. As I wrote, this car was a mess of parts from almost every year Model T. We are slowly replacing the incorrect parts with authentic ones, and of course it was the rare and expensive parts that were missing or were incorrect! I don't think this firewall is original. It may be an older repo. But I wonder why someone went to all the trouble of cutting a new firewall, drilling the appropriate holes in the right places, and then making the piece below the windshield too short? The wood matches each other between the two pieces. There were multiple suppliers of bodies, weren't there? If the former "restorer" (a very generous description for his work) had used the original firewall as a pattern for making the new one, is it possible that the maker of this body typically made this windshield piece shorter than we normally see? Nah!!! I don't think so, either. We would have seen documentation on this by now if that were the case. It appears that this car has bitten me in the posterior once again and that a new firewall may need to be ordered. 'Sorry for the bum steer. I am learning about early brass cars as we go and sometimes the experience isn't always pleasant. $$$$$
Marshall

User avatar

Walter Higgins
Posts: 174
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Walter
Last Name: Higgins
Location: Realville, PA
MTFCA Number: 396
MTFCA Life Member: YES
MTFCI Number: 153

Re: 1911 firewall

Post by Walter Higgins » Sat Mar 02, 2019 10:35 am

art ebeling wrote:
Fri Mar 01, 2019 3:44 pm
Is the windshield riser section constructed of a solid board or plywood like the bottom section? Thanks, Art
Neither piece would be plywood. The firewall itself was constructed of a random width board-core with a veneer. The filler board was a single board, not plywood. I don't have the specs for a Touring, but in the case of T/OR's it is the same width as the firewall and I have never seen era photos of Tourings showing otherwise.

User avatar

Mark Gregush
Posts: 1955
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
Location: Portland Or
Board Member Since: 1999

Re: 1911 firewall

Post by Mark Gregush » Sat Mar 02, 2019 2:40 pm

I know the voices aren't real but damn they have some good ideas! :shock:

1921 Huckster
1925 Cut down pickup


dllr28bl
Posts: 47
Joined: Sun Jan 06, 2019 3:20 pm
First Name: Dan
Last Name: Woolf
Location: Alpharetta, GA

Re: 1911 firewall

Post by dllr28bl » Sat Mar 02, 2019 8:22 pm

Here is a picture of the firewall and filler board from my brother Jim's 1911 T. The firewall is new and was made using the original as a pattern. It has the original brass trim. The filler board was in good enough shape to re-use. It is made from a single piece of wood and is the same length as the firewall.

Dan
Attachments


Nikko012
Posts: 36
Joined: Tue Feb 05, 2019 11:23 am
First Name: Raymond
Last Name: Emling
Location: Kingston, Washington
Board Member Since: 2015

Re: 1911 firewall

Post by Nikko012 » Sun Mar 03, 2019 4:07 pm

If you contact the Henry ford museum in Dearborn, MI, they might have the original plans of the firewall. that is what I did when I when to restore my 1911 torpedo's firewall.
