Odd coil??

Post by My1914T » Wed Dec 30, 2020 5:11 pm

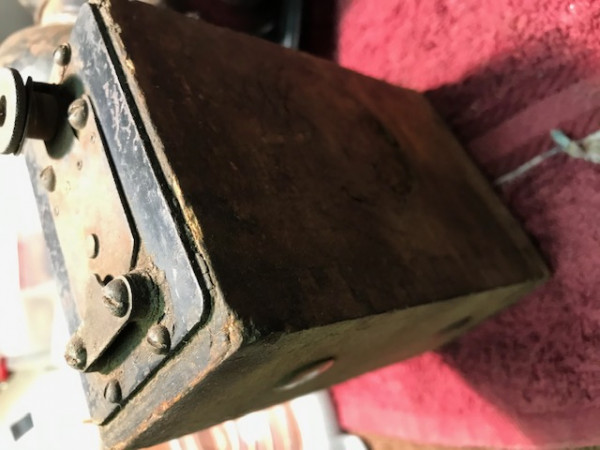

Found this in a collection of coils. Can anyone tell me what type it is?
Attachments
Top

R.V.Anderson
Posts: 680
Joined: Tue Jan 08, 2019 6:01 pm
First Name: R.V.
Last Name: Anderson
* REQUIRED* Type and Year of Model Ts owned: 1914, 1920, 1923, 1923
Location: Kennedy, NY

Re: Odd coil??

Post by R.V.Anderson » Wed Dec 30, 2020 8:39 pm

It's a Heinze. If the bottom contact is towards one end, it's a 1913. If in the center, it's a 1914. I make points for them, so they can be rebuilt like any other early coil.
Top
User avatar

Mark Gregush
Posts: 5370
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
* REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
Location: Portland Or
Board Member Since: 1999

Re: Odd coil??

Post by Mark Gregush » Wed Dec 30, 2020 8:56 pm

I was going to say Heinze too, but it does not have the little clicker on the adjustment and the plate does not cover the whole top, so might be earlier then 1911.
http://www.mtfca.com/discus/messages/82 ... 1519919768
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1948 Ford F2 pickup
Top

R.V.Anderson
Posts: 680
Joined: Tue Jan 08, 2019 6:01 pm
First Name: R.V.
Last Name: Anderson
* REQUIRED* Type and Year of Model Ts owned: 1914, 1920, 1923, 1923
Location: Kennedy, NY

Re: Odd coil??

Post by R.V.Anderson » Thu Dec 31, 2020 12:58 pm

It's definitely 1913-14 Heinze, depending on the contact locations I cited. Kingston made very similar coils at the same time but theirs have finger joints only at the top and bottom edges. Heinze units have them all the way up the sides. The ratchet you mention was changed to a very thin T-shaped bronze loop with an embossing that engaged knurling on the underside of the large brass ratchet nut. These thin loops are commonly broken or missing.
Top

jab35
Posts: 1001
Joined: Sun Jan 06, 2019 12:28 pm
First Name: James
Last Name: Bartsch
* REQUIRED* Type and Year of Model Ts owned: '26 Coupe
Location: Dryden, NY 13053
MTFCA Life Member: YES

Re: Odd coil??

Post by jab35 » Thu Dec 31, 2020 1:09 pm

RV: Has the Coil Documentary article you were working on 2018 been published? I feel this information presented in the format of the recent HCCT book would be of great value and interest. Thanks, jb
