An advertisement for a "better" ignition system for a Ford was being advertised in Australia in 1923. Called a N. C. Synchronised Ignition.
As was usual it was a wonderous product and the ad gives several reasons why it was so.
Has anyone seen such a product? or have any idea as to what it actually is? Could be a timer elevator type product or possibly something completely different. The product would most probably be from the USA seems sales in Australia at the time would not have warranted manufacture here but I could be wrong, as I often am.
NC Synchronised ignition. anyone have one of there?
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
ewdysar
- Posts: 292
- Joined: Wed Jan 09, 2019 6:48 pm
- First Name: Eric
- Last Name: D
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1915 Speedster #32, 1916 Touring, 1927 Runabout
- Location: Greater Portland area
Re: NC Synchronised ignition. anyone have one of there?
Given the description of “does away with the commutator”, “makes the contact breaker accessible”, and “uses only one coil”, it sounds to me like a distributor set up. It might not be exactly like a regular distributor, I’m not sure how it would work with a stock ford coil, as the ad copy implies.
Maybe somebody else has more specific info...
Eric
Maybe somebody else has more specific info...
Eric
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: NC Synchronised ignition. anyone have one of there?
Might be one of these units, with distributor points mounted on drive from cam, where the timer would be. These used 1 of the 4 trembler Ford coils and the Ford flywheel AC magneto to fire the plugs. Or you could use storage battery and run a single trembler coil off 6v DC.
Click on photo to enlarge for reading.
Click on photo to enlarge for reading.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Luxford
Topic author - Posts: 279
- Joined: Wed Jan 23, 2019 6:30 pm
- First Name: Peter
- Last Name: Kable
- * REQUIRED* Type and Year of Model Ts owned: 1911 Town Car 1913 Speedster 1915 kampcar
- Location: Australia
- MTFCA Life Member: YES
Re: NC Synchronised ignition. anyone have one of there?
Thanks Dan, that is the same description as the NC. looks like the extra lead going to the base of the distributor head is the wire from the coil.
If anyone finds an actual advertisement (or an actual unit) I would appreciate a photo.
If anyone finds an actual advertisement (or an actual unit) I would appreciate a photo.
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: NC Synchronised ignition. anyone have one of there?
Peter
Just haven't found an "N.C" version of these 'distributor points' type units that used one of the Ford trembler coils for power source to the plugs. The N.C. may have been Great Britain origin?
There were many mfg. making these from 1914 to 1925.
Just haven't found an "N.C" version of these 'distributor points' type units that used one of the Ford trembler coils for power source to the plugs. The N.C. may have been Great Britain origin?
There were many mfg. making these from 1914 to 1925.
- B1E4361D-517C-4014-A45E-854081845B54.jpeg (99.3 KiB) Viewed 1582 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
TRDxB2
- Posts: 6262
- Joined: Tue Jan 08, 2019 4:56 pm
- First Name: Frank
- Last Name: Brandi
- * REQUIRED* Type and Year of Model Ts owned: Speedsters (1919 w 1926 upgrades), 1926 (Ricardo Head)
- Location: Moline IL
- Board Member Since: 2018
Re: NC Synchronised ignition. anyone have one of there?

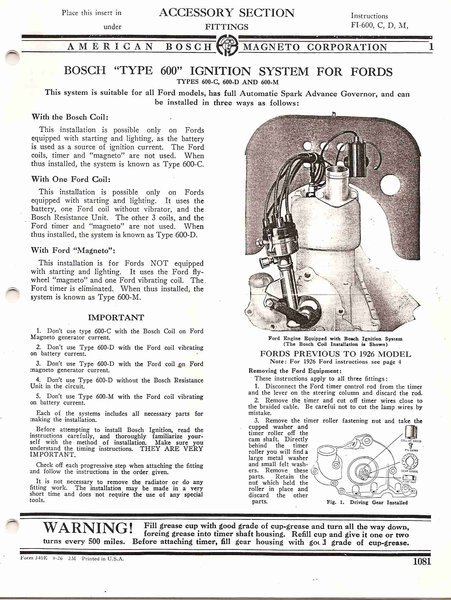

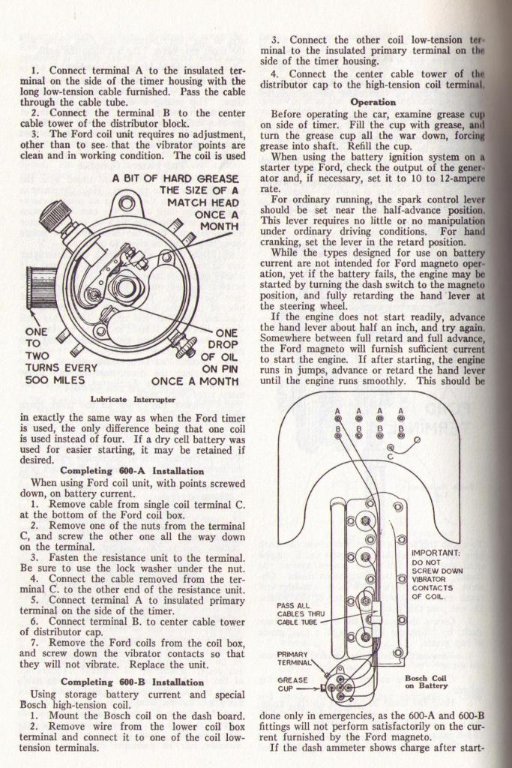

The American Bosch 600 Distributor had several configuration options. One of them would use just one Ford Coil the page 5 instructs how to wire it for 1 coil
- 362846.jpg (85.29 KiB) Viewed 1571 times
