armature wiring

Arnie · Post by **Arnie** » Mon Jan 07, 2019 11:05 pm

Back in the 2018 forum, I thought there was a good description of how the wires were placed on the armature. I tried to locate it for educational purposes but could not find it on the old forum. Does anyone know the date and time of the posted pictures.

Thanks

Bob Williams · Post by **Bob Williams** » Tue Jan 08, 2019 12:34 am

I think this is what your looking for.
http://www.mtfca.com/discus/messages/70 ... 1502488768

Post by **AndreFordT** » Tue Jan 08, 2019 6:35 am

I will come back later today.

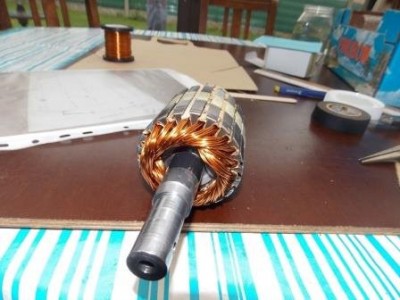

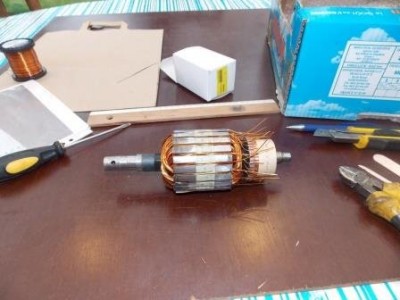

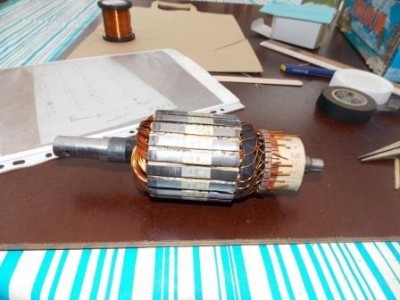

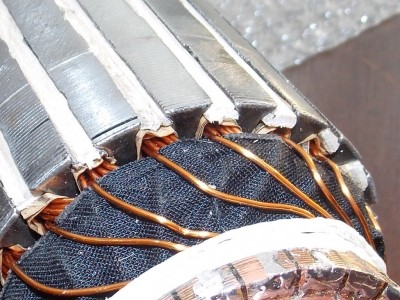

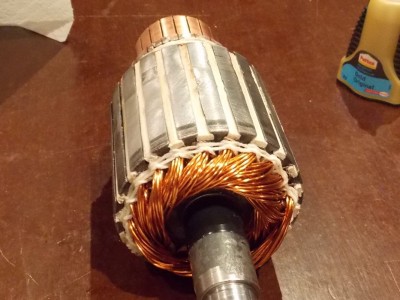

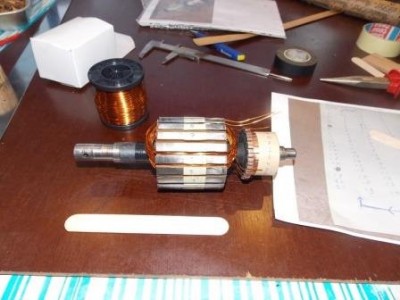

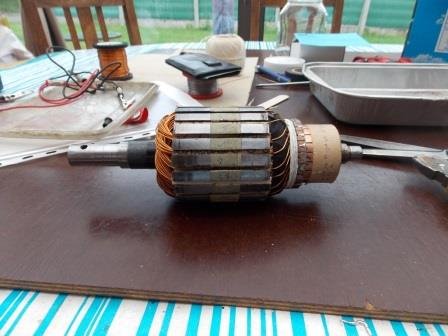

Here already a few photos of the wiring and the rewinding.

Andre
Belgium

Post by **AndreFordT** » Tue Jan 08, 2019 6:48 am

Arnie · Post by **Arnie** » Tue Jan 08, 2019 7:34 pm

Thanks guys.

My memory is going as it was in the 2017 forum not the 2018 forum. That was the exact pictures I was looking for. Now to take the time to study them and try to better understand how the armature is wired. Very seldom do I see such great pictures of the armature.

Thanks again

Arnie
