Hi all,
I've looked everywhere to see how to hook up a coil to test it and make it buzz. I have several coils and wanted to do this on my bench. I've seen people wiring hit and miss coils, but I need a simple diagram (not a coil tester) or a photo to see how to hook up alligator clip wires from the battery, spark plug and the three spots on the side and bottom of the coil. Thanks for any help.
John
wiring a coil to make it buzz. Help
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: wiring a coil to make it buzz. Help
In a car with a neg ground battery, the bottom spot gets the pos wire, for the two on the side the upper gets ground wire, and the lower one is the output to the spark plug.
-
dykker5502
- Posts: 467
- Joined: Mon Jan 07, 2019 7:01 pm
- First Name: Michael
- Last Name: Deichmann
- * REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1921 Roadster P/U, 1922 Fordor (danish custom body)
- Location: Rågeleje, Denmark
- Board Member Since: 2007
Re: wiring a coil to make it buzz. Help

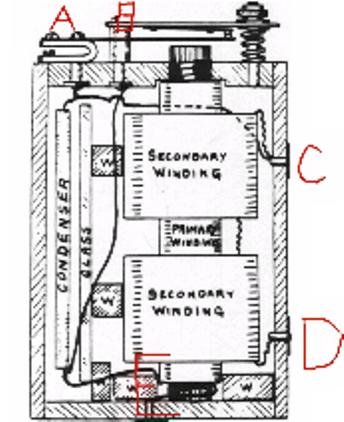

- coil_picture_megger.jpg (31.97 KiB) Viewed 1450 times
Ground - at C
Make sure to have a spark gap (sparkplug) connected between C and D or you may get internal sparks destroying the coil.
Ford Model T 1914 Touring
Ford Model T 1921 Roadster Pick-up
Ford Model T 1922 Fordor (danish build body)
ECCT, Strobospark, HCCT(Sold), Rebuilding coils
Ford Model T 1921 Roadster Pick-up
Ford Model T 1922 Fordor (danish build body)
ECCT, Strobospark, HCCT(Sold), Rebuilding coils
-
Peter, Memphis TN
- Posts: 80
- Joined: Mon Jan 07, 2019 12:00 pm
- First Name: Peter
- Last Name: Claverie
- * REQUIRED* Type and Year of Model Ts owned: 1923 Touring
- Location: Memphis, TN
Re: wiring a coil to make it buzz. Help
One other caution: Don't keep a coil buzzing for very long without a cooling-off time. Just to pick a number, I'd say 5 seconds ON, then 15 seconds or more OFF.
