Cowl lacing 26/27

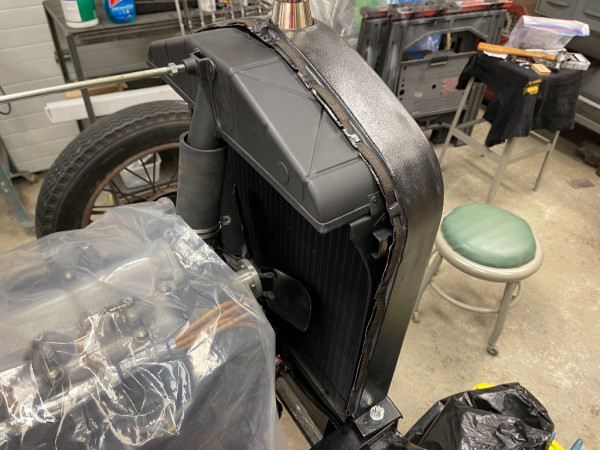

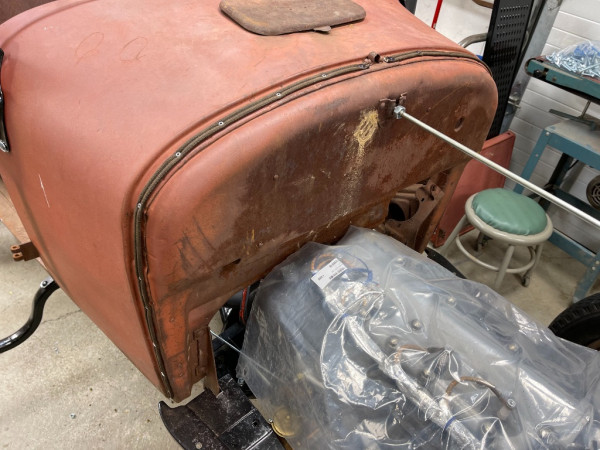

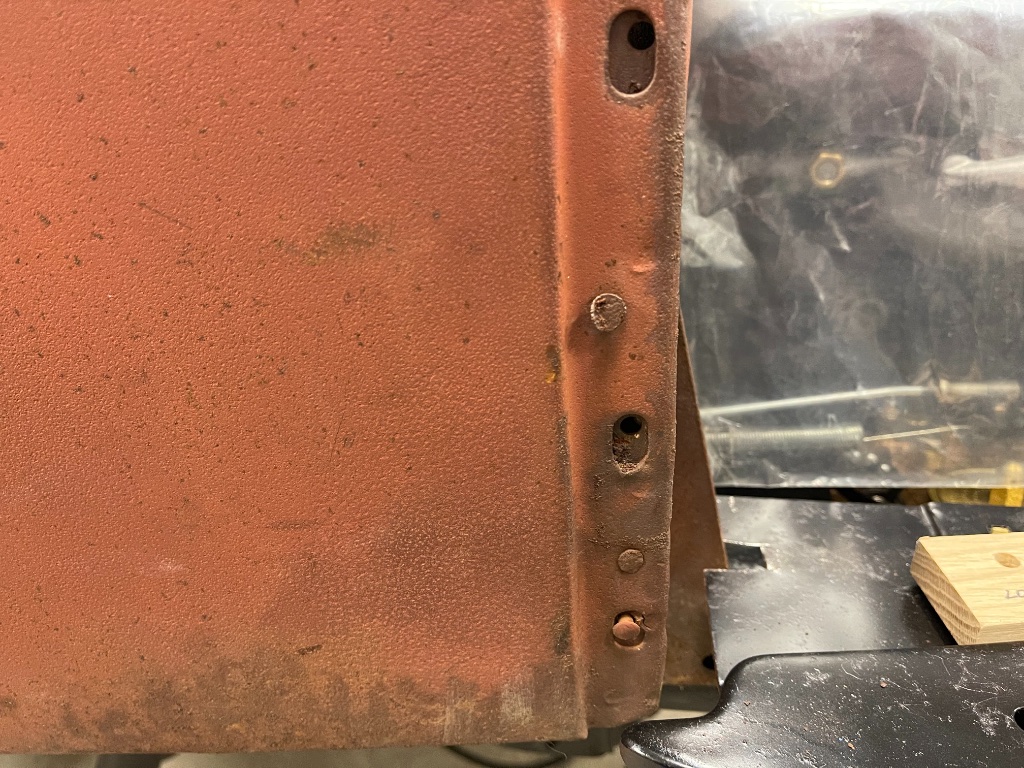

Radiator shell turned out pretty nice. Cowl lacing looks self explanatory except for the 2 at the bottom. Bottom looks easy as the back is easy to get to so the rivet can be split. The next one up seems like a rigid nail. What is the fix for that one?
Last edited by dmdeaton on Mon Feb 08, 2021 4:36 pm, edited 1 time in total.
-
dmdeaton
Topic author - Posts: 732
- Joined: Mon Oct 21, 2019 9:43 pm
- First Name: Danny
- Last Name: Deaton
- Location: Ohio
Re: Cowl lacing
Is there a hook like the model A has that clips over this?
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Cowl lacing 26/27

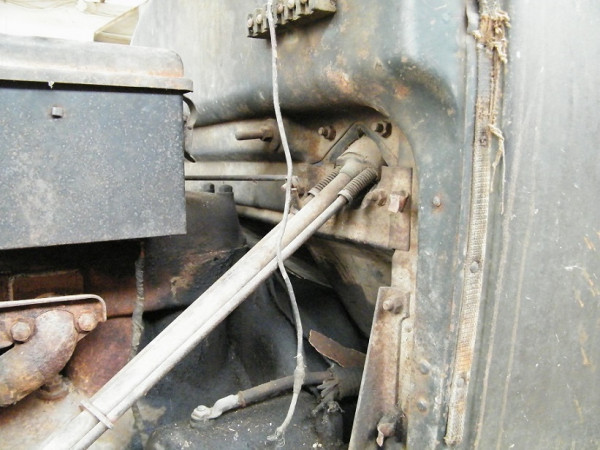

No hook like an A. Been a while, but recall slipping in a piece of busted hack saw blade or something as the backing bar to force the split tangs of the rivet to seat on the backside. Those lower holes are a bear, the others are OK, if you have the gas tank out!
Think I used an ice pick to make the hole a bit bigger and spread the tangs just so, before insertion, that helped them spread open. Have Fun!
Think I used an ice pick to make the hole a bit bigger and spread the tangs just so, before insertion, that helped them spread open. Have Fun!
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
dmdeaton
Topic author - Posts: 732
- Joined: Mon Oct 21, 2019 9:43 pm
- First Name: Danny
- Last Name: Deaton
- Location: Ohio
Re: Cowl lacing 26/27
I found some earlier posts on this. You replied then. My fuel tank is out. A couple fellows said they used pop rivets
-
John kuehn
- Posts: 4433
- Joined: Sun Jan 06, 2019 8:00 pm
- First Name: John
- Last Name: Kuehn
- * REQUIRED* Type and Year of Model Ts owned: 19 Roadster, 21 Touring, 24 Coupe
- Location: Texas
Re: Cowl lacing 26/27
That probably was a job that the Ford line guys did before the body parts all came together so you could have nothing in the way to put the rivets through the lacing.
-
dmdeaton
Topic author - Posts: 732
- Joined: Mon Oct 21, 2019 9:43 pm
- First Name: Danny
- Last Name: Deaton
- Location: Ohio
Re: Cowl lacing 26/27
John
I agree
Even with the dashboard and fuel tank out it’s a bear. I am glad I started to tackle this before I mounted the fuel tank and dash. I never gave it a thought, usually I’m the one doing things 3 or 4 times to get it done.
I agree
Even with the dashboard and fuel tank out it’s a bear. I am glad I started to tackle this before I mounted the fuel tank and dash. I never gave it a thought, usually I’m the one doing things 3 or 4 times to get it done.
-
dmdeaton
Topic author - Posts: 732
- Joined: Mon Oct 21, 2019 9:43 pm
- First Name: Danny
- Last Name: Deaton
- Location: Ohio
Re: Cowl lacing 26/27
Right or wrong I got it done
1/8 inch pop rivets with washers on the backside
1/8 inch pop rivets with washers on the backside
