Was it ever a stock part?

Post by Steve Jelf » Thu Mar 07, 2019 1:31 pm

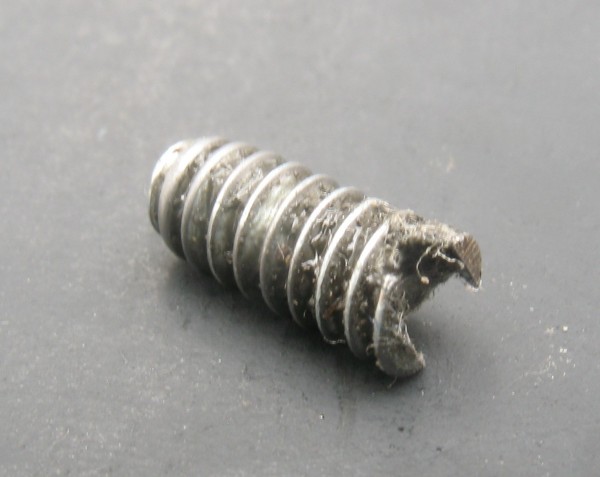

Yes, I know it's supposed to be a regular round head machine screw. But this is the second steering gear case I've found with a headless set screw. That makes me wonder if they tried these for awhile.

IMG_2646 copy.JPG
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

George N Lake Ozark
Posts: 224
Joined: Sun Jan 06, 2019 2:15 pm
First Name: George P
Last Name: Clipner
Location: LakeOzark,Missourah
MTFCI Number: 18665

Re: Was it ever a stock part?

Post by George N Lake Ozark » Thu Mar 07, 2019 2:00 pm

I've got one of those I haven't removed yet . Need a spare ??

User avatar

TFan
Posts: 152
Joined: Sun Jan 06, 2019 2:24 pm
First Name: Jim
Last Name: Riedy
Location: Sandusky,Ohio
MTFCA Number: 25079
MTFCI Number: 18732
Board Member Since: 2005

Re: Was it ever a stock part?

Post by TFan » Thu Mar 07, 2019 2:24 pm

Steve, That is what my 26 had in it when I tore into the column several years ago it appeared stock so I replaced with same. Jim
Back road kinda guy stuck on the freeway of life.


Scott_Conger
Posts: 2714
Joined: Sun Jan 06, 2019 11:18 am
First Name: Scott
Last Name: Conger
Location: Clark, WY
Board Member Since: 2005

Re: Was it ever a stock part?

Post by Scott_Conger » Thu Mar 07, 2019 6:07 pm

Prior to about 1970 or so, any machinist worth his salt would know that a slotted headless screw would typically be used where neither part has a through hole such as in this situation, pulley securing, etc.. In the face of no documentary evidence, ever, (to my knowledge) of this being on a Ford drawing, I would suggest that (in my opinion) it is an early non-Ford replacement for the frequently missing screw.

I have seen slotted, headless screws in gearboxes, too, and in every instance, the slot was very wide, like made by hand with a saw (something like in the photo above), and never looked like a properly fabricated part .
Scott Conger

Full Flow Float Valves - deliver fuel like Henry intended!


Allan
Posts: 1560
Joined: Sun Jan 06, 2019 7:21 pm
First Name: Allan
Last Name: Bennett
Location: Gawler, Australia

Re: Was it ever a stock part?

Post by Allan » Thu Mar 07, 2019 6:13 pm

FWIW, that screw has much coarser thread than the usual item. I would hazzard a guess that it is indeed a later replacement, perhaps even oversized to make up for stripped threads in the housing.

Allan from down under.

User avatar

DanTreace
Posts: 1482
Joined: Sun Jan 06, 2019 10:56 am
First Name: Dan
Last Name: Treace
Location: North Central FL
MTFCA Number: 4838
MTFCI Number: 115
Contact:

Re: Was it ever a stock part?

Post by DanTreace » Thu Mar 07, 2019 8:36 pm

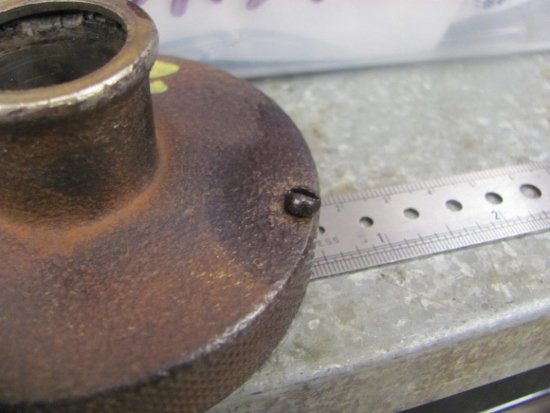

Agreed. Ford part # 3505 is a roundhead machine screw. Anything else is a spurious part!
IMG_8317 (580x435) (550x413).jpg
IMG_8317 (580x435) (550x413).jpg (35.43 KiB) Viewed 2174 times
IMG_8316 (580x434).jpg
IMG_8316 (580x434).jpg (46.18 KiB) Viewed 2174 times
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford


Original Smith
Posts: 1567
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Was it ever a stock part?

Post by Original Smith » Thu Mar 07, 2019 9:20 pm

That little screw is easy to come by, but if you compare it to an original, you will see the diameter of the head on a new screw is larger than the originals. I always turn down that diameter to that of an original. Not only that, it looks better.

User avatar

Topic author
Steve Jelf
Posts: 2893
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
Location: Parkerfield, Kansas
MTFCA Number: 16175
MTFCI Number: 14758
Board Member Since: 2007
Contact:

Re: Was it ever a stock part?

Post by Steve Jelf » Thu Mar 07, 2019 9:54 pm

I always turn down that diameter to that of an original.


To what size?

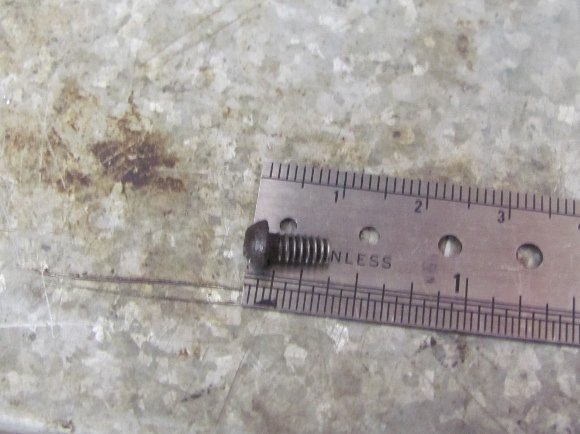

The little set screw is 6-32, not oversized. I was lucky to get it out before one of the "teeth" broke off. I've replaced it with a round head 6-32.
The inevitable often happens.
1915 Runabout
1923 Touring

User avatar

TFan
Posts: 152
Joined: Sun Jan 06, 2019 2:24 pm
First Name: Jim
Last Name: Riedy
Location: Sandusky,Ohio
MTFCA Number: 25079
MTFCI Number: 18732
Board Member Since: 2005

Re: Was it ever a stock part?

Post by TFan » Fri Mar 08, 2019 12:11 am

Would they have been raven or nickel depending on what year you have? Jim
Back road kinda guy stuck on the freeway of life.


Rich Bingham
Posts: 1253
Joined: Sun Jan 06, 2019 11:23 am
First Name: Rich
Last Name: Bingham
Location: Blackfoot, Idaho

Re: Was it ever a stock part?

Post by Rich Bingham » Fri Mar 08, 2019 8:08 am

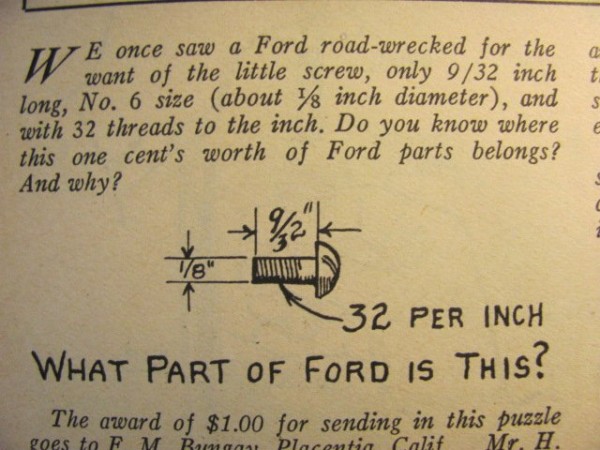

Dan, what publication did that puzzle appear in, and when ? It would be a treat to see more ! (Maybe some of us could earn that $1.00 prize ! :D )
"Get a horse !"


Original Smith
Posts: 1567
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
Location: Lomita, California
MTFCA Number: 121
MTFCA Life Member: YES
MTFCI Number: 16310

Re: Was it ever a stock part?

Post by Original Smith » Fri Mar 08, 2019 10:25 am

Steve:
I've never measured the head diameter. I just put the new screw in the chuck in my drill press and file it until it looks the same as a stock one. For those with nickel steering covers, I use a stainless screw, which matches perfectly. Ford never did raven finish those screws to my knowledge.
