Kill switch

Post by BobShirleyAtlantaTx » Tue Mar 09, 2021 3:25 pm

Is it ok to ground the mag to kill the motor on the test stand?
Top

Jim Sims
Posts: 181
Joined: Sun Jan 06, 2019 12:38 pm
First Name: Jim
Last Name: Sims
* REQUIRED* Type and Year of Model Ts owned: 17 touring 20 roadster 21coupe 25tudor 25 pickup 27 coupe
Location: Reed City, MI

Re: Kill switch

Post by Jim Sims » Tue Mar 09, 2021 3:44 pm

Should be fine. about 90 percent of all mags are shut off by grounding them.
Top
User avatar

Humblej
Posts: 1957
Joined: Sun Jan 06, 2019 12:23 pm
First Name: Jeff
Last Name: Humble
* REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
Location: Charlevoix, Mi
Board Member Since: 2006

Re: Kill switch

Post by Humblej » Tue Mar 09, 2021 4:52 pm

You would do better to shut it down by leaning out the mixture at the carb and leave the mag alone.
Top

speedytinc
Posts: 4726
Joined: Fri Feb 12, 2021 12:24 pm
First Name: john
Last Name: karvaly
* REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
Location: orange, ca
Board Member Since: 2020

Re: Kill switch

Post by speedytinc » Tue Mar 09, 2021 5:08 pm

Pull choke full on. if you dont want to lose your carburator adjustment.
Top
User avatar

Corey Walker
Posts: 637
Joined: Sun Jan 06, 2019 11:46 am
First Name: Corey
Last Name: Walker
* REQUIRED* Type and Year of Model Ts owned: 1914 runabout, 1921 homemade truck, 1921 Speedster
Location: Brownsboro, TX
Board Member Since: 2007

Re: Kill switch

Post by Corey Walker » Tue Mar 09, 2021 5:43 pm

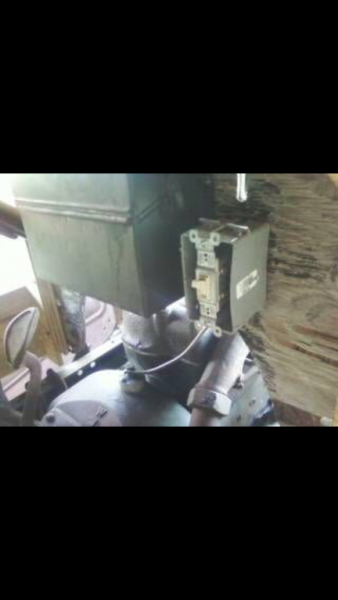

I never use a battery so before I found a coil box with a switch on the front, i ran a wire from the mag post to a house light switch to turn it on and off.
Attachments
Corey Walker, Brownsboro, Texas
Top

Dan Hatch
Posts: 5018
Joined: Tue Jan 08, 2019 7:31 pm
First Name: Dan
Last Name: Hatch
Location: Alabama

Re: Kill switch

Post by Dan Hatch » Tue Mar 09, 2021 5:55 pm

Find a single pole double throw switch and you can run mag or battery. Dan
Top

kmatt2
Posts: 655
Joined: Wed Jun 17, 2020 1:41 pm
First Name: Kevin
Last Name: Matthiesen
* REQUIRED* Type and Year of Model Ts owned: 26 T Coupe, 16 T Open Express, 21 TT Flatbed. 15 T Roadster, 13 & 25 T Speedster’s,51 Mercury 4 door sport sedan, 67 Mercury Cougar
Location: Madera CA 93636

Re: Kill switch

Post by kmatt2 » Tue Mar 09, 2021 10:24 pm

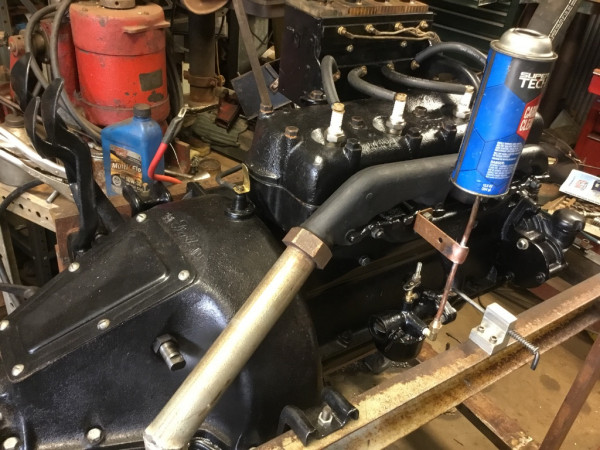

I see that you are set up to kill the mag to the back of the engine. That may be ok, but for a more positive shut down I would just use a alligator clip at the mag post to attach the coil box wire to the mag post. For shit down just unclipt the wire from mag post. The original Ford switch was, on / off, not mag to ground.
Top
User avatar

HalSched
Posts: 180
Joined: Tue Jan 08, 2019 8:13 pm
First Name: Hal
Last Name: Schedler
* REQUIRED* Type and Year of Model Ts owned: 24 Speedster, 23 RA, 25 Fordor
Location: Sacramento
Board Member Since: 2005

Re: Kill switch

Post by HalSched » Tue Mar 09, 2021 11:28 pm

Don't ever allow battery current (DC) to go to the magnito post. Just break the circuit to kill the engine
