Didn't know I had 'em.

Post by Steve Jelf » Mon Mar 15, 2021 9:22 pm

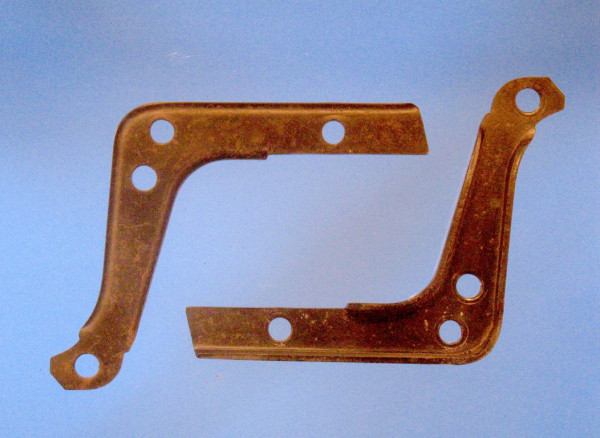

I was in the barn this afternoon looking through stuff to take to Chickasha, and found these. I know there are sturdier ones, but these are better than nothing.

IMG_5914 copy.JPG
No, I'm not selling them. I intend to use them.
The inevitable often happens.
1915 Runabout
1923 Touring
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Didn't know I had 'em.

Post by RajoRacer » Mon Mar 15, 2021 10:21 pm

Those appear to be originals, Steve - all 4 dip pans should use/have them. I have several extra sets.
Top
User avatar

Mark Gregush
Posts: 5370
Joined: Sat Jan 05, 2019 1:57 pm
First Name: Mark
Last Name: Gregush
* REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
Location: Portland Or
Board Member Since: 1999

Re: Didn't know I had 'em.

Post by Mark Gregush » Tue Mar 16, 2021 12:11 am

Does not hurt to put them on 3 dip pans too!
I know the voices aren't real but damn they have some good ideas! :shock:

1925 Cut down pickup
1948 Ford F2 pickup
Top

Kerry
Posts: 1447
Joined: Mon Jan 07, 2019 2:42 pm
First Name: Frank
Last Name: van Ekeren
* REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
Location: Rosedale Vic Australia

Re: Didn't know I had 'em.

Post by Kerry » Tue Mar 16, 2021 1:23 am

Don't know if just a Canadian thing but the only ones I've come across are spot welded to the pan.
Top

MWalker
Posts: 475
Joined: Fri Jan 04, 2019 9:49 am
First Name: Mike
Last Name: Walker
* REQUIRED* Type and Year of Model Ts owned: 1916 Roadster Pickup
Location: NW Arkansas
MTFCA Life Member: YES

Re: Didn't know I had 'em.

Post by MWalker » Tue Mar 16, 2021 9:56 am

Those won't fit with an early (crocodile-nose) pan. So if you want to use some, you'll need to get the repops and grind a little off the width of them.
Top
User avatar

Topic author
Steve Jelf
Posts: 7237
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:
Contact Steve Jelf

Re: Didn't know I had 'em.

Post by Steve Jelf » Tue Mar 16, 2021 10:22 am

Those won't fit with an early (crocodile-nose) pan.

I have some others that will fit the 1915. These will go on the 1923.
The inevitable often happens.
1915 Runabout
1923 Touring
Top

Original Smith
Posts: 3699
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: Didn't know I had 'em.

Post by Original Smith » Tue Mar 16, 2021 11:48 am

I have them on all my cars. Early and late. To fit the early pans, I just file the holes, and the edges to fit the early pans.
Top
User avatar

George House
Posts: 2814
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
* REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
Location: Northern Caldwell County TX
MTFCA Life Member: YES
Board Member Since: 1999

Re: Didn't know I had 'em.

Post by George House » Tue Mar 16, 2021 1:01 pm

I’ve used originals on my ‘14. Just had to abide by my restoration motto: Grind em to shape. File em to fit. And paint em to match...
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT 🤔
Top

It's Bill
Posts: 279
Joined: Mon Jan 07, 2019 6:41 pm
First Name: Bill
Last Name: Hoffer
Location: Mars, PA
Board Member Since: 2016

Re: Didn't know I had 'em.

Post by It's Bill » Wed Mar 17, 2021 8:21 am

Newbie question: what is the advantage of using these reinforcements? Bill
Top
User avatar

Topic author
Steve Jelf
Posts: 7237
Joined: Fri Jan 04, 2019 9:37 pm
First Name: Steve
Last Name: Jelf
* REQUIRED* Type and Year of Model Ts owned: 1923 touring and a few projects
Location: Parkerfield, Kansas
Board Member Since: 2007
Contact:
Contact Steve Jelf

Re: Didn't know I had 'em.

Post by Steve Jelf » Wed Mar 17, 2021 11:01 am

...what is the advantage of using these reinforcements?

They stiffen the engine/hogshead "joint" on the pan to resist bending it at that point. The 26-27 cars have the hogshead bolted to the block for the same reason.
The inevitable often happens.
1915 Runabout
1923 Touring
Top
User avatar

George House
Posts: 2814
Joined: Sun Jan 06, 2019 5:25 pm
First Name: George
Last Name: House
* REQUIRED* Type and Year of Model Ts owned: ‘10 Maxwell AA, ‘11Hupp Model 20, Two 1914 Ford runabouts, 19 centerdoor, 25 C Cab,26 roadster
Location: Northern Caldwell County TX
MTFCA Life Member: YES
Board Member Since: 1999

Re: Didn't know I had 'em.

Post by George House » Wed Mar 17, 2021 11:28 am

Basically its to preclude a broken crankshaft. Does so by ‘resist Bending’ of the block and tranny cover as Steve stated..
A Fine is a Tax for Doing Something Wrong….A Tax is a Fine for Doing Something RIGHT 🤔
Top
User avatar

RajoRacer
Posts: 5171
Joined: Sun Jan 06, 2019 12:18 pm
First Name: Steve
Last Name: Tomaso
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1919 Centerdoor, 1924 TT C-Cab Express, 1925 Racer
Location: Longbranch, WA
Board Member Since: 2001

Re: Didn't know I had 'em.

Post by RajoRacer » Wed Mar 17, 2021 12:50 pm

I believe the original purpose for theses was when Ford came out with the 4 dip pan which decreased a considerable amount of metal & strength from the radius rod socket area.
Top

Original Smith
Posts: 3699
Joined: Tue Jan 08, 2019 10:43 am
First Name: Larry
Last Name: Smith
* REQUIRED* Type and Year of Model Ts owned: 13 Touring, 13 Roadster, 17 Coupelet, 25 Roadster P/U
Location: Lomita, California
MTFCA Life Member: YES

Re: Didn't know I had 'em.

Post by Original Smith » Wed Mar 17, 2021 7:33 pm

Early pans tend to crack in that area.
Top

Joe Bell
Posts: 1174
Joined: Thu Feb 21, 2019 1:20 pm
First Name: Joe
Last Name: Bell
* REQUIRED* Type and Year of Model Ts owned: 24 Fordor
Location: Tiffin Ohio

Re: Didn't know I had 'em.

Post by Joe Bell » Wed Mar 17, 2021 9:43 pm

Kerry, they are spot welded on all Canadian pans along with the horse shoes inside the pan.
Top

Kerry
Posts: 1447
Joined: Mon Jan 07, 2019 2:42 pm
First Name: Frank
Last Name: van Ekeren
* REQUIRED* Type and Year of Model Ts owned: 1916 touring, 1916 pick-up, 1924 coupe, 1926 touring, 1927 touring
Location: Rosedale Vic Australia

Re: Didn't know I had 'em.

Post by Kerry » Wed Mar 17, 2021 10:19 pm

Joe, I'd have to say I've never come across the horse shoes being spot welded.
