ID Pinion Gear?

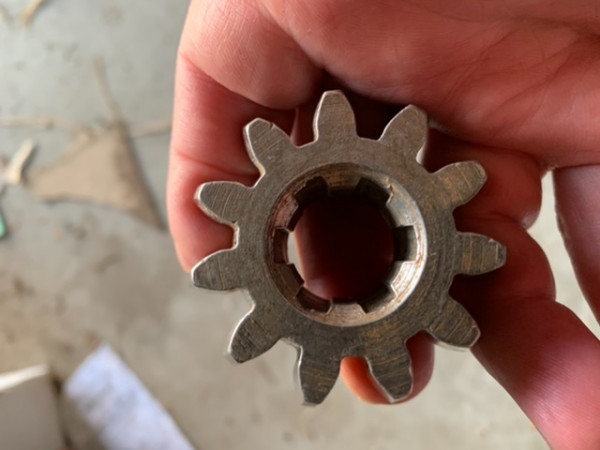

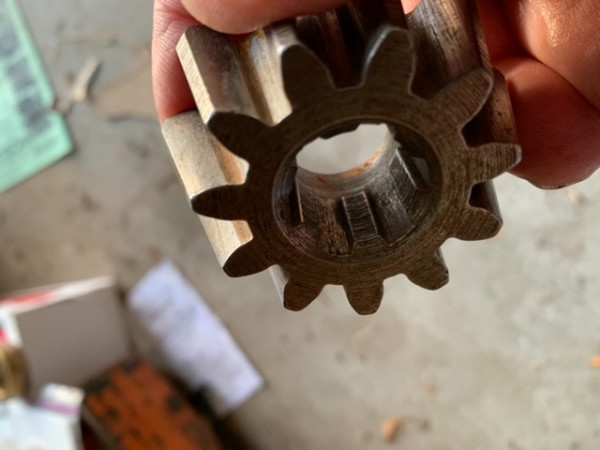

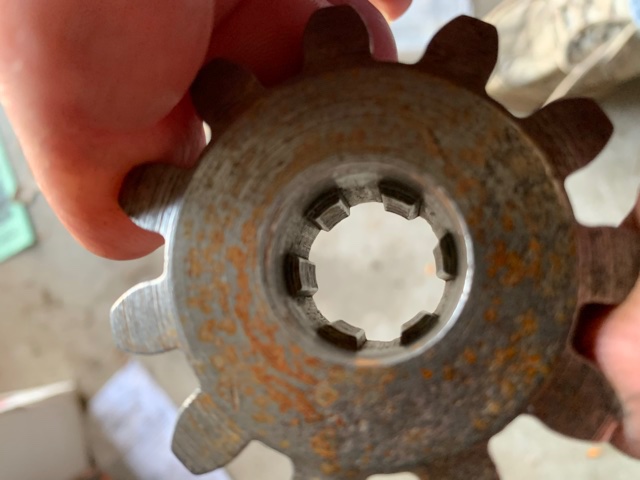

Does anyone know what this pinion gear fits? Same size as T but has straight ID with splines. Any idea? Thanks Dan
-
Dennis_Brown
- Posts: 245
- Joined: Wed Jan 09, 2019 10:14 pm
- First Name: Dennis
- Last Name: Brown
- * REQUIRED* Type and Year of Model Ts owned: 1926 Roadster pickup
- Location: Spring Hill Fl
Re: ID Pinion Gear?
That does not appear to be a pinion gear for a differential as the teeth are not tapered as in a ring and pinion set. The drive shaft end should be a larger diameter as a ring gear has shorter teeth on the outside and taller teeth at the inside diameter. It is possible your gear is from a transmission but not sure.
-
Dan Hatch
Topic author - Posts: 5018
- Joined: Tue Jan 08, 2019 7:31 pm
- First Name: Dan
- Last Name: Hatch
- Location: Alabama
Re: ID Pinion Gear?

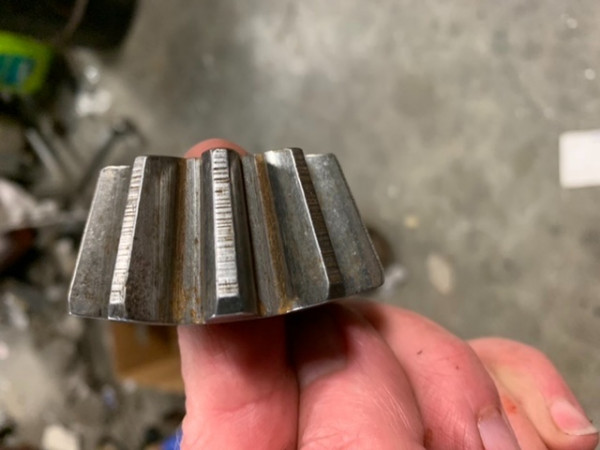

Here is side view
