Oiling cups
23T..Tie Rod lever oil cups. I am missing the cap off one of my oil cups. It sure looks like there is a hex at the bottom, and it would screw out. But, all the oilers I see are press in. Are they all press in type? Thanks..Tommy
-
jiminbartow
- Posts: 2434
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: Oiling cups

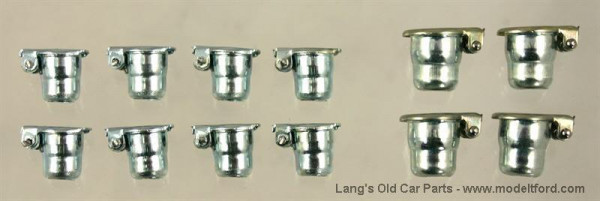

I believe the oilers with the spring loaded cap are tap in. While the oilers (grease cups) with the screw on top are screw in. Jim Patrick
-
tommyleea
Topic author - Posts: 151
- Joined: Thu Sep 24, 2020 3:11 pm
- First Name: Tommy
- Last Name: Russell
- Location: Missouri
Re: Oiling cups
Thanks..I will have to double check mine now..jiminbartow wrote: ↑Sat May 22, 2021 4:03 pmI believe the oilers with the spring loaded cap are tap in. While the oilers (grease cups) with the screw on top are screw in. Jim Patrick
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: Oiling cups

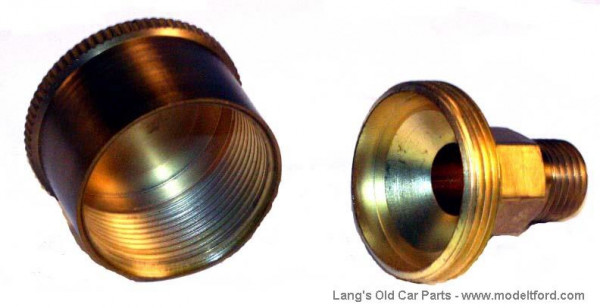

Yes, the flip top cups press in. The screw on cups have a threaded base as well as the brass, knurled twist type shown here.
https://www.modeltford.com/i/c/2930001l.jpg
https://www.modeltford.com/i/c/2930001l.jpg
When did I do that?
-
tommyleea
Topic author - Posts: 151
- Joined: Thu Sep 24, 2020 3:11 pm
- First Name: Tommy
- Last Name: Russell
- Location: Missouri
Re: Oiling cups
Thanks.It looks like the hex I am seeing is actually the bolt head, and the oiler presses into the bolt head. Is this correct? ThanksRich Eagle wrote: ↑Sat May 22, 2021 4:26 pmYes, the flip top cups press in. The screw on cups have a threaded base as well as the brass, knurled twist type shown here.
https://www.modeltford.com/i/c/2930001l.jpg
-
jiminbartow
- Posts: 2434
- Joined: Sun Jan 06, 2019 10:55 pm
- First Name: James
- Last Name: Patrick
- * REQUIRED* Type and Year of Model Ts owned: 1926 Coupe
- Location: Bartow, FL
- Board Member Since: 2001
Re: Oiling cups
Can you post a photo? I’m not sure what you mean. If the inside of the hole is smooth, it is a press/tap in. If the inside of the hole is threaded, it should screw in. Jim Patrick
-
tommyleea
Topic author - Posts: 151
- Joined: Thu Sep 24, 2020 3:11 pm
- First Name: Tommy
- Last Name: Russell
- Location: Missouri
Re: Oiling cups
I will take some pictures tomorrow..jiminbartow wrote: ↑Sat May 22, 2021 9:38 pmCan you post a photo? I’m not sure what you mean. If the inside of the hole is smooth, it is a press/tap in. If the inside of the hole is threaded, it should screw in. Jim Patrick
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Oiling cups
Tommy

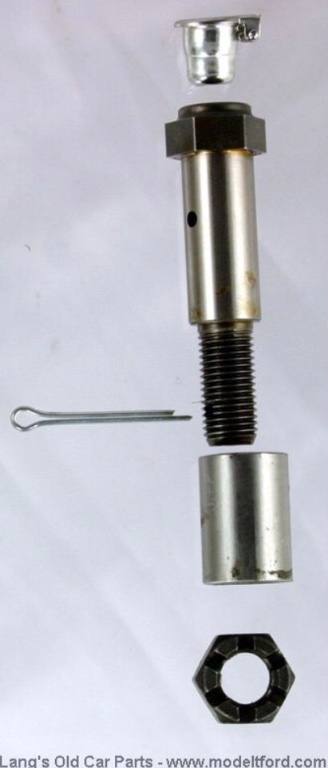

The 17-27 tie rod bolts and oilers look like this:
The 17-27 tie rod bolts and oilers look like this:
