Has anyone shortened the shift lever on a Layne Warford. If so what length is good,can it be done with out removing the shift assembly? This will make climbing in & out a bit easier.
Thanks in advance for your help.
John Monticciolo
Oscoda, Michigan
24 C Cab Truck
Layne Warford
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Layne Warford
John, I didn't shorten mine. I bent it back further and added about 6" so it nestles next to my knee. No reaching, no problems getting in.
Allan from down under.
Allan from down under.
-
Model T Mark
- Posts: 268
- Joined: Mon Jan 07, 2019 8:00 pm
- First Name: Mark
- Last Name: Eyre
- * REQUIRED* Type and Year of Model Ts owned: 1913 Touring 1914 Touring and Roadster 1915 Touring 1926 Roadster
- Location: Battle Creek Michigan
Re: Layne Warford
I did mine too 6 inches off. Put it in neutral unscrew the cap lift it up. Shorten it then reinstall. I did it on a 26-27 roadster pickup because I couldn’t get over it entering the car from the passenger side. The driver’s side is pretty useless with the spare in the way.
-
KeithG
- Posts: 722
- Joined: Thu Jan 03, 2019 3:00 pm
- First Name: Keith
- Last Name: Gumbinger
- * REQUIRED* Type and Year of Model Ts owned: '14 Touring, '26 RPU, '27 Fordor, '27 Touring
- Location: Kenosha, WI
- MTFCA Life Member: YES
- Board Member Since: 1999
Re: Layne Warford
I also have a Layne Warford in my '26 Roadster Pickup. I don't have a problem getting in or out on the right side, but when driving on a tour, the shift knob hits my right knee just right to be quite uncomfortable. I'm thinking of bending the shift lever about 2" to the right with the bend to be about 6" above the floor. Has anyone done something like this?
Other than that, I really like the Layne Warford!
Thanks,
Keith
Other than that, I really like the Layne Warford!
Thanks,
Keith
'14 Touring, '26 Roadster Pickup, '27 Fordor, '27 Touring
Motto: It's hard to build a garage that's tooooo big!
Motto: It's hard to build a garage that's tooooo big!
-
speedytinc
- Posts: 4726
- Joined: Fri Feb 12, 2021 12:24 pm
- First Name: john
- Last Name: karvaly
- * REQUIRED* Type and Year of Model Ts owned: 14/15 wide track roadster. 23 touring, 27 roadster pickup, 20ish rajo touring
- Location: orange, ca
- Board Member Since: 2020
Re: Layne Warford
I have seen the shifter as short as 8" on a speedster. Leave it high enough to comfortably shift on the fly.
-
Dennis Prince
- Posts: 397
- Joined: Sun Jan 06, 2019 2:36 pm
- First Name: Dennis
- Last Name: Prince
- * REQUIRED* Type and Year of Model Ts owned: 1)24 touring 2)25 TT's 1)26 roadster 2)26 tourings 1) 26coupe 1)27 funster 1)28 A pick up
- Location: Madras Oregon
- Board Member Since: 1999
Re: Layne Warford
I did shorten the shifter, I bought a car with a KC Warford in it that had been rolled and the reason that it rolled is because it got knocked into neutral because the shifter stuck up above the seat so I modified it so it no longer sticks way up there. One thing it does do is shorten the throw of the shifter and it takes a little getting use to.
-
Sarikatime
- Posts: 689
- Joined: Sun Jan 06, 2019 12:47 pm
- First Name: Frank
- Last Name: Seress
- * REQUIRED* Type and Year of Model Ts owned: 1912 Towncar, 1915 Touring
- Location: Prescott, Arizona
Re: Layne Warford

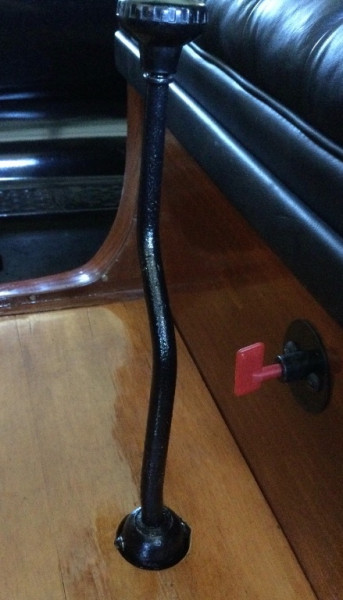

This is a cast iron warford that was always in my way. I heated the solid rod with the top bend first and then the lower bend about two inches to the right. It is still full height but easy to get in and out and not in my way. Frank
-
dobro1956
- Posts: 1413
- Joined: Sun Jan 06, 2019 10:13 pm
- First Name: Donnie
- Last Name: Brown
- * REQUIRED* Type and Year of Model Ts owned: 1927 Sport Touring, 1919 Speedster, 1914 Speedster, Wards tractor conversion, non starter 1926 Improved Touring
- Location: Hills of Arkansas
Re: Layne Warford

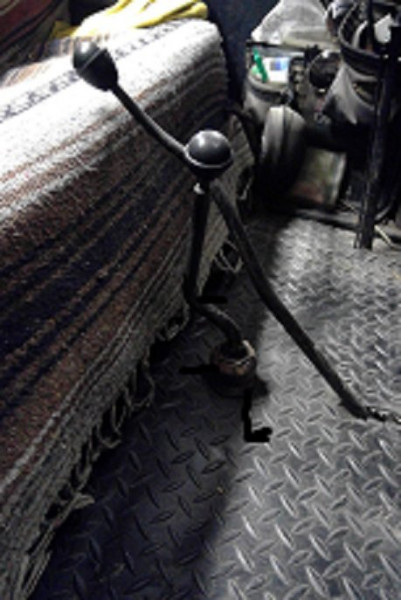

On my 27 touring I reversed the shifter in the housing. Just remove the shifter, turn it 180 degrees and re-install. It will fit either way. That makes it sit close to the seat. Then I shortened it so the top of the shift knob is at the top of seat cushion or slightly above it. Leave it just tall enough so you can use the palm of your hand to "bump shift" it and not hit the seat cushion with your hand and be low enough so you leg can slide over it when getting in or out of the car.. When I get out of the car my leg will slide "over" the shifter and it does not interfere with getting in or out. With the shift knob sitting close to, and protected by the seat cushion, there is less chance for it to get knocked out of gear by accident. It has worked very well for my 27 touring. You may need to slightly bend the shifter to get the knob to sit where you need it on different years or body styles. I just heated the shifter shaft with a torch and slightly bent it to be how I wanted it to sit when in second and third gear.
