I have 1919 Roadster than needs a proper wiring diagram. I'm attempting to make my own, but the differences from other non-starter cars makes it a bit confusing, as I have a steering wheel mounted horn/light switch and a coil box ignition as well, and I need better references. Any graphics will do.
I'm mainly confused about how the coil box ignition switch wires to the magneto and horn switch.
Need 1917-1919 Non-Starter Car Wiring Diagram
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
PaladinBirdy
Topic author - Posts: 23
- Joined: Tue Aug 17, 2021 10:11 am
- First Name: Josh
- Last Name: Hollingsworth
- * REQUIRED* Type and Year of Model Ts owned: 1919 Touring Pickup
- Location: Nashville, TN
- Board Member Since: 2021
Need 1917-1919 Non-Starter Car Wiring Diagram
A 'youngin.
-
Rich Eagle
- Posts: 6895
- Joined: Fri Jan 04, 2019 10:51 am
- First Name: Richard
- Last Name: Eagle
- * REQUIRED* Type and Year of Model Ts owned: 1909 TR 1914 TR 1915 Rd 1920 Spdstr 1922 Coupe 1925 Tudor
- Location: Idaho Falls, ID
Re: Need 1917-1919 Non-Starter Car Wiring Diagram

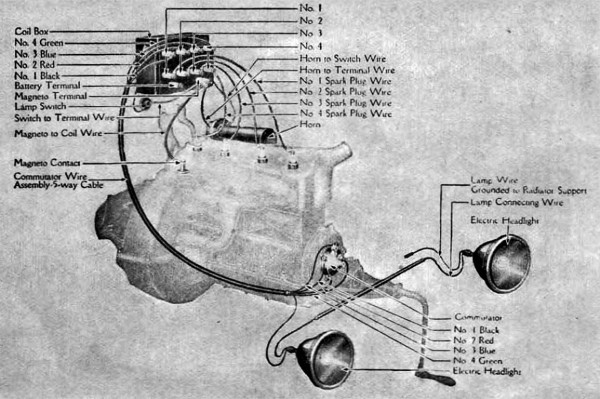

This is called a "Ford model t 1919 d023 ignition system" from Wikimedia.
https://commons.wikimedia.org/wiki/File ... system.png
This may be helpful too.
http://www.mtfca.com/discus/messages/59 ... 1471864393

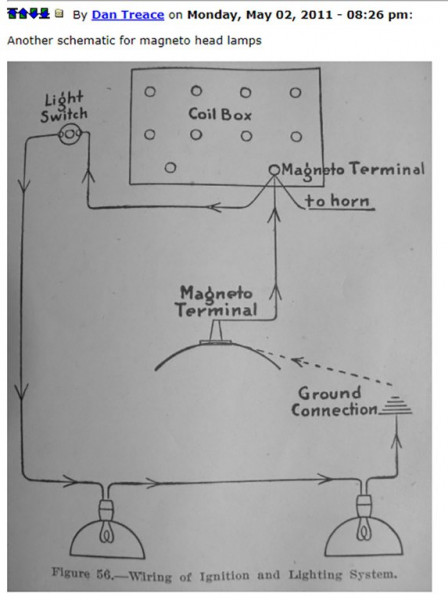

Also this from Dan.
This may be helpful too.
http://www.mtfca.com/discus/messages/59 ... 1471864393
Also this from Dan.
Last edited by Rich Eagle on Wed Aug 18, 2021 12:33 pm, edited 2 times in total.
When did I do that?
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Need 1917-1919 Non-Starter Car Wiring Diagram

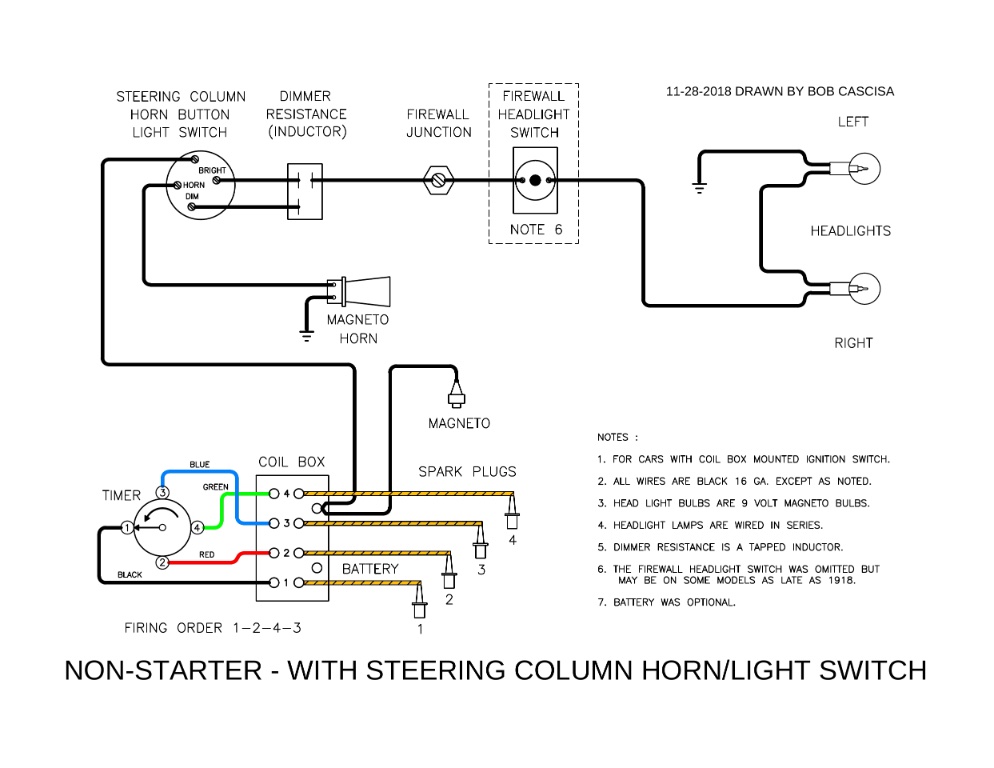

Here is the simplified diagram
click on image to enlarge
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
PaladinBirdy
Topic author - Posts: 23
- Joined: Tue Aug 17, 2021 10:11 am
- First Name: Josh
- Last Name: Hollingsworth
- * REQUIRED* Type and Year of Model Ts owned: 1919 Touring Pickup
- Location: Nashville, TN
- Board Member Since: 2021
Re: Need 1917-1919 Non-Starter Car Wiring Diagram
Thank y'all, big help. I managed to figure out the rest of it.
