I’m looking for a detailed picture of the horn button and wiring in the center of the steering column. Would prefer a picture of original car or a factory picture showing that particular detail. Anybody have anything that would show that detail?
Thanks!
Picture needed 20-23 Canadian horn button with wire.
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Model T Mark
Topic author - Posts: 268
- Joined: Mon Jan 07, 2019 8:00 pm
- First Name: Mark
- Last Name: Eyre
- * REQUIRED* Type and Year of Model Ts owned: 1913 Touring 1914 Touring and Roadster 1915 Touring 1926 Roadster
- Location: Battle Creek Michigan
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Picture needed 20-23 Canadian horn button with wire.
This thread has some photos of the parts stack to assemble that horn. Wires go thru the spider to the button, with enough wire length to allow the wheel to turn.
http://www.mtfca.com/discus/messages/50893/69100.html
Photo restored car.
http://www.mtfca.com/discus/messages/50893/69100.html
Photo restored car.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Picture needed 20-23 Canadian horn button with wire.

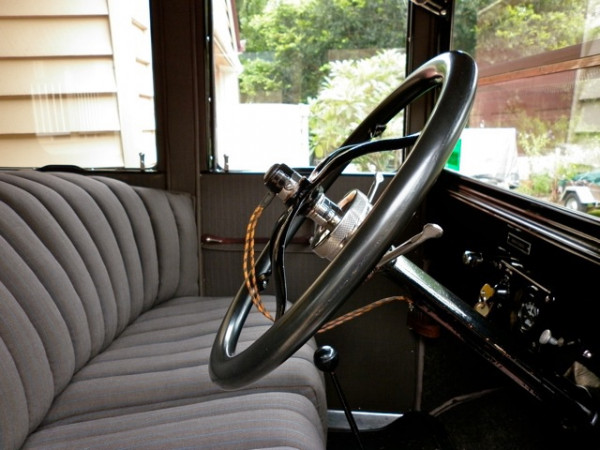

It might look a little dodgy, but it works. I put just a really short bit of black heat shrink on the wires as they enter the horn button, just to keep them together. In 50 years of T driving I have broken just one wire at the switch end. There's plenty there to hook it up again. The scarce part for you guys would be the nut to which the switch is mounted, that holds the steering wheel on.
