Auxiliary Transmission ID help needed

Post by Ed Fuller » Wed Sep 29, 2021 5:13 pm

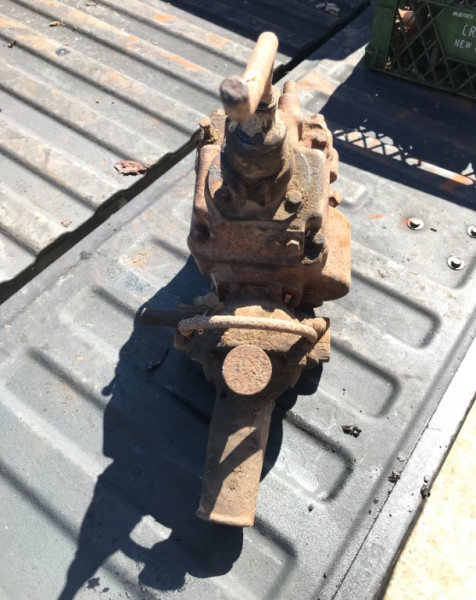

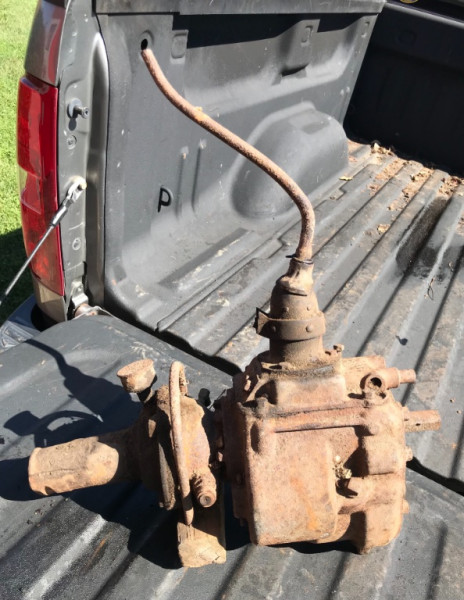

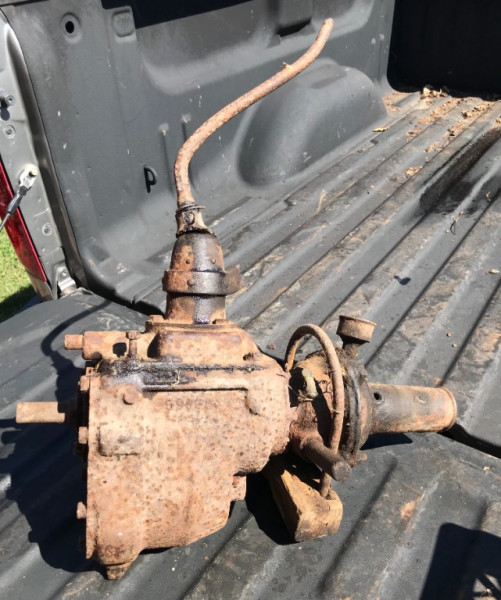

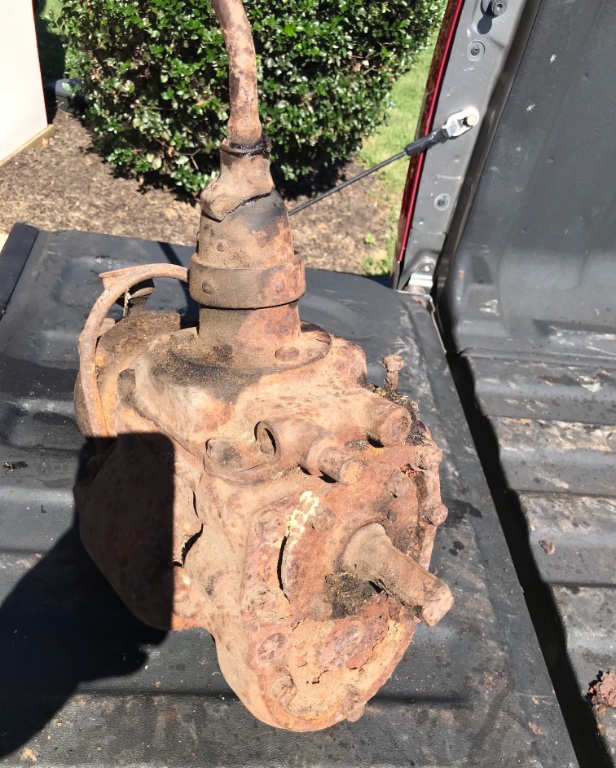

Digging through an estate collection of T parts and found this auxiliary transmission. I didn’t see any markings at a quick glance. Doesn’t look like a Warford but I’m no expert.

Anyone know what it is?
Top

ThreePedalTapDancer
Posts: 1631
Joined: Sun Nov 24, 2019 2:29 pm
First Name: Ed
Last Name: Martin
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1909 Touring
Location: Idaho

Re: Auxiliary Transmission ID help needed

Post by ThreePedalTapDancer » Wed Sep 29, 2021 6:31 pm

I believe that’s from a 1920s Star Automobile. They were often modified to fit a T back in the day.
Top

Wayne Sheldon
Posts: 4249
Joined: Sun Jan 06, 2019 3:13 pm
First Name: Wayne
Last Name: Sheldon
* REQUIRED* Type and Year of Model Ts owned: 1915 Runabout 1913 Speedster
Location: Grass Valley California, USA
Board Member Since: 2005

Re: Auxiliary Transmission ID help needed

Post by Wayne Sheldon » Thu Sep 30, 2021 2:24 am

Maybe that? Or possibly a 1928 (I believe?) Chevrolet had a 'U' shaped bell housing mount similar to that one. Either way, it wasn't originally for a model T. Such transmissions were often modified for use in model Ts, as auxiliaries or doodle bug down gearing. The square shaft on one end adapted easily to the model T. I have a similar one that was rather extravagantly modified to fit in a model T! I was told by a Chevrolet guy that it was from a 1928.
Top
User avatar

Henry K. Lee
Posts: 5474
Joined: Sun Jan 06, 2019 11:09 am
First Name: Henry
Last Name: Lee
* REQUIRED* Type and Year of Model Ts owned: Many
Location: South Pittsburg, TN
MTFCA Life Member: YES

Re: Auxiliary Transmission ID help needed

Post by Henry K. Lee » Thu Sep 30, 2021 7:21 am

Have to agree with Wayne, the bolt pattern on the front is definitely a 1928 Chevy.

Hank
Top

ThreePedalTapDancer
Posts: 1631
Joined: Sun Nov 24, 2019 2:29 pm
First Name: Ed
Last Name: Martin
* REQUIRED* Type and Year of Model Ts owned: 1914 Touring, 1909 Touring
Location: Idaho

Re: Auxiliary Transmission ID help needed

Post by ThreePedalTapDancer » Thu Sep 30, 2021 10:41 am

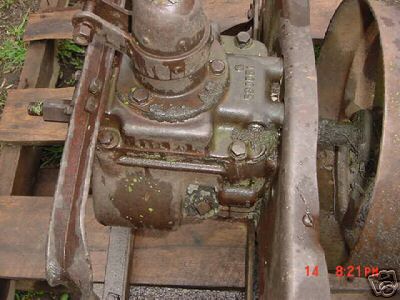

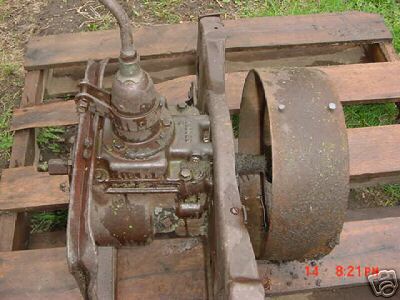

Here is another one discussed in 2005.

http://www.mtfca.com/discus/messages/29 ... 1180731566
Top
User avatar

Topic author
Ed Fuller
Posts: 786
Joined: Mon Jan 07, 2019 10:06 pm
First Name: Ed
Last Name: Fuller
Location: NJ
Board Member Since: 2012

Re: Auxiliary Transmission ID help needed

Post by Ed Fuller » Sat Oct 02, 2021 5:19 pm

Thank you everyone for your help!

It definitely looks like the one in the pictures from the post in 2005.

If anyone wants it, I’ll bring it to Hershey. It will be priced very reasonably!
Top
