Look normal?

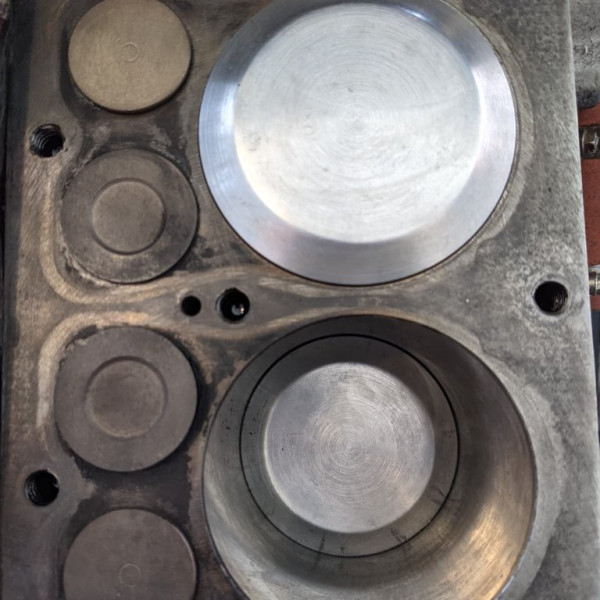

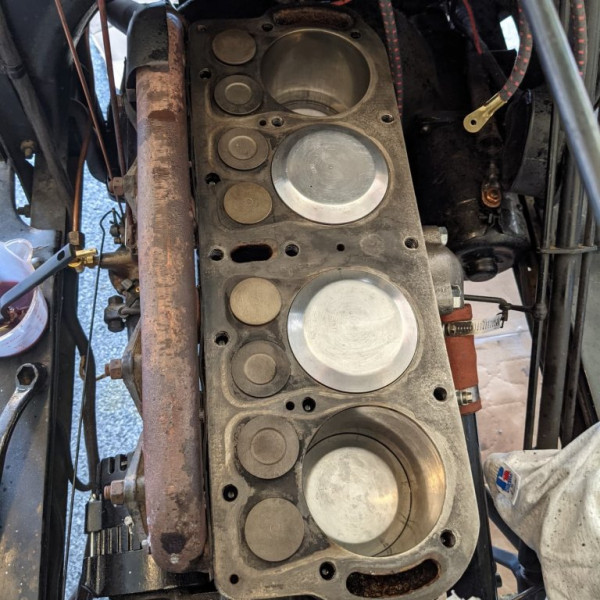

Cleaned up the engine to get ready for my Z head. Does everything look okay? I've never had my engine's head off before. Looks like some overhauled the engine at least before I got it.
- Attachments
-
-
-
-
Jerry VanOoteghem
- Posts: 4082
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
Re: Look normal?

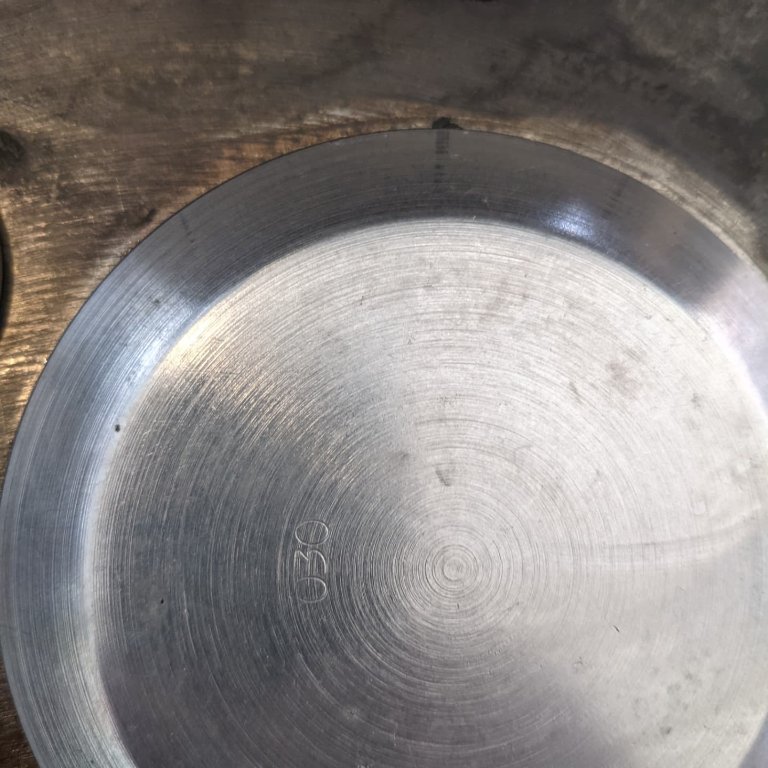

Looks like new pistons in old bores. By "old bores", I mean they do not look freshly honed as you would expect to see with new pistons. Do they look like new because you cleaned them up so well, or did they look like this when you removed the head? Have you ever run this engine?
-
Mark Chaffin
- Posts: 4343
- Joined: Sat Jan 12, 2019 12:11 pm
- First Name: Mark
- Last Name: Chaffin
- * REQUIRED* Type and Year of Model Ts owned: 1911 Speedster, 1927 Lake Roadster
- Location: Lake Elsinore
- Board Member Since: 2001
Re: Look normal?
Looks pretty good. Don't forget to clean out all the head bolt holes with a bottoming tap and air real good before assembly.
-
JBog
Topic author - Posts: 287
- Joined: Mon Jan 21, 2019 1:42 pm
- First Name: Jason
- Last Name: Bogstie
- * REQUIRED* Type and Year of Model Ts owned: 1919 Touring
- Location: Cheyenne, WY
- Board Member Since: 2019
- Contact:
Re: Look normal?

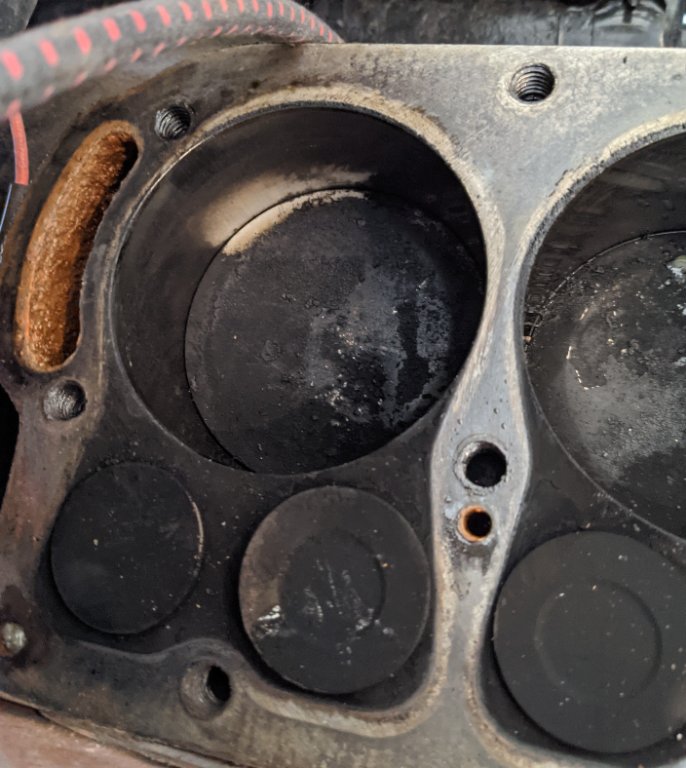

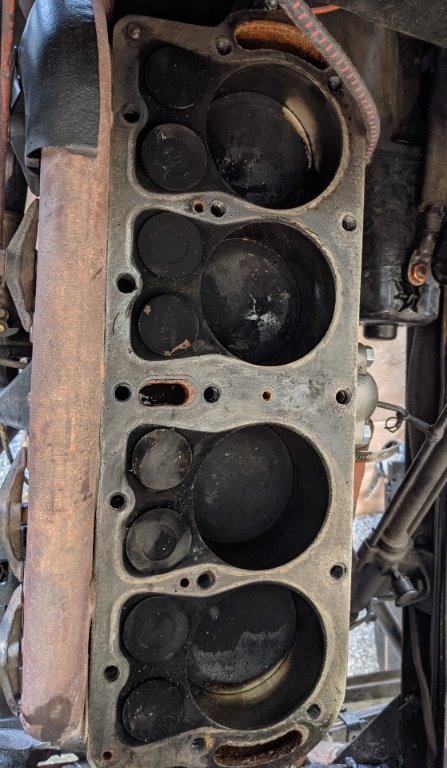

Yea, I've ran this engine as long as I've had the T, about 7 months. Here's some pics of what it looked like when I took the head off.Jerry VanOoteghem wrote: ↑Sun Oct 10, 2021 7:20 pmLooks like new pistons in old bores. By "old bores", I mean they do not look freshly honed as you would expect to see with new pistons. Do they look like new because you cleaned them up so well, or did they look like this when you removed the head? Have you ever run this engine?
- Attachments
-
-
-
JBog
Topic author - Posts: 287
- Joined: Mon Jan 21, 2019 1:42 pm
- First Name: Jason
- Last Name: Bogstie
- * REQUIRED* Type and Year of Model Ts owned: 1919 Touring
- Location: Cheyenne, WY
- Board Member Since: 2019
- Contact:
Re: Look normal?

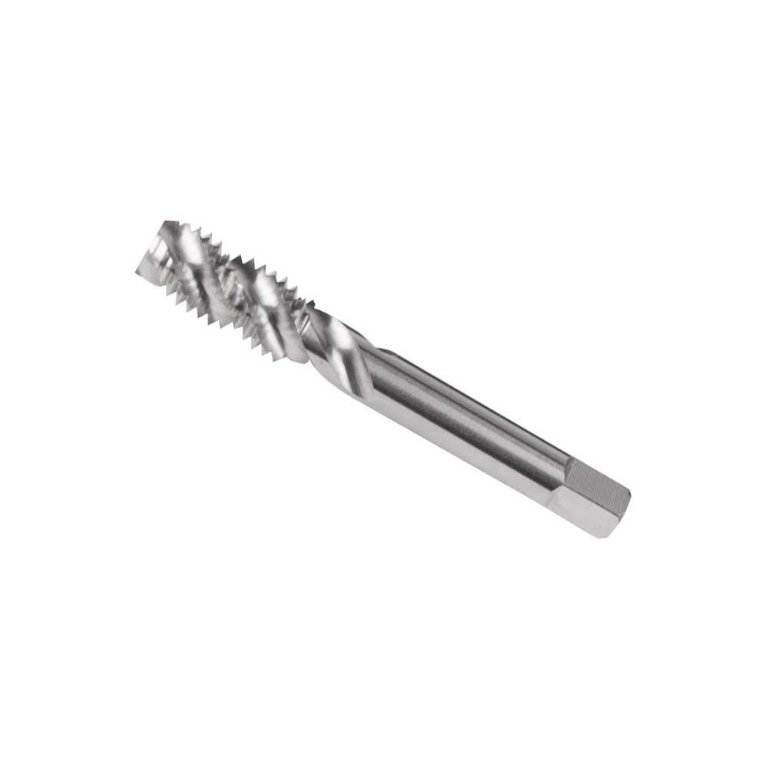

Thanks! What size bottoming tap?Mark Chaffin wrote: ↑Sun Oct 10, 2021 7:41 pmLooks pretty good. Don't forget to clean out all the head bolt holes with a bottoming tap and air real good before assembly.
-
Allan
- Posts: 6609
- Joined: Sun Jan 06, 2019 7:21 pm
- First Name: Allan
- Last Name: Bennett
- * REQUIRED* Type and Year of Model Ts owned: 1912 van, 1917 shooting brake, 1929 roadster buckboard, 1924 tourer, 1925 barn find buckboard, 1925 D &F wide body roadster, 1927LHD Tudor sedan.
- Location: Gawler, Australia
Re: Look normal?
You also have replacement one piece valves, so someone has definitely been in there before you. It looks good to go.
The tap size for the head bolt holes is 7/16" UNC.
Allan from down under.
The tap size for the head bolt holes is 7/16" UNC.
Allan from down under.
-
Henry K. Lee
- Posts: 5474
- Joined: Sun Jan 06, 2019 11:09 am
- First Name: Henry
- Last Name: Lee
- * REQUIRED* Type and Year of Model Ts owned: Many
- Location: South Pittsburg, TN
- MTFCA Life Member: YES
Re: Look normal?
7/16" X 14 NC thread.
-
JTT3
- Posts: 1855
- Joined: Sun Jan 06, 2019 11:57 am
- First Name: John
- Last Name: Tannehill
- Location: Hot Coffee, MS
Re: Look normal?
Hank my man, correct as usual!
-
mbowen
- Posts: 420
- Joined: Tue Aug 31, 2021 7:45 pm
- First Name: Miles
- Last Name: Bowen
- * REQUIRED* Type and Year of Model Ts owned: 1925 Express Wagon, 1924 Touring
- Location: Brighton, MI
- Board Member Since: 2021
Re: Look normal?
I just did mine today. I started with a standard tap, followed by a bottoming tap, then a 7/16 bronze bore brush. The bore brush got a noticeable of carbon even after the taps.JBog wrote: ↑Sun Oct 10, 2021 8:06 pmThanks! What size bottoming tap?Mark Chaffin wrote: ↑Sun Oct 10, 2021 7:41 pmLooks pretty good. Don't forget to clean out all the head bolt holes with a bottoming tap and air real good before assembly.
Miles
1924 Touring “Bonnie”
1925 Express Wagon “Clyde”
1924 Touring “Bonnie”
1925 Express Wagon “Clyde”
-
Mark Gregush
- Posts: 5370
- Joined: Sat Jan 05, 2019 1:57 pm
- First Name: Mark
- Last Name: Gregush
- * REQUIRED* Type and Year of Model Ts owned: 1925 cutdown PU, 1948 F2 Ford flat head 6 pickup 3 speed
- Location: Portland Or
- Board Member Since: 1999
Re: Look normal?
Just using a bottoming tap will not clean out the compacted carbon and guck at the bottom. The tap will do a great job of compacting it even more. I use a drill smaller than the diameter of the hole and gently break up what is in the bottom. Don't force it, or you will need to seal the bolt threads when you go through the bottom of the hole into the water jacket. Done both by hand or with drill motor running slow. Then vacuum out the leavings.
