I have a 22 model t and it seems the running board braces are bent . End to end they measure 59 1/2 inches
These closest I can find are 26 27 measurments are 62 inches . What is the best way to bend them ? Cold or heat them up ? Would 62 inches be the correct measurment ??
Thanks joe mac
Running board braces
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
DanTreace
- Posts: 3813
- Joined: Sun Jan 06, 2019 10:56 am
- First Name: Dan
- Last Name: Treace
- * REQUIRED* Type and Year of Model Ts owned: ‘12 open express,'23 cutoff, '27 touring
- Location: North Central FL
- Board Member Since: 2000
- Contact:
Re: Running board braces
Easy way is cold bend, just bend a bit more in the direction, as the steel will want to rebound to the prior shape.
What really matters is the height of the brackets from level surface or frame top, and the Center Line (CL) of the bracket ends, so that the running boards fit flush to these brackets at each hole.
Of course, a frame out of whack and twisted will affect the running board brackets and the running boards fit.

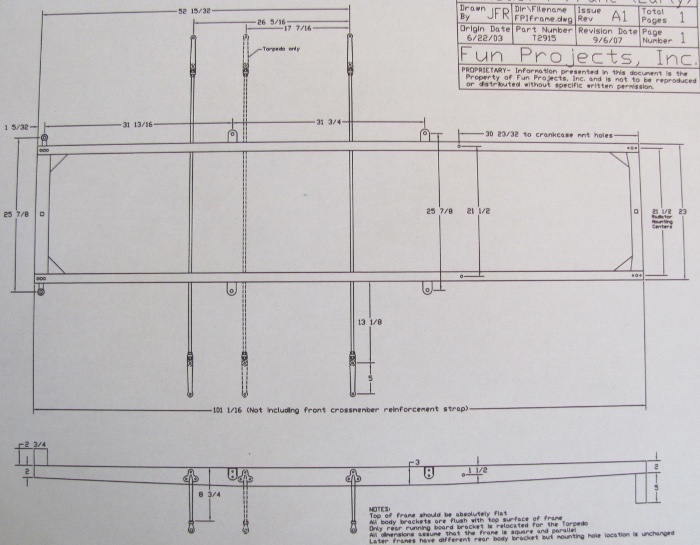

Earlier frame, but spacing of the brackets is the same.

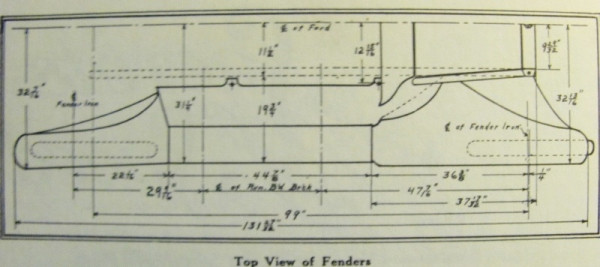

Approx '22 fender and bracket positions.
This sketch, out of focus some, but shows distance from CL of fender brackets too to the CL of each end of the running board brackets.
What really matters is the height of the brackets from level surface or frame top, and the Center Line (CL) of the bracket ends, so that the running boards fit flush to these brackets at each hole.
Of course, a frame out of whack and twisted will affect the running board brackets and the running boards fit.
Approx '22 fender and bracket positions.
The best way is always the simplest. The attics of the world are cluttered up with complicated failures. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
Don’t find fault, find a remedy; anybody can complain. Henry Ford
-
Humblej
- Posts: 1957
- Joined: Sun Jan 06, 2019 12:23 pm
- First Name: Jeff
- Last Name: Humble
- * REQUIRED* Type and Year of Model Ts owned: 1926 Canadian coupe, 1924 TT C-cab, 1924 runabout
- Location: Charlevoix, Mi
- Board Member Since: 2006
Re: Running board braces
Joe, I do not know about a '22 Canadian, but my '24 USA made measures in at about 59" end to end.
-
joemac
Topic author - Posts: 15
- Joined: Thu Jan 28, 2021 11:42 am
- First Name: Joe
- Last Name: Macintosh
- * REQUIRED* Type and Year of Model Ts owned: 27 touring 27 roadster pu 1919 touring
- Location: Brantford ontario
Re: Running board braces
59 seems tight for me ,and seems to be pulling on the fenders ,toward the body and cant mount the rear fenders . Thanks for the replies .
