- T overheaqd.jpg (41.96 KiB) Viewed 2303 times

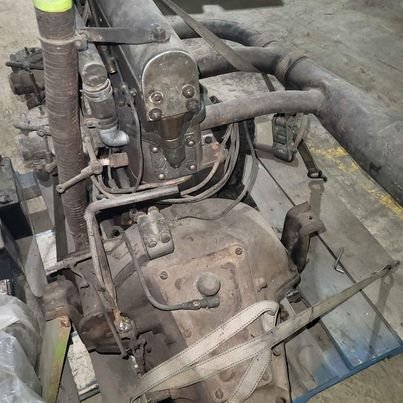

Not sure if this pic will show up. Would like to identify this OHC engine as to what set up it is.
OHC engine identification
Forum rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
If you need help logging in, or have question about how something works, use the Support forum located here Support Forum
Complete set of Forum Rules Forum Rules
-
Jim Eubanks
Topic author - Posts: 217
- Joined: Mon Jan 07, 2019 6:04 pm
- First Name: Jim
- Last Name: Eubanks
- * REQUIRED* Type and Year of Model Ts owned: 1926 touring, 1927 cpe
- Location: Powell, TN
OHC engine identification
[image][/image]
Not sure if this pic will show up. Would like to identify this OHC engine as to what set up it is.
Not sure if this pic will show up. Would like to identify this OHC engine as to what set up it is.
-
TonyB
- Posts: 663
- Joined: Fri Jan 04, 2019 11:15 am
- First Name: Tony
- Last Name: Bowker
- * REQUIRED* Type and Year of Model Ts owned: 1914 touring
- Location: La Mesa, CA
- MTFCA Life Member: YES
- Board Member Since: 2005
Re: OHC engine identification
Sure looks interesting. It doesn’t appear to be any of the overheads made commercially. I wonder if it was a custom locally built version?
The exhaust and ignition are in the right and intake appears to be on the left. What is that plate on the rear, seems to be for water???
The exhaust and ignition are in the right and intake appears to be on the left. What is that plate on the rear, seems to be for water???
Last edited by TonyB on Mon Jan 10, 2022 3:15 pm, edited 1 time in total.
Tony Bowker
La Mesa, California
1914 Touring, 1915 Speedster, 1924 Coupe.
La Mesa, California
1914 Touring, 1915 Speedster, 1924 Coupe.
-
Joe Bell
- Posts: 1174
- Joined: Thu Feb 21, 2019 1:20 pm
- First Name: Joe
- Last Name: Bell
- * REQUIRED* Type and Year of Model Ts owned: 24 Fordor
- Location: Tiffin Ohio
Re: OHC engine identification
I just had one of them finished, it went to Detroit area one of jerry Vanootegan friends? Sorry for the I am sure the wrong spelling of his name.
-
Jerry VanOoteghem
- Posts: 4082
- Joined: Sun Jan 06, 2019 4:06 pm
- First Name: Jerry
- Last Name: Van
- Location: S.E. Michigan
-
Tim Moore
- Posts: 97
- Joined: Sun Jan 06, 2019 6:08 pm
- First Name: TIMOTHY
- Last Name: MOORE
- * REQUIRED* Type and Year of Model Ts owned: As many as can fit in the buildings, need to add on again.
- Location: "Island City", MI
Re: OHC engine identification
Frontenac SR head with the left side spark plugs not installed and plugged off. The push rod holes for rocker arm style are also plugged (not necessary). Extra head bolt holes drilled on left under spark plug location. I don't like that they drilled the head on the left for water circulation. That plate on the back can't be for water as it goes into the cam tower and rack, probably was a support for an oil line going up to the cam via the bottom of the plate.
The lower case on the front would normally be at the level of the block but this one goes to the center of the head. The cam assembly seems unusually tall. The front oil pump looks to be a Green Engineering unit.
I am not sure if this is a mixture of overhead cam parts from another car or an "invention" but with what is also included I am sure it would already be in my collection if it wasn't a 12 hour drive each way.
The lower case on the front would normally be at the level of the block but this one goes to the center of the head. The cam assembly seems unusually tall. The front oil pump looks to be a Green Engineering unit.
I am not sure if this is a mixture of overhead cam parts from another car or an "invention" but with what is also included I am sure it would already be in my collection if it wasn't a 12 hour drive each way.
